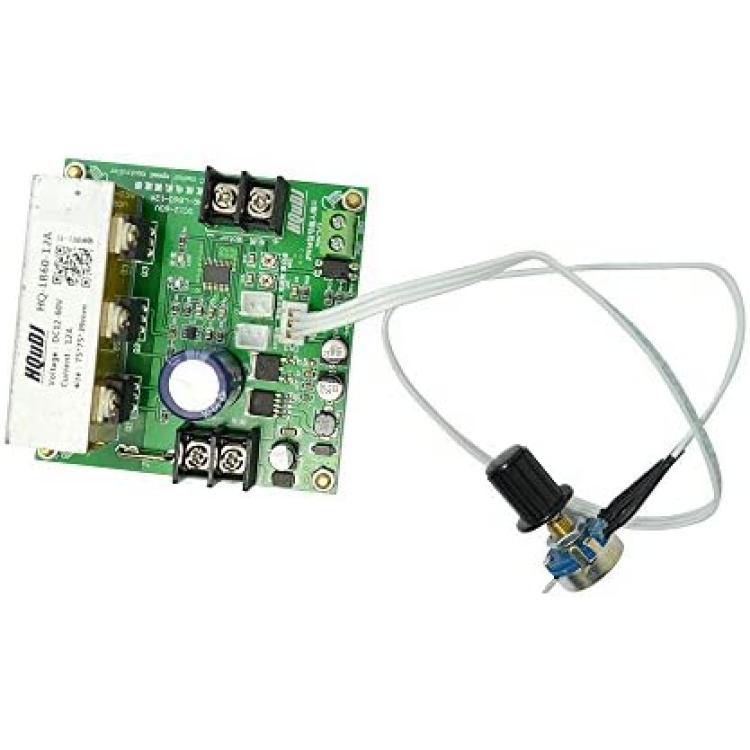

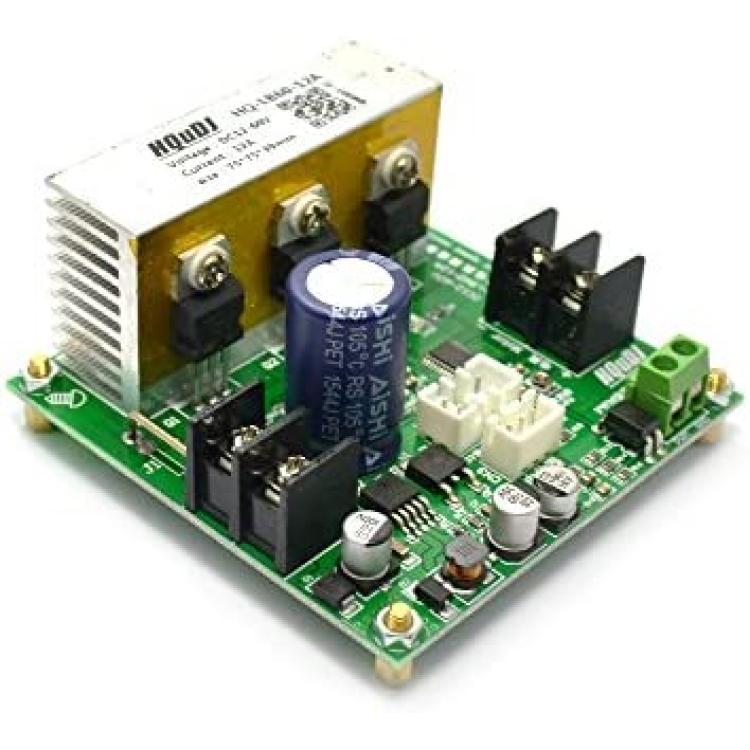

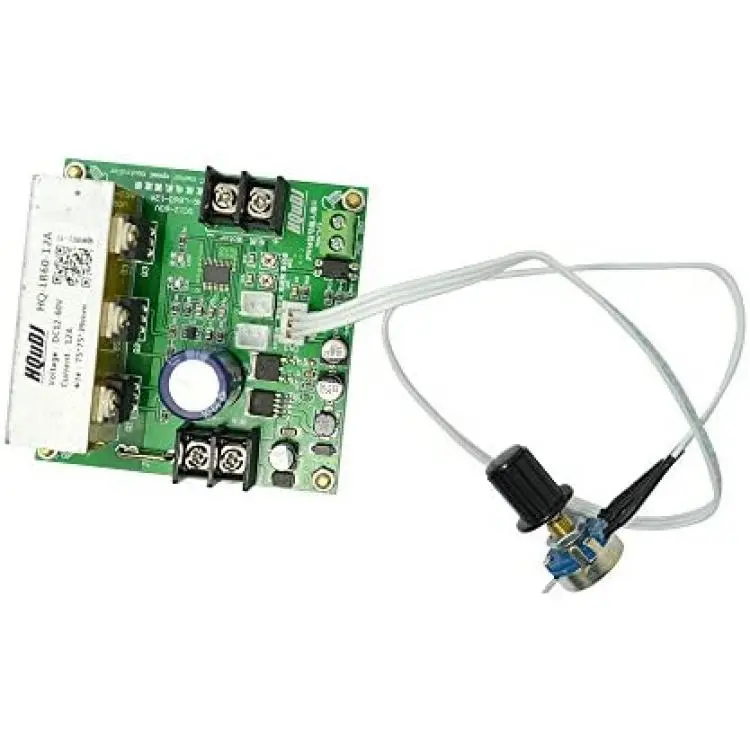

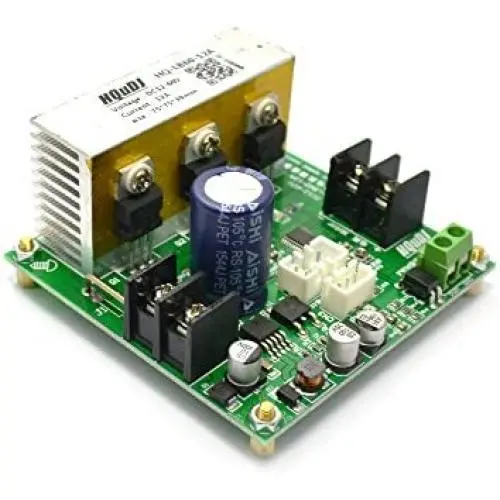

DC12-60V Wide Voltage PWM DC Brush Motor Speed Controller with MACH3 Control
About this product
*Operating voltage: ultra-wide voltage (DC) DC12V-DC60V (limit 65V)
*the default potentiometer control (5K-100K feasible) default value 10K;
*Rated current: 12A, overload short-circuit protection current 15A. (The over-current cut-off output, the over-current indicator flashes, the potentiometer return indicator is off, and over-current protection is removed)
*Control power: 12V140W, 24V280W, 36V400W, 48V550W, 60V700W
*Wide Voltage PWM DC Brush Motor Governor
Description
Wide Voltage PWM DCC: HQ-LB60-12A
Applicable to DC12-60V Low Voltage Permanent Magnet Brush DC Motor
a) Operating voltage: ultra-wide voltage (DC) DC12V-DC60V (limit 65V)
b) Control method:
1, the default potentiometer control (5K-100K feasible) default value 10K;
2, analog 0-5V control, (pull the XH2.54-3P potentiometer plug, the signal line to connect the XH2.54-3P middle leg, ground line to the XH2.54-3P right foot).
3, MACH3 interface terminals support external PWM signal input control speed, external PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle control speed, (Note external PWM signal control need to unplug the XH2 The .54-3P potentiometer plug control is in effect and cannot be controlled.)
C) Rated current: 12A, overload short-circuit protection current 15A. (The over-current cut-off output, the over-current indicator flashes, the potentiometer return indicator is off, and over-current protection is removed).
d) The soft start function prevents the motor from being damaged due to the excessive momentary starting current, (default 0 second soft start), 0-5 seconds adjustable.
Control power: 12V140W, 24V280W, 36V400W, 48V550W, 60V700W
Size: 75mm long * 75mm wide * 42mm high (including copper height, copper height 6mm)
Net weight: 0.12KG
Pulse Width Modulation Range: 0%-100%

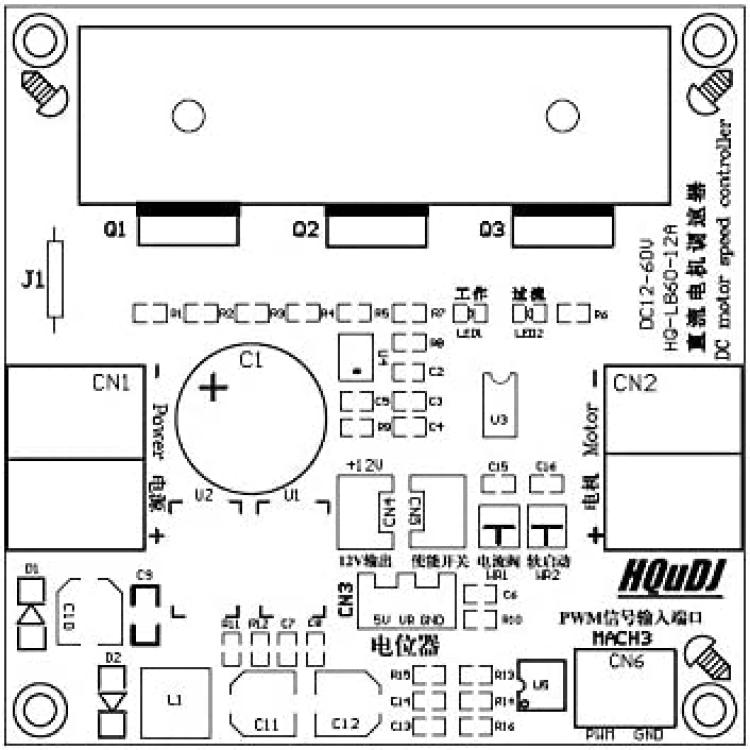

The governor adopts humanized terminals to facilitate flexible wiring.
