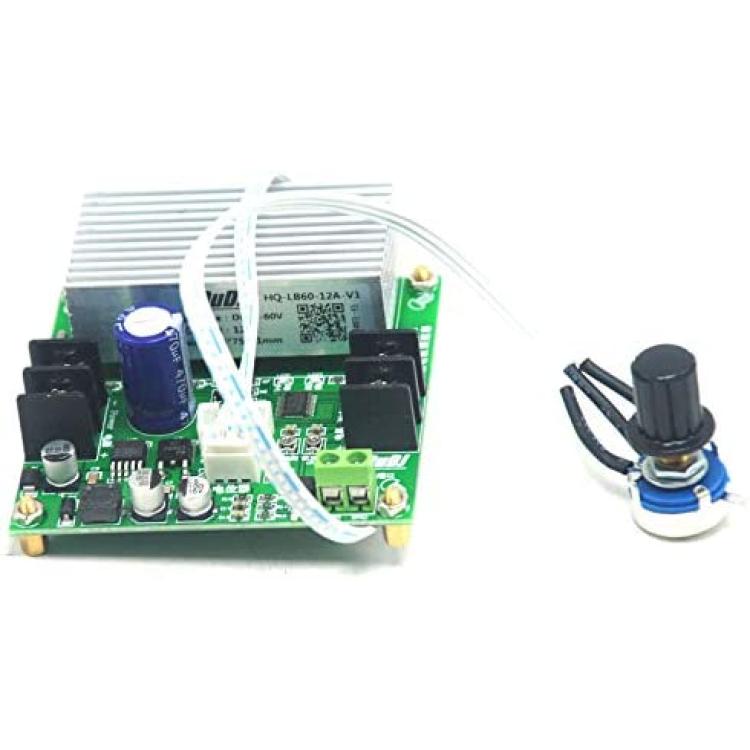

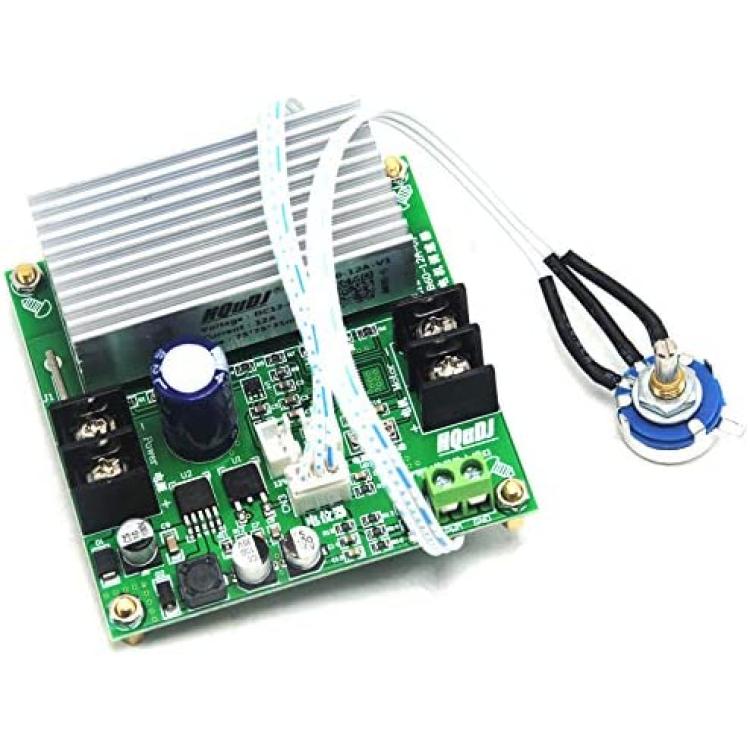

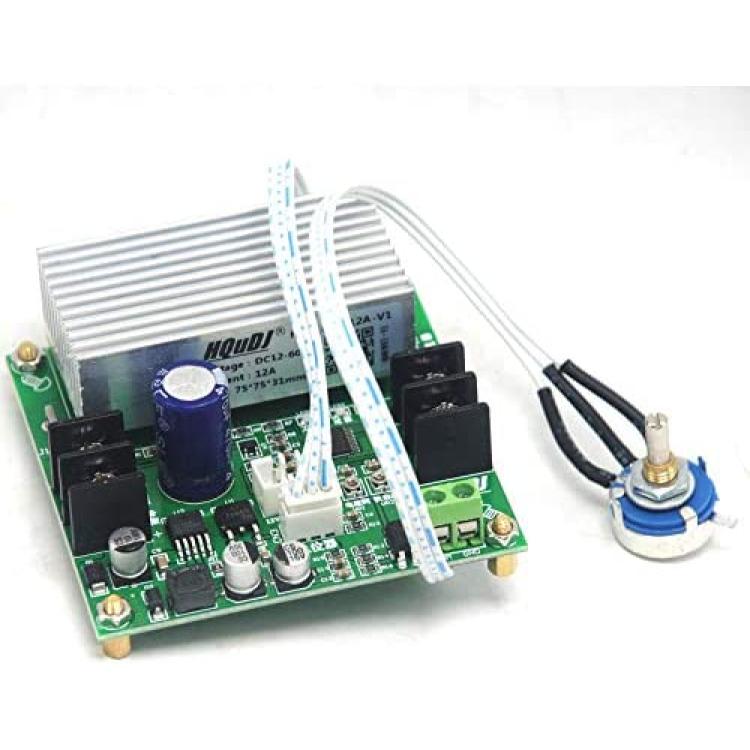

MACH3 Spindle Controller DC12V-60V 10A Wide Voltage PWM DC Brush Motor Speed Board
About this product
*we will ship it within 2 working days, it may takes 7-12 days to USA（Standard delivery）
*the default potentiometer control (5K-100K feasible) defaults 10K
*0-5V analog control (unplug potentiometer plug XH2.54-3P, signal line connected XH2.54-3P middle foot, ground wire connected XH2.54-3P right feet
*MACH3 interface support an external PWM signal input terminal speed control
*External PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control
Description
12V-60V 10A wide voltage PWM DC brush Motor Speed MACH3 spindle Controller It is suitable for DC12-60V low voltage permanent magnet brushed DC motor Product Description
Operating Voltage: Wide Voltage (DC) DC12V-DC60V (limit 65V)
Control:
1, the default potentiometer control (5K-100K feasible) defaults 10K;
2, 0-5V analog control (unplug potentiometer plug XH2.54-3P, signal line connected XH2.54-3P middle foot, ground wire connected XH2.54-3P right feet).
3, MACH3 interface support an external PWM signal input terminal speed control,
External PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control, (Note: external PWM signal to control, it need unplug XH2 .54-3P plug control potentiometer).
Rated current: 10A, overload and short circuit protection current 12A. (Over-current cut output, overcurrent indicator flashes, the potential return and light is off, overcurrent lift).
Soft-start function to prevent the motor starting current occasion caused by fluctuation with power damage (default 0 seconds soft start), 0-5 seconds adjustable
Control Power: 12V120W, 24V240W, 36V360W, 48V480W, 60V600W
Dimensions: 75mm x 75mm x 42mm (height with pillars, pillars height 6mm)
Pulse width modulation range: 0% -100%
It used in all terminals, flexible wiring. Package:
1pc 12V-60V 10A wide voltage PWM DC brush Motor Speed ??MACH3 spindle Controller
