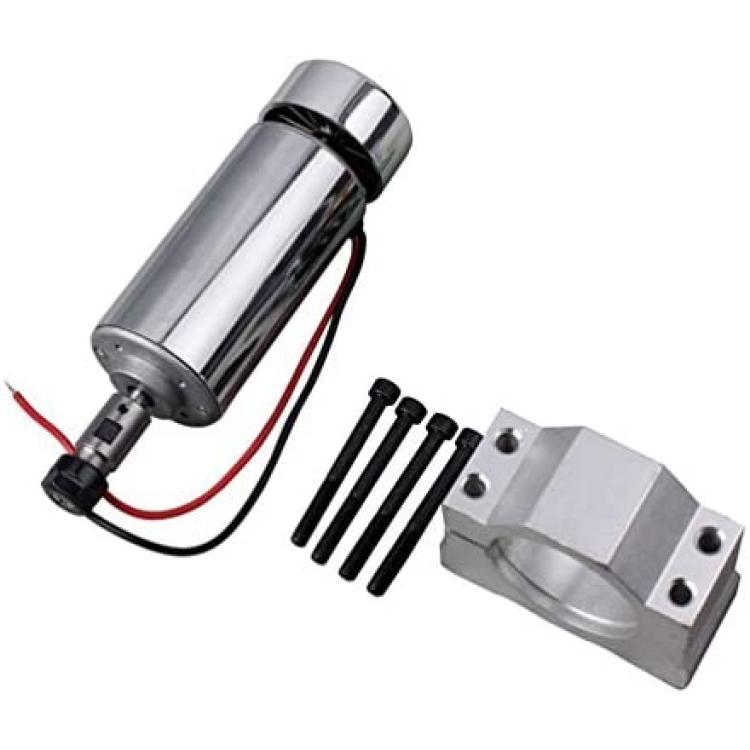

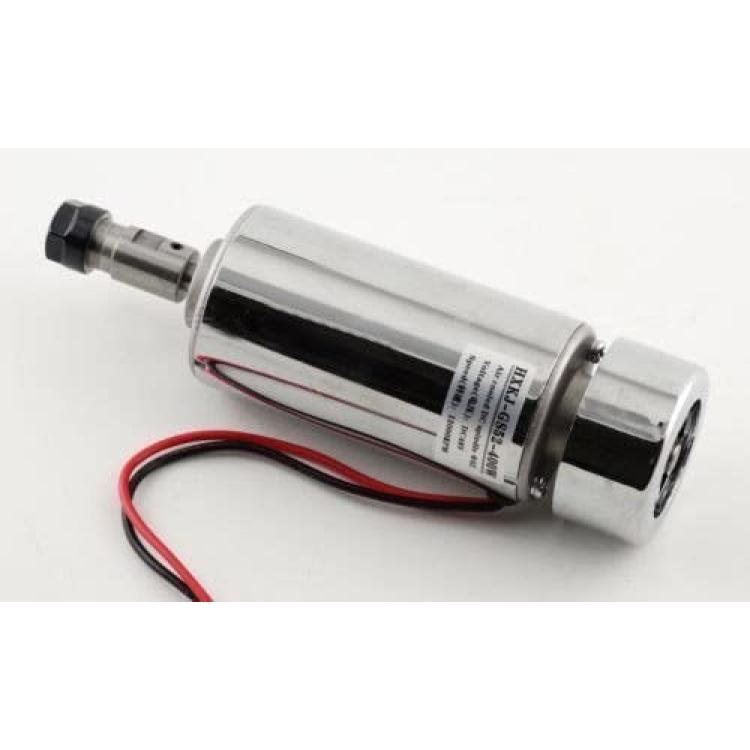

Update CNC 0.4KW Spindle Motor ER11 + Mach3 PWM speed controller + 3.175mm Mount

Parameter(Motor):
1. Work voltage: 12-48VDC
2. Rotation speed: 3000-12000r/min
3. Power: 400W
4. Torque:500mN.m
5. Insulation resistance:>2Megohm
6. Dielectric strength:400V

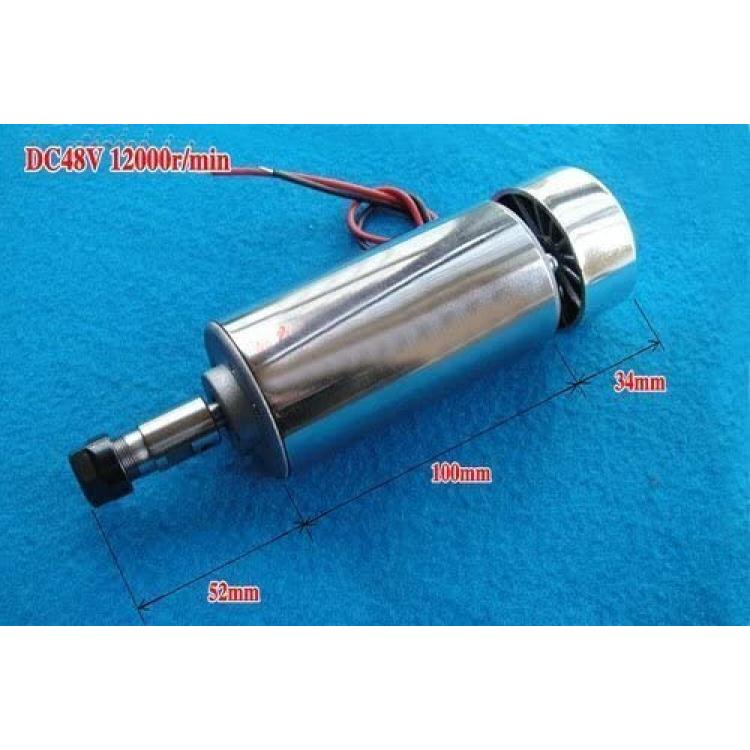

7. Motor Length : 186mm
8. Diameter:52mm
9. Axis collet Length: 48mm
10. Diameter of Axis collect holder:16mm
11. Repeat accuracy: 0.01-0.03mm
12. ER11 collect: 3.175mm
13. Dimensions: Length 75mm * Width 75mm * high 42mm
14. Pulse width modulation range: 0% -100%

Control mode?
1. Default potentiometer control (5K-100K),defaults 10K;
2. MACH3 -PWM speed control signal input, external PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control.

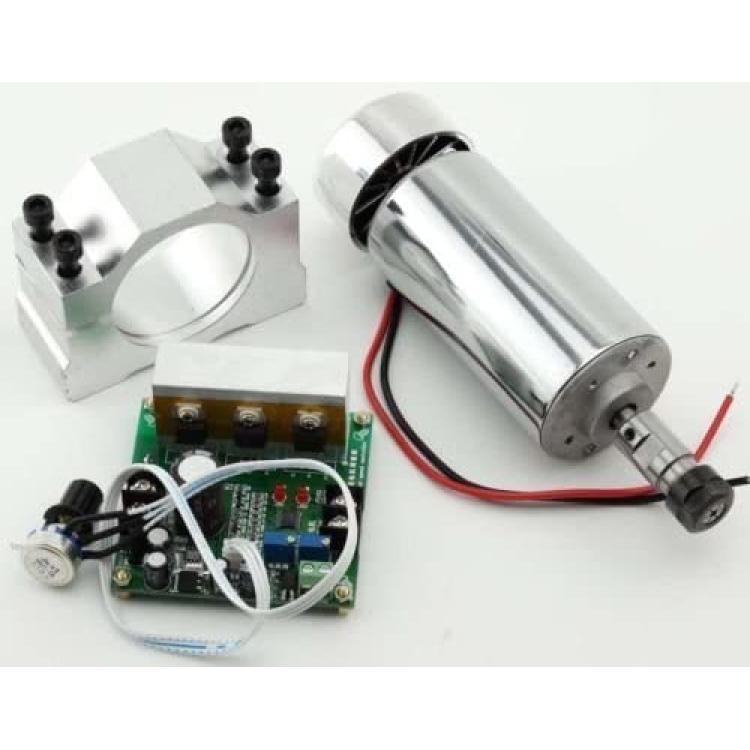

Package Included:
1 x 0.4KW Spindle motor
1 x PWM Controller
1 x Mount
