400W Spindle Motor ER11 & Mach3 PWM Speed Controller & Mount Engraving Kit CNC

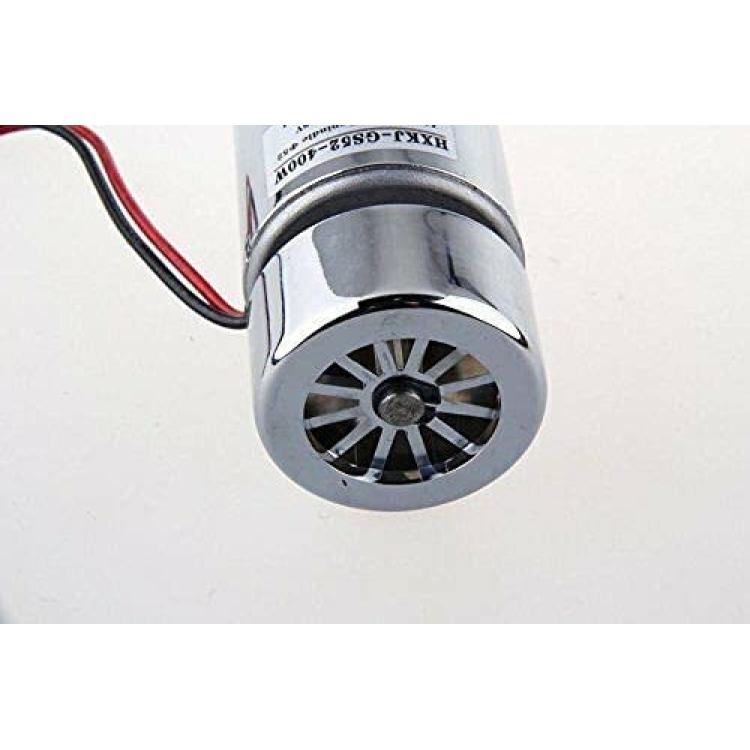

Specification(Motor):

1. Work voltage: 12-48VDC

2. Rotation speed: 3000-12000r/min

3. Power: 400W

4. Torque: 500mN.m

5. Insulation resistance: >2Megohm

6. Dielectric strength: 400V

7. Motor Length: 186mm

8. Diameter: 52mm

9. Axis collet Length: 48mm

10. Diameter of Axis collect holder: 16mm

11. Repeat accuracy: 0.01-0.03mm

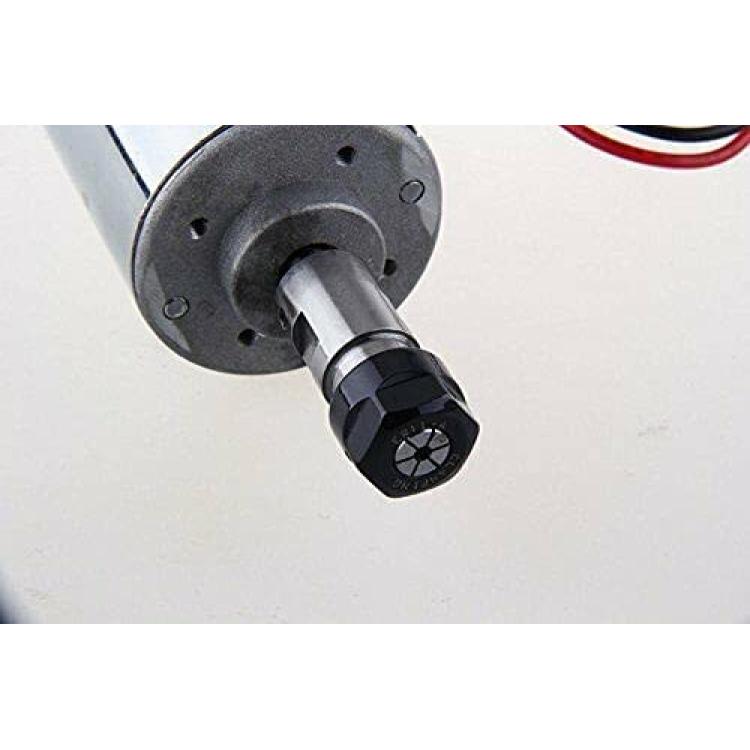

12. ER11 collect: 3.175mm

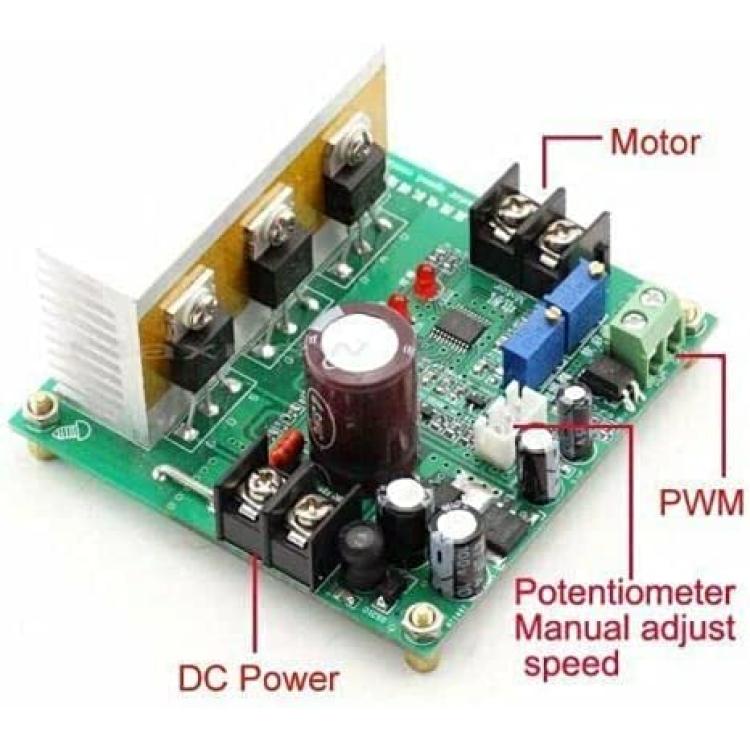

Description(Controller):

1. Applies to DC12-60V low voltage permanent magnet brushed DC motor

2. Operating Voltage: Wide Voltage (DC) DC12V-DC60V (Max 65V)

3. Rated current: 10A, overload, and short circuit protection current 12A. (Over-current cut output, overcurrent indicator flashes, the potential light is off, overcurrent lift)

4. soft-start function. Prevent excessive current caused by the motor and power damage (default 0 seconds soft start), 0-5 seconds adjustable.

5. Control power: 12V120W, 24V240W, 36V360W, 48V480W, 60V600W

6. Dimensions: Length 75mm * Width 75mm * high 42mm

7. Pulse width modulation range: 0% -100%

Control mode:

1. Default potentiometer control (5K-100K), defaults 10K

2. MACH3 -PWM speed control signal input, external PWM input requirements: level 3. 5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control

Note: When using a PWM signal control mode, need to unplug Potentiometer, or it will be unable to use PWM mode

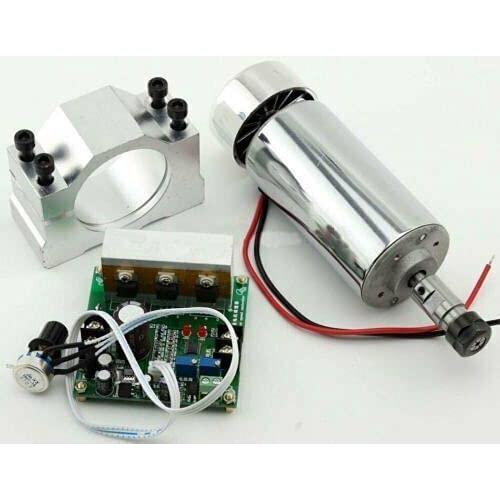

Package Included:

1 x 0.4KW Spindle motor

1 x PWM Controller

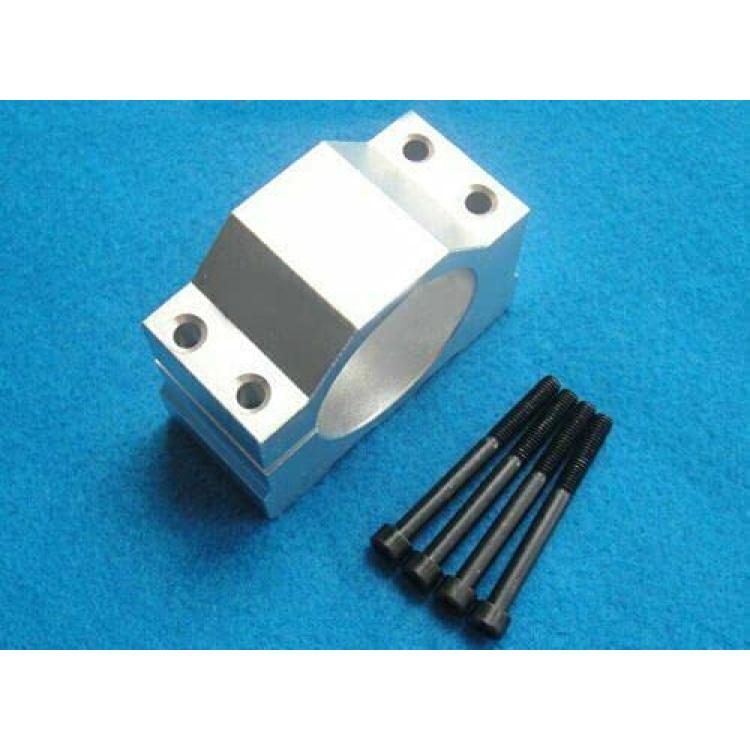

1 x Mount
