Eleoption CNC 400W Spindle Motor ER11 & Mach3 PWM Speed Controller & Mount 3.175mm Engraving Set
Description
Product Description

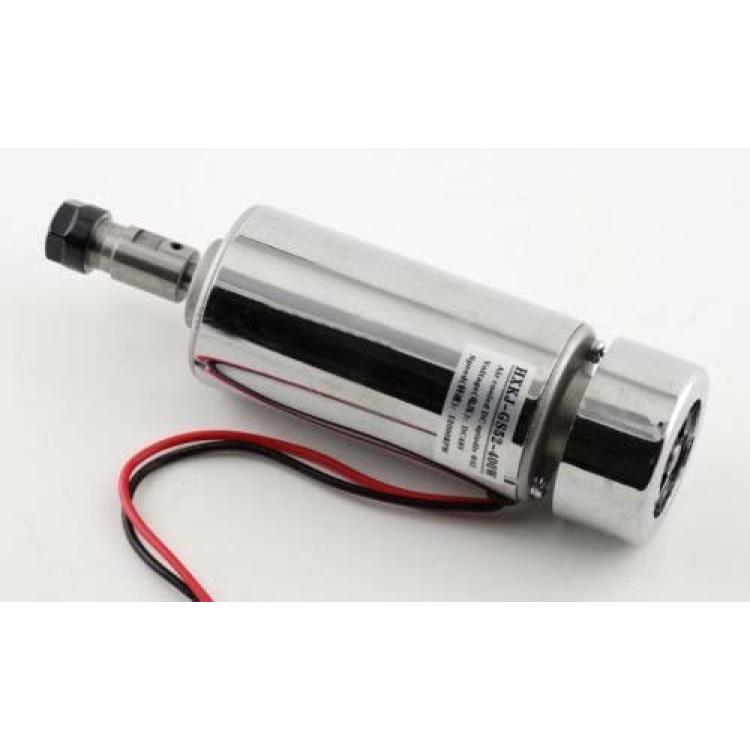

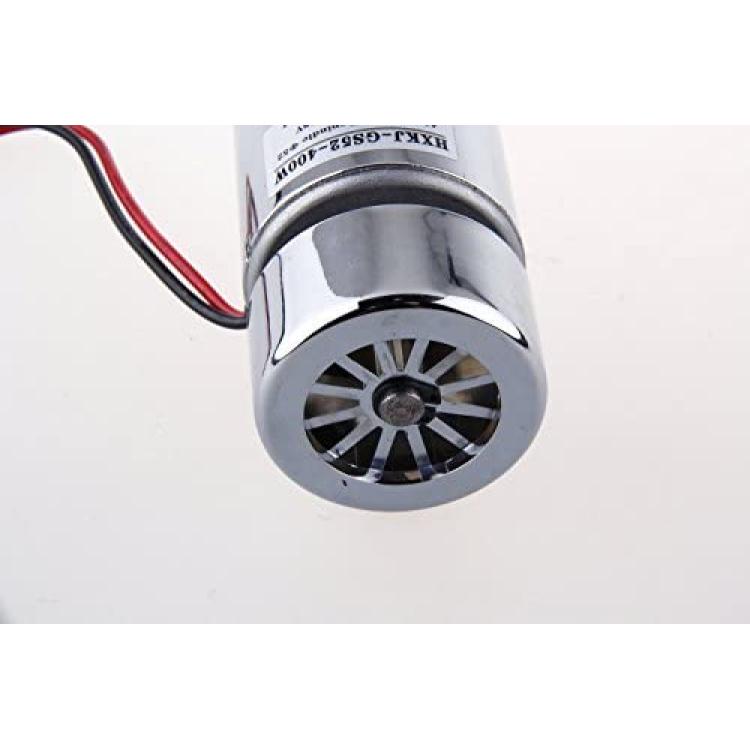

Parameter(Motor):
1. Work voltage: 12-48VDC
2. Rotation speed: 3000-12000r/min
3. Power: 400W
4. Torque:500mN.m
5. Insulation resistance:>2Megohm
6. Dielectric strength:400V

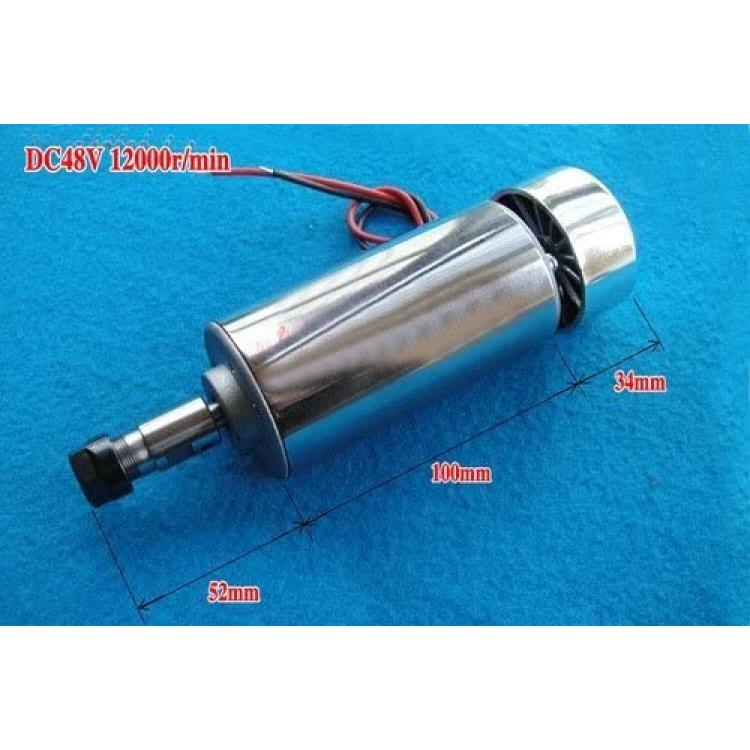

7. Motor Length : 186mm
8. Diameter:52mm
9. Axis collet Length: 48mm
10. Diameter of Axis collect holder:16mm
11. Repeat accuracy: 0.01-0.03mm

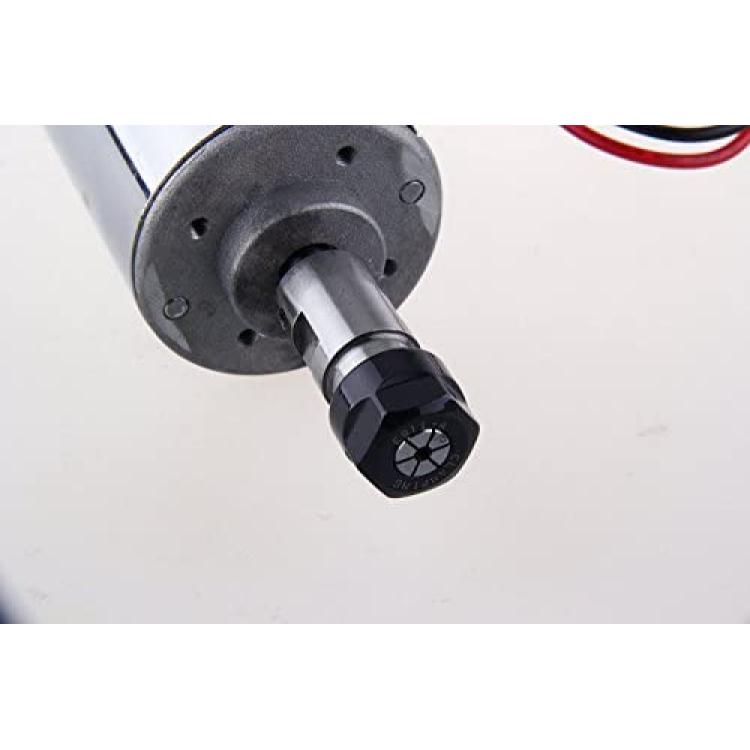

12. ER11 collect: 3.175mm

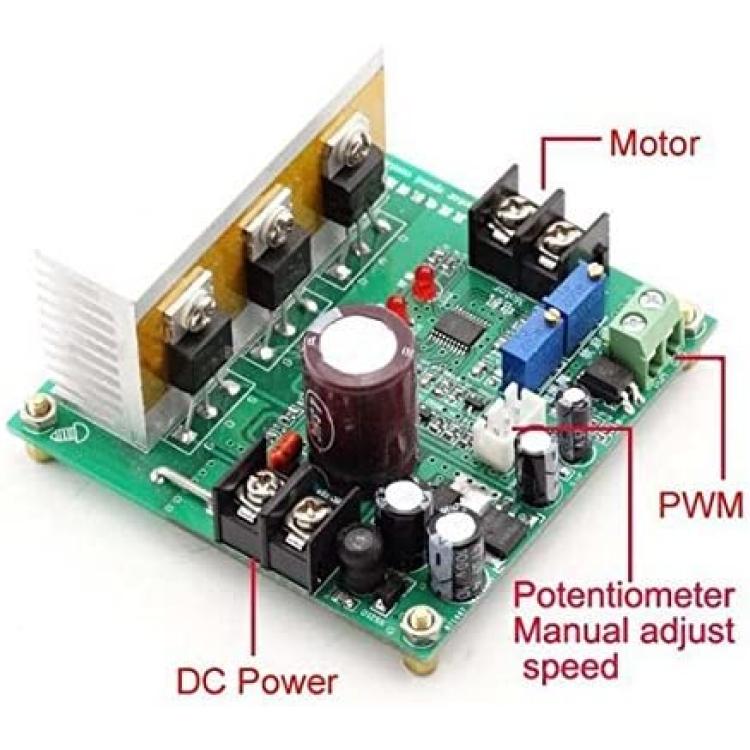

Description?Controller??
1. Applies to DC12-60V low voltage permanent magnet brushed DC motor
2. Operating Voltage: Wide Voltage (DC) DC12V-DC60V (Max 65V)
3. Rated current: 10A, overload and short circuit protection current 12A. (Over-current cut output, overcurrent indicator flashes, the potential light is off, overcurrent lift)
4. soft-start function. Prevent excessive current caused by the motor and power damage (default 0 seconds soft start), 0-5 seconds adjustable.
5. Control power: 12V120W, 24V240W, 36V360W, 48V480W, 60V600W
6. Dimensions: Length 75mm * Width 75mm * high 42mm
7. Pulse width modulation range: 0% -100%
Control mode?
1. Default potentiometer control (5K-100K),defaults 10K;
2. MACH3 -PWM speed control signal input, external PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control.
Note: When using a PWM signal control mode, need to unplug Potentiometer, or it will be unable to use PWM mode

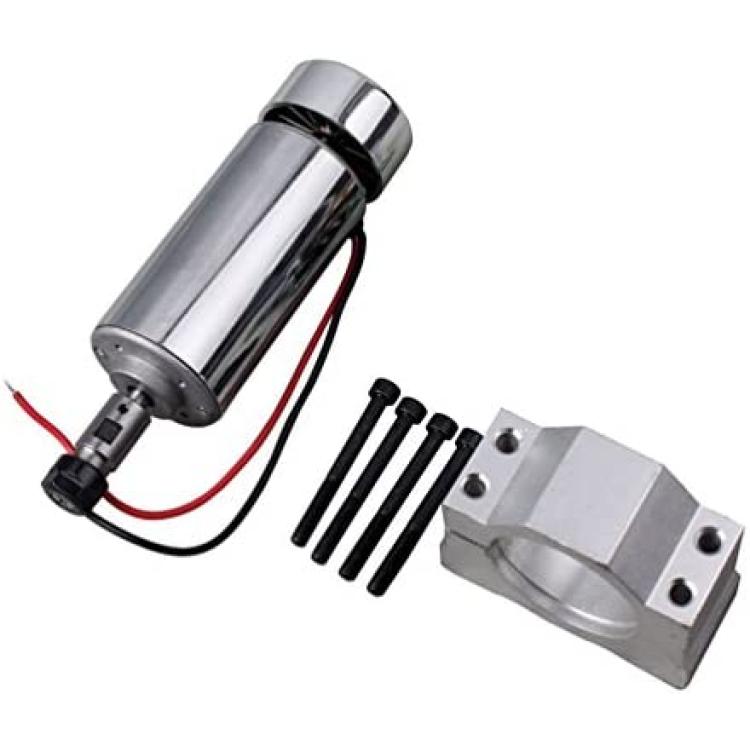

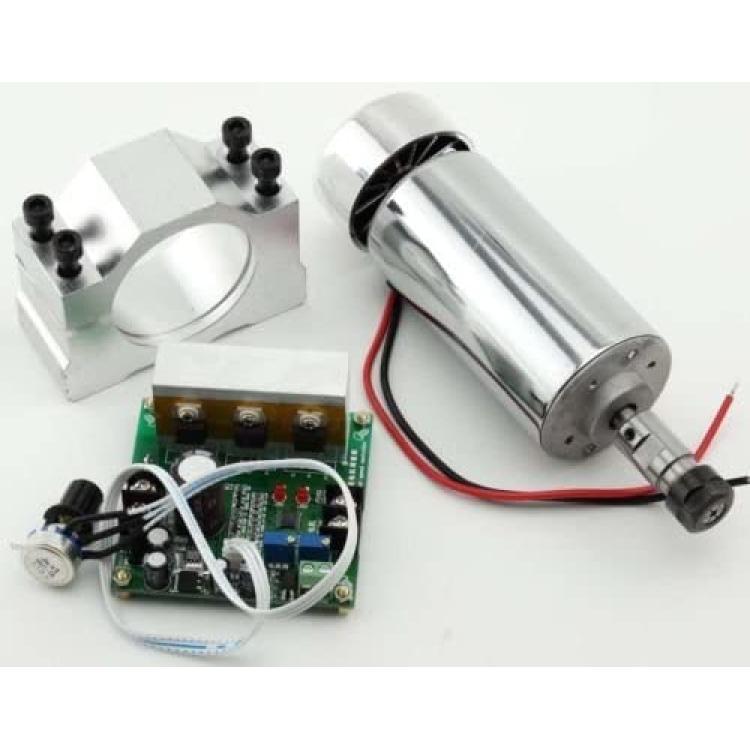

Package Included:
1 x 0.4KW Spindle motor
1 x PWM Controller
1 x Mount
