Motor Speed Controller, PWM Motor Governor 25kHz for

Features:
1. This is a simple and easy-to-use DC motor speed controller of elegant appearance and stable performance.
2. Speed controller is made with high quality circuit board which ensures a longer service life.
3. This speed controller can change rotation direction of DC motor by adjusting the line sequence.

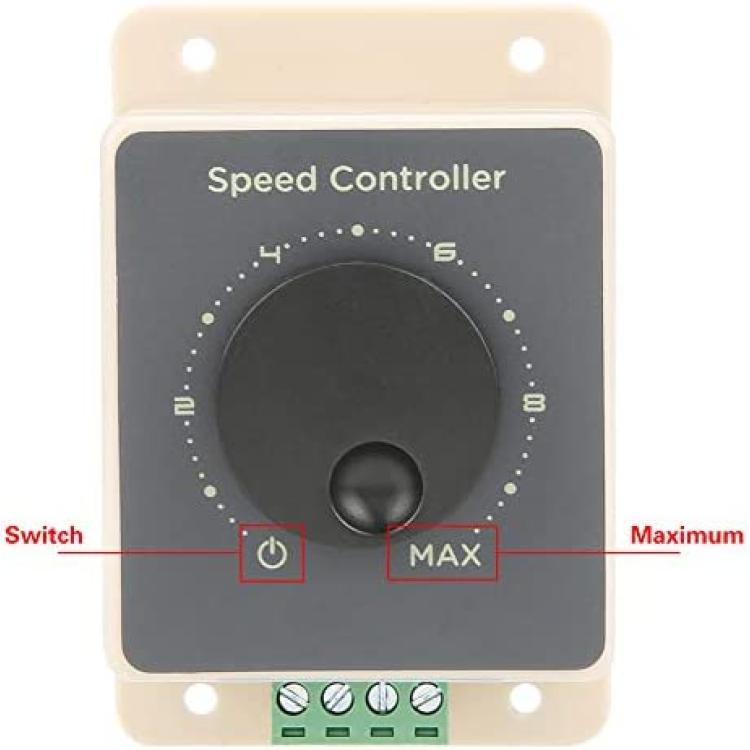

4. Easy to use, simply rotate the knob to change output so to change the rotary speed of DC motor.

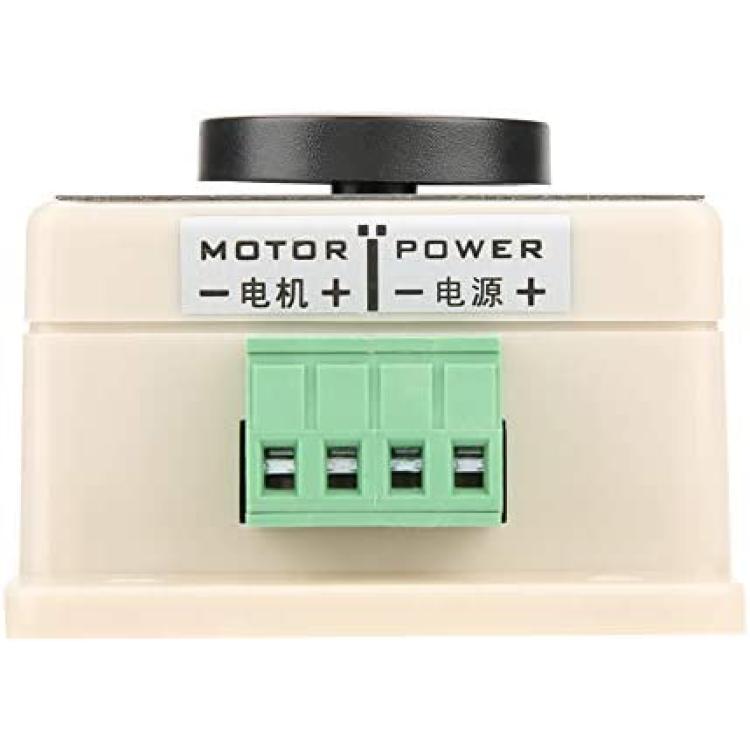

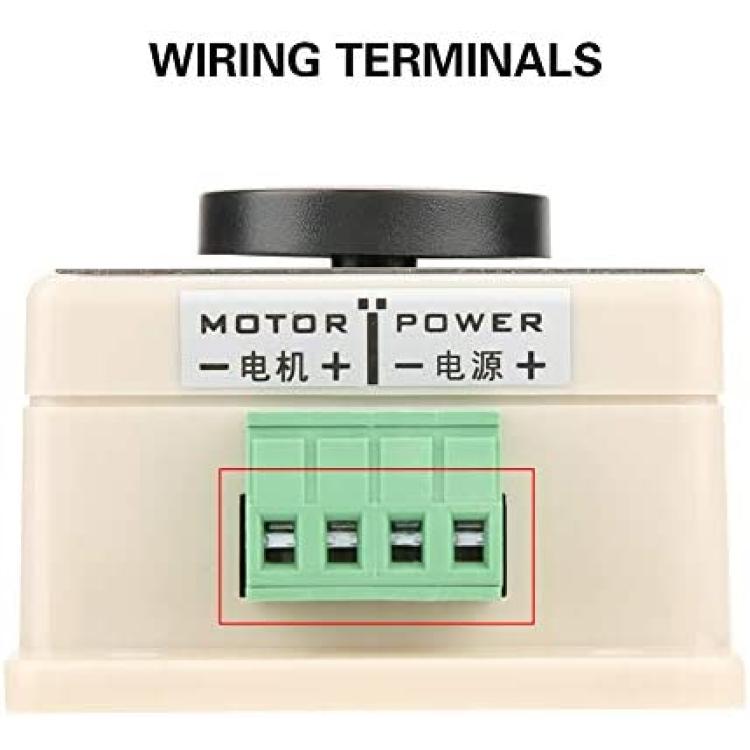

5. Designed with convenient screw terminals for quick wiring.

Specification:
Model: CCM96SK
Input Voltage: DC 10-60V (Output voltage is about 0-100% of input voltage)
Control Power: 12V*10A=120W, 24V*10A=240W, ...
Rated Current: 10A
Maximum Current: 20A
Speed Adjustment Range: 5%-100%
Potentiometer: resistance B100K; opening 8mm
PWM Frequency: 25kHz

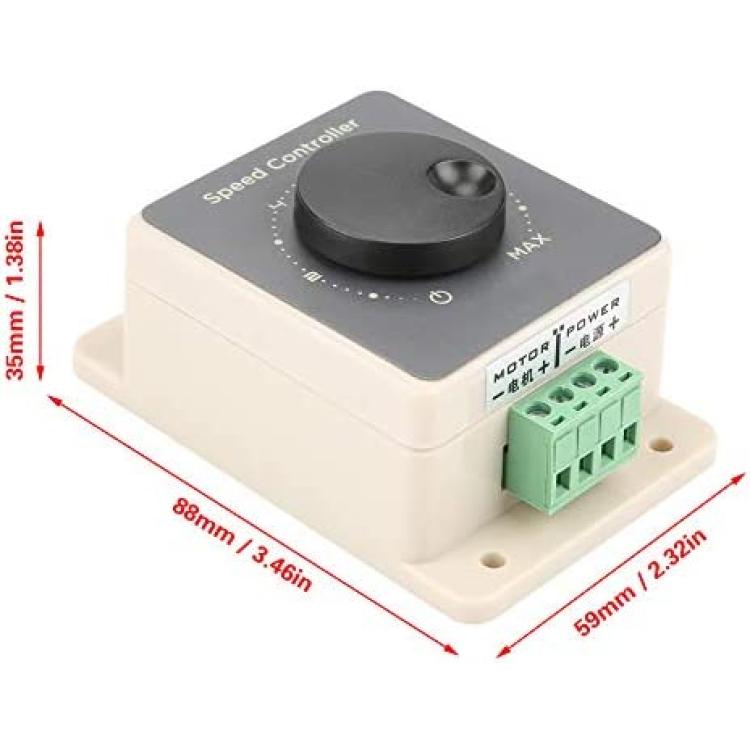

Size: 88*59*35mm / 3.46*2.32*1.38in
Package weight: Approx. 98g/3.4oz

Package List:
1 * DC Motor Governor

Note:
1. DC motor speed controller can not be directly connected to AC, or it will burn out.
2. DC power supply can not reverse the positive and negative pole, otherwise the governor will be damaged.
