AC20-110V input DC Motor Speed Controller Board PWM Spindle 2000w w/PLC/MACH3

Description:

This drive can be used with a variety of motion control card, PLC, etc. to achieve joint control.
It can also independently control the motor.
By setting drive, You can match the voltage AC20-110V,
within the power of 2000W Various types of DC brush motors

note:
When controlling motor commutation
First to control the motor completely stopped,
Then perform motor commutation signal,
Otherwise burning fuse,Motor vibrations.!!!!!!!

When PWM control,

Requirements:
PWM frequency 800-30KHZ.
duty cycle is 0-100% ,
The minimum received signal is 4.3V peak to peak.

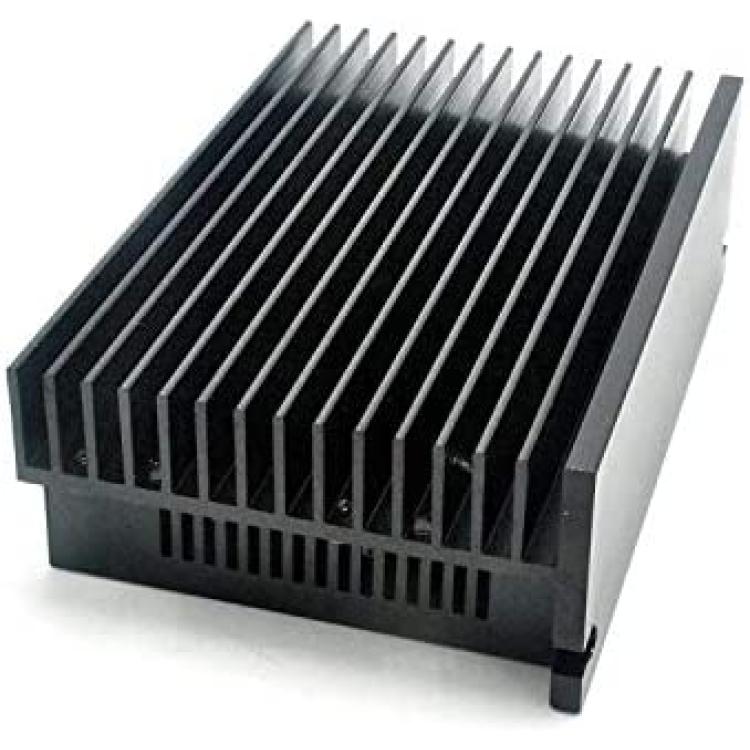

Size: 151 * 97 * 48.5MM.
weighs 0.7KG.

Features:

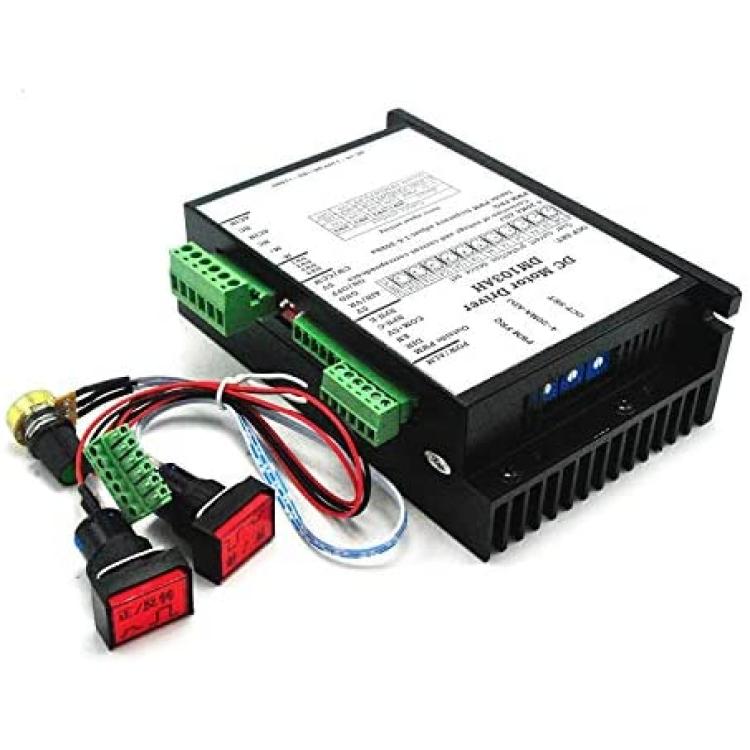

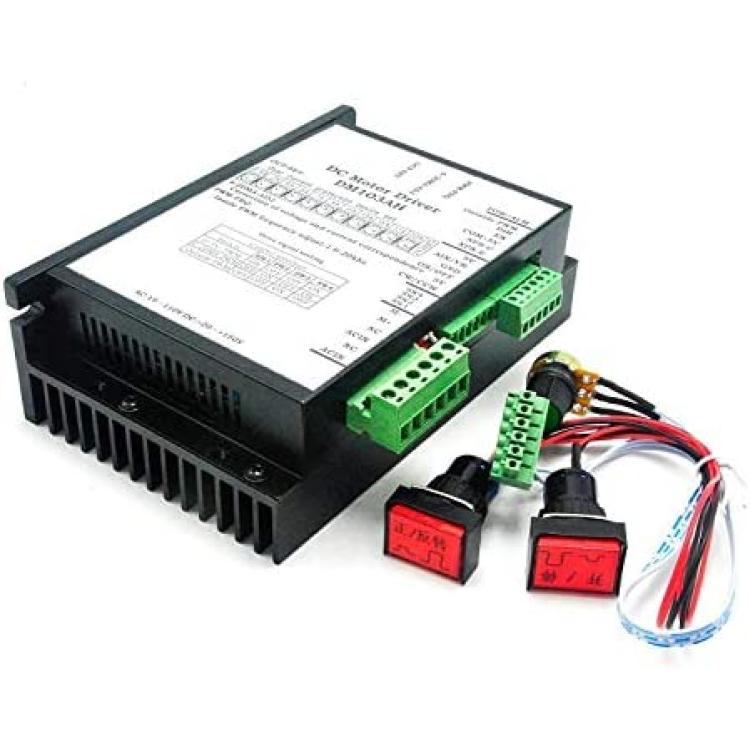

1, the PWM DC motor speed controller (model DM103AH) is mainly used to drive DC brush motor,
Designed for motion control card such as MACH3, USBCNC or PLC control DC motor design,
Having a speed control, on / off, positive inversion
Locked rotor alarm output,Overcurrent protection,Short circuit protection.Status indicator
2, The Converter be combined with various motion control card, PLC, etc. to achieve joint control.
It can also independently control the motor.
By setting the speed controller,
It can match the voltage 20-110V, less than 2000W of power. Various types of DC brush motors.
Individually by an external switch knob to use;
Also can be equipped with PLC, motion control cards, industrial machines to use.

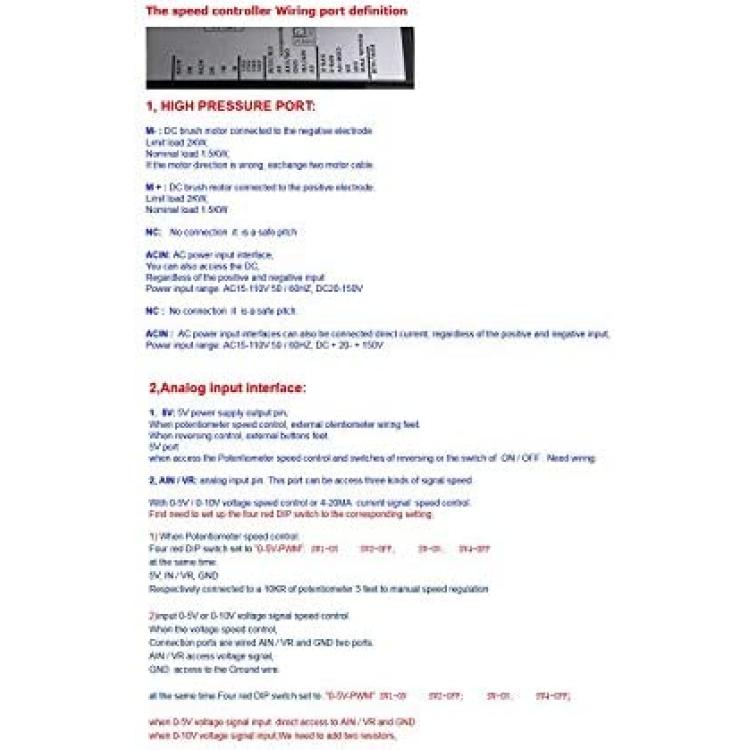

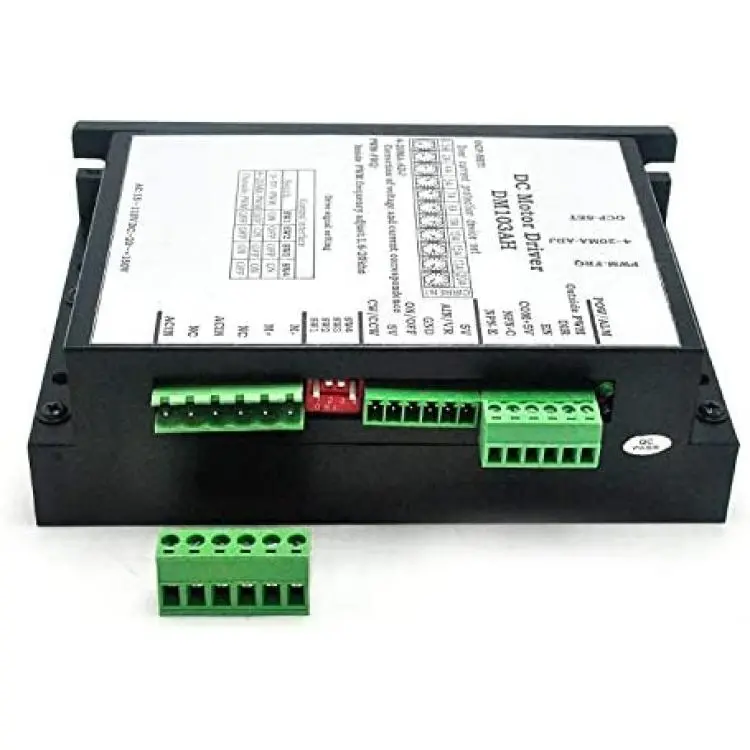

3, Fully functional interface.
You can add 0-5V, 0-10V, 4-20MA, PWM signal, etc. and external potentiometer manually
total is five kinds of ways to control speed.
4, it has a start / stop and reversing interfaces,
Protection of output interface.
Package:
1pc AC20-110V input DC Brush motor speed controller 2000W /for MACH3 PLC /Reversible
