Ac20-110v 2000w Brushed Dc Motor Speed Controller Board,PLC Governor

Feature:

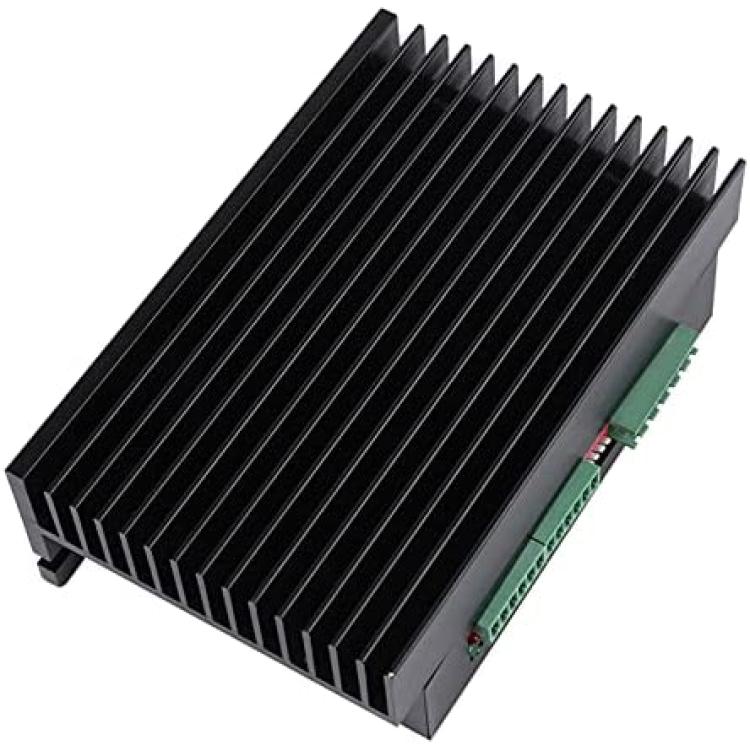

1.This PWM DC motor speed controller (model DM103AH) is mainly used to drive a brushed DC motor, designed for motion control cards or PLC controlling DC motor

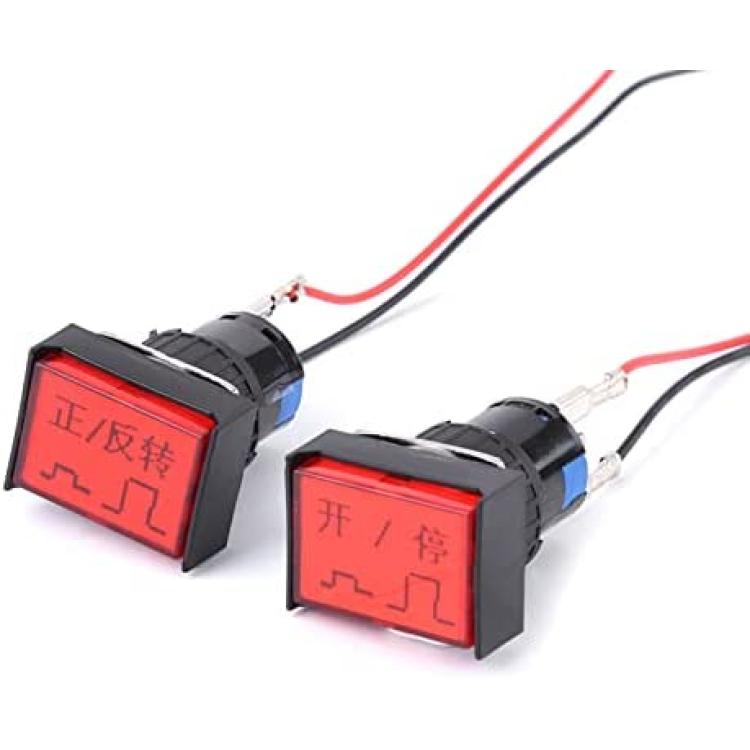

2.It has function of speed governing, on/off, CW/CCW rotation, locked-rotor alarm output, over-current protection, short circuit protection and status indication
3.The speed controller can control motor with sorts of motion control cards, PLC, and also it can control motor independently
4.It can be set to control different models brushed DC motors of voltage 20V-110v, and power less than 2000W

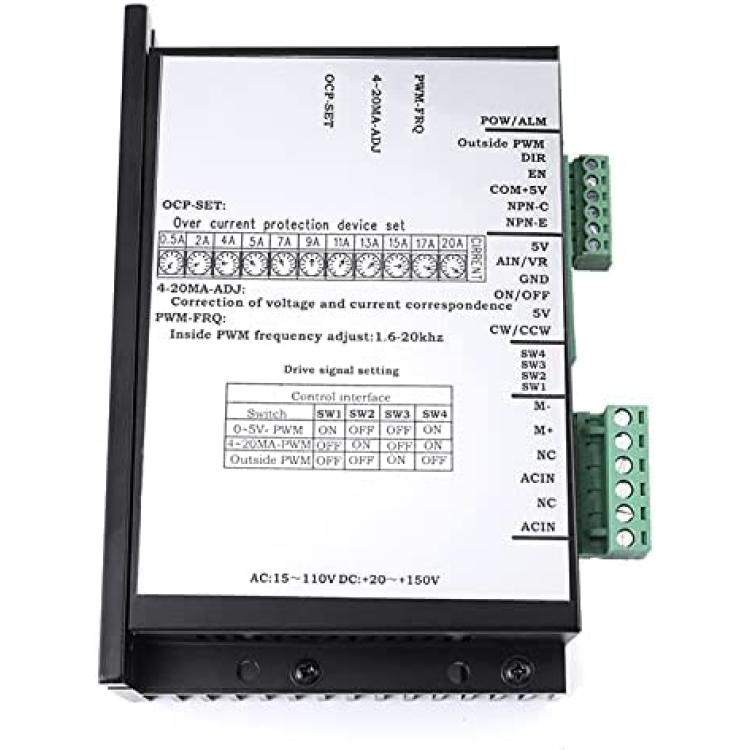

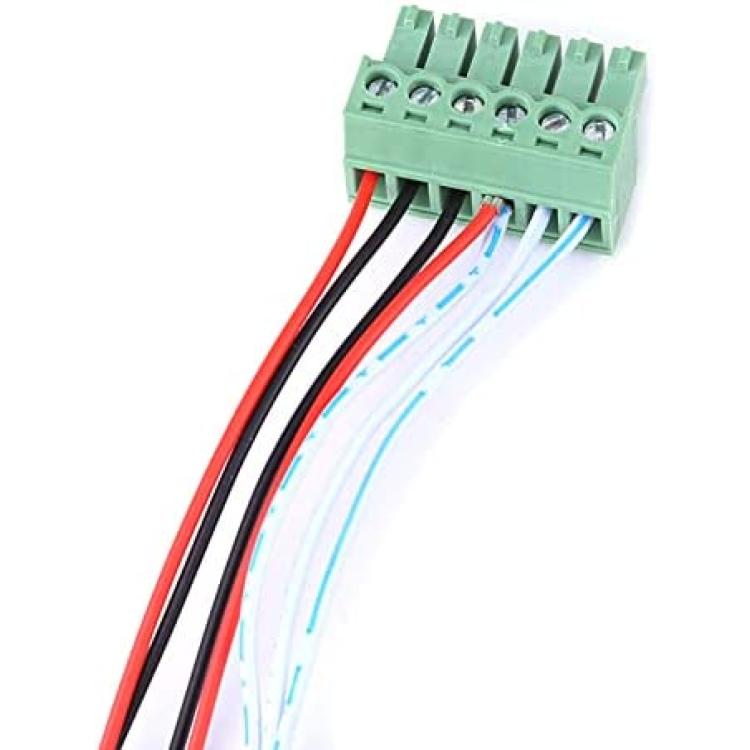

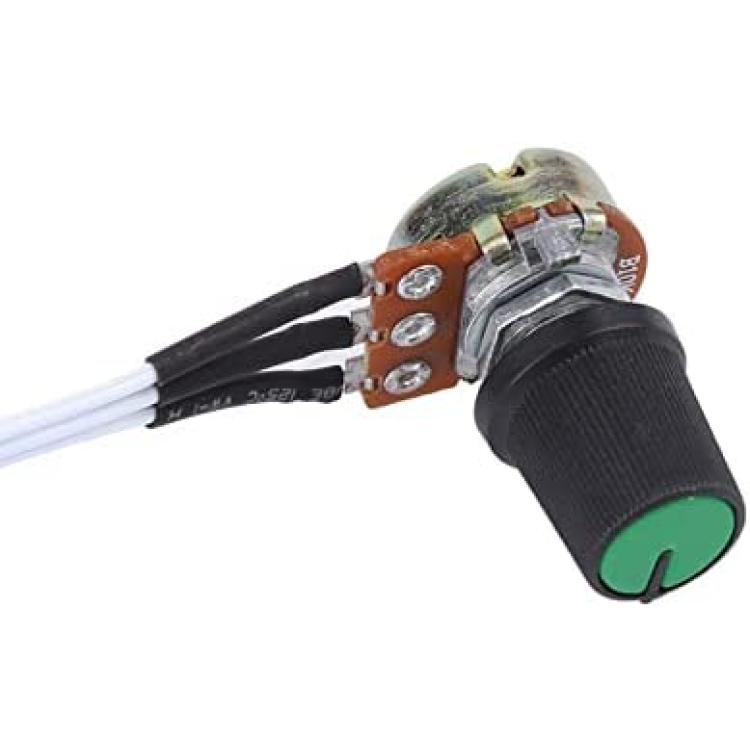

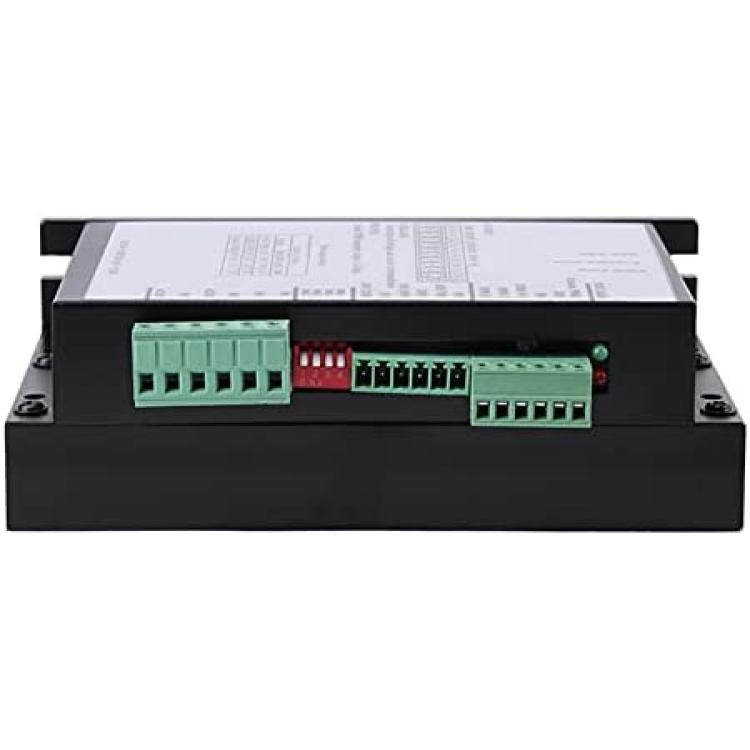

5.With complete function connector, it can connect to external 0 to 5v, 0-10v, 4-20mA, PWM signal and external potentiometer manually, a total of 5 kinds of speed governing control ways
Other Setting:
1, Support AC or DC input, voltage range DC:+20~+150V, AC:15~110V.
1) Usually we convert 220V/380V to 110V with a transformer.
2) In some countries, the voltage is 115V, 120V or 127V which will damage the driver. For example, this driver can connect to mains power in Japan directly, but not United States.
3) A transformer is suggested to use and convert mains power into less than 110V to power the driver.
4) Power capacity of power supply transformer depends on load of motor, normally is motor nominal power/0.8 and can be a litter larger. For example, 500W motor, 500/0.8 = 625W, choose 600W or 650W transformer
Package Includes:

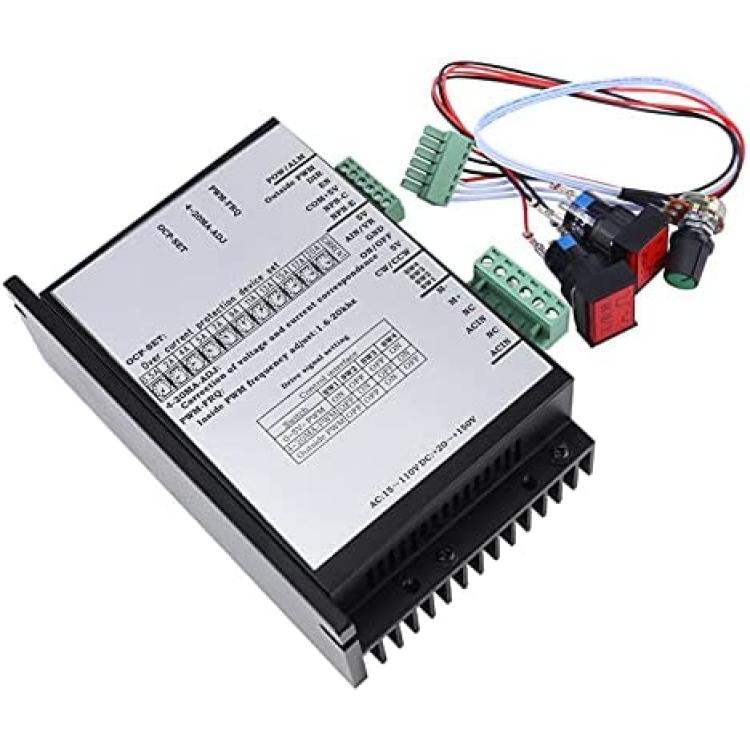

1 x Speed Controller
