Genmitsu CNC Router Machine PROVerXL 4030 with GRBL Control + 4PCS 2-Flute Tapered Ball Nose Spiral End Mill (1/4’’ Shank)
Share Facebook Twitter Pinterest Email

Genmitsu CNC Router Machine PROVerXL 4030 with GRBL Control + 4PCS 2-Flute Tapered Ball Nose Spiral End Mill (1/4’’ Shank)

Product Code: MM28000
Availability: Pre-Order, Inquiry Price
US$0.00
- +

About this product

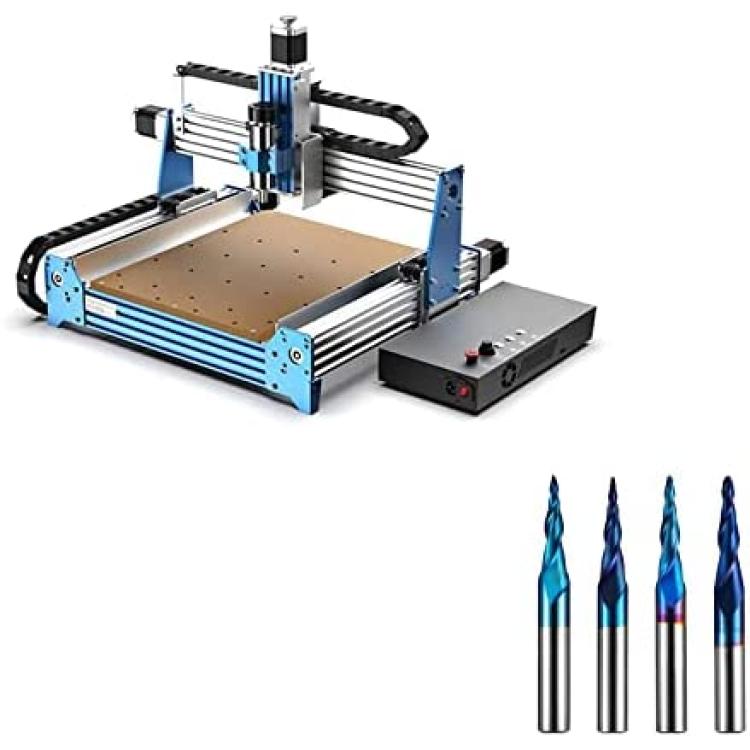

*What You Get: Genmitsu PROVerXL 4030 CNC Router Machine; 4pcs 2-Flute Tapered Ball Nose Spiral End Mill. (Note: They will be shipped separately)

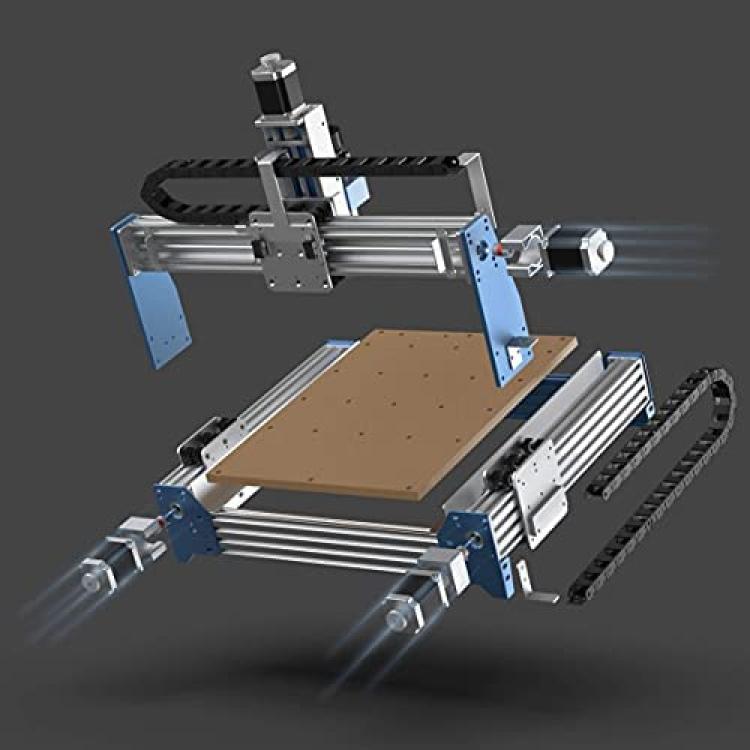

*Easy to Set Up: The pre-assembled module of XYZ axis and wires dramatically reduces effort of assembly, allowing you to start carving your projects in less time. 3-Month Carveco Maker Subscription is included. Turning your ideas into the next fun project or your own work of art will be much easier with Carveco Maker. We will email you the subscription link after you place the order.

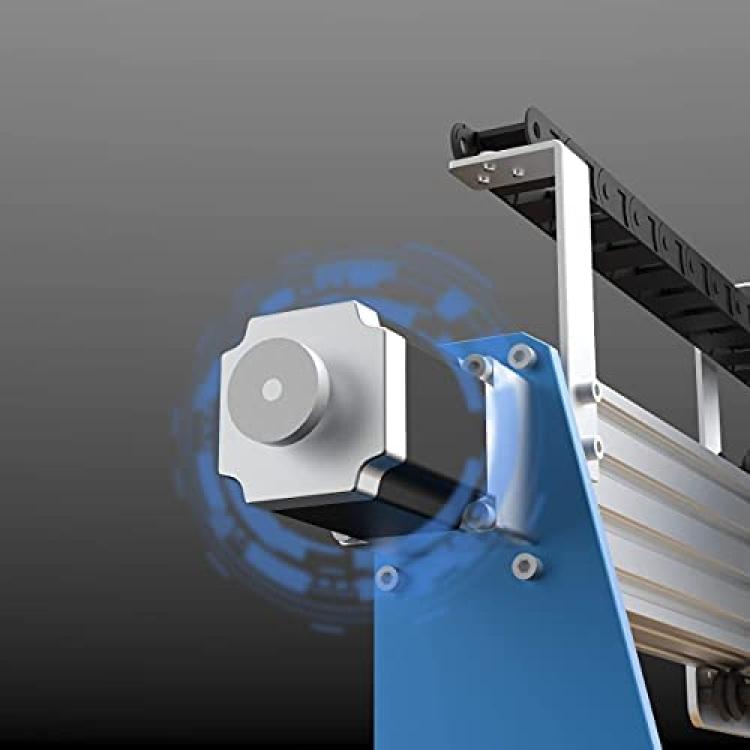

*More Power: All new completely redesigned control box and drive system, beefy C-BEAM Frame, precision NEMA 23 stepper motors, High Power Spindle and included adapter for a drop in Dewalt DWP611 upgrade.

*Precision and Performance: Rigid C-beam structure,Leadscrew Driven, Y-axis Dual screw drive, Z-Axis Optical Axis Drive delivers more stability than the traditional v-slot drive. Its ideal for an endless variety of cutting, drilling, and carving operations on various materials including wood, MDF, plastics, foams, vinyl, and aluminum.

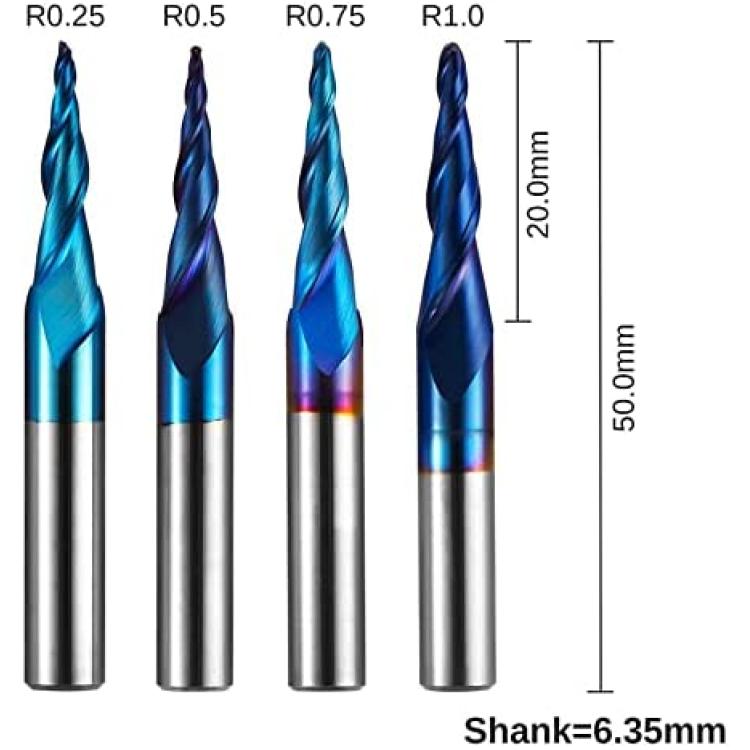

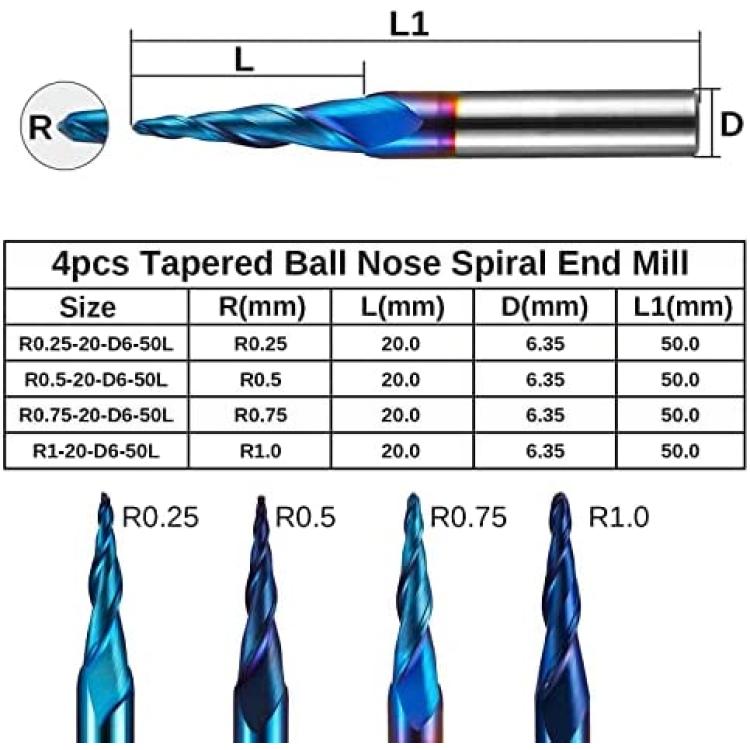

*4pcs 2-Flute Tapered Ball Nose Spiral End Mill: Shank Diameter: 1/4 (6.35mm), Radius: 0.25, 0.5, 0.75, 1.0mm, Cutting Length: 20mm, Overall Length: 50mm.

Description

Specification:

PROVerXL 4030:

TB04B End Mill:

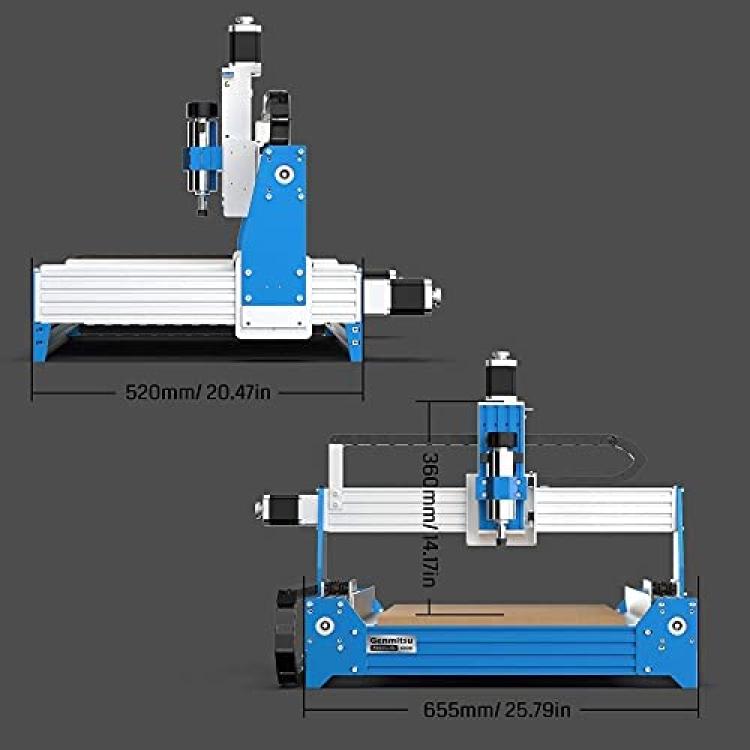

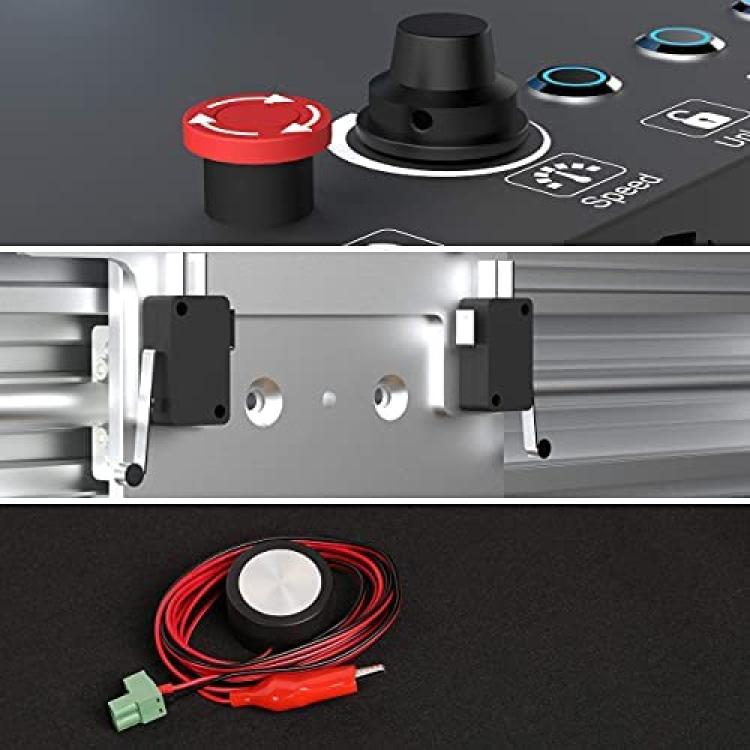

Working area: 400 x 300 x 110mm (15.75 x 11.81 x 4.33 inch) Frame: C Beam Structure and Linear Rails Drive System: ACME Leadscrew (T10) Control Board Compatibility: GRBL 1.1h Stepper Driver: TB6560 Stepper Motors: NEMA 23 (2 Phase, 3A) Spindle: 300W 6A, 12,000 RPM Max speed: 2000mm/min Extra Mount: Aluminum DeWalt DWP611 Mount (DWP611 router not included) Accuracy: 0.01mm (0.000393701 inch) Power Supply: 600W, 7A, 0-48V CAM Software: Candle, Carveco Maker, Easel Homing Switches: X, Y, Z Limit Switches + ESTOP Leadscrew Size: X-658mm , Y-528mm, Z-208mm Leadscrew Type: T10 2mm pitch, 5mm lead 5 start acme leadscrew Overall Machine Size: 641 x 755.5 x 580mm (25.23 x 29.74 x 22.83) Controller Box Size: 400 x 200 x 60.7mm (15.75 x 7.87 x 2.39) Machine Weight: 26kg (57lbs) Shipping Weight: 30kg (66lbs)Material: Tungsten Carbide Steel AlloyCoating : Nano Blue CoatingRadius: R0.25, R0.5, R0.75, R1.0mmShank Diameter: 1/4 (6.35mm)Cutting Length: 20mmOverall Length: 50mm
