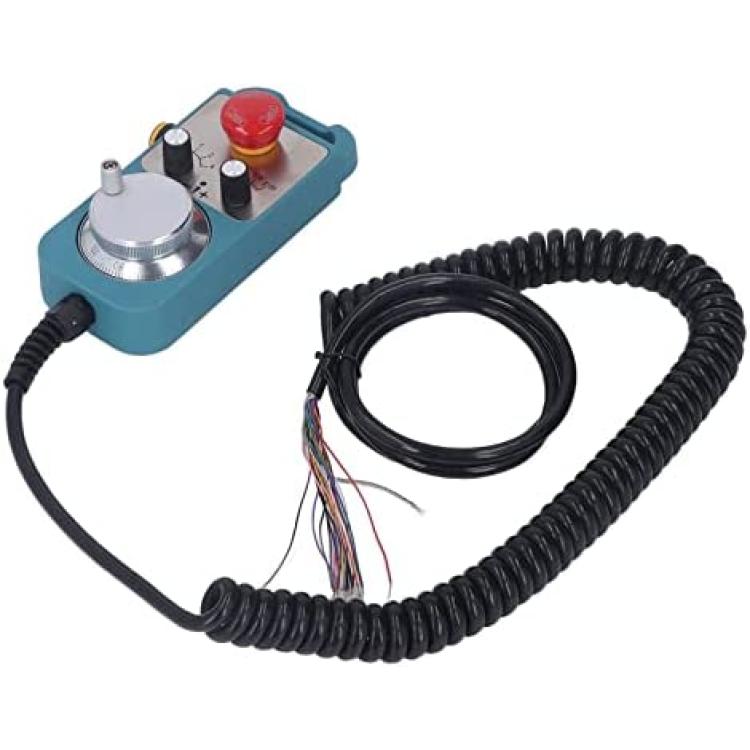

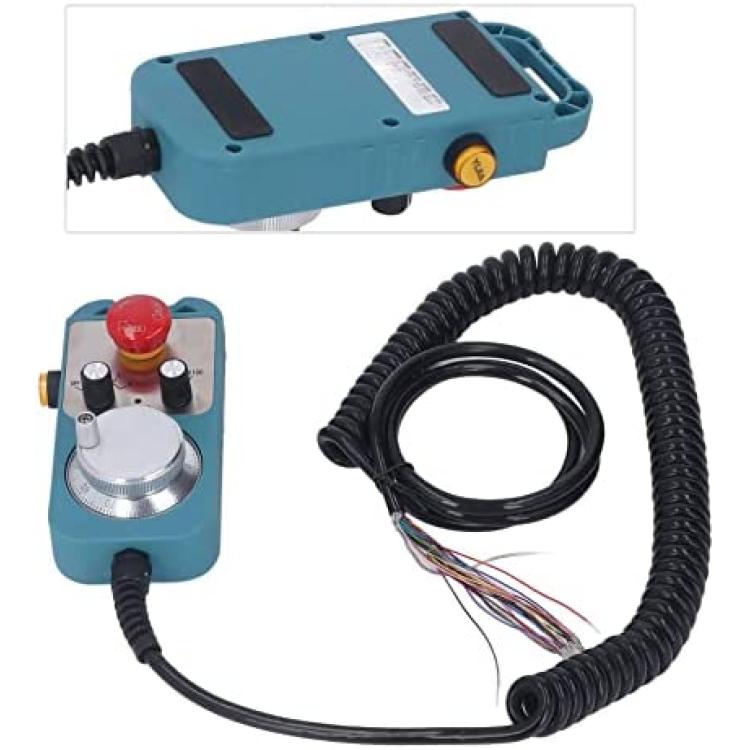

Omabeta Electronic Handwheel, CNC Handwheel Controller Smoothly Operation Resettable for Industrial

Feature:

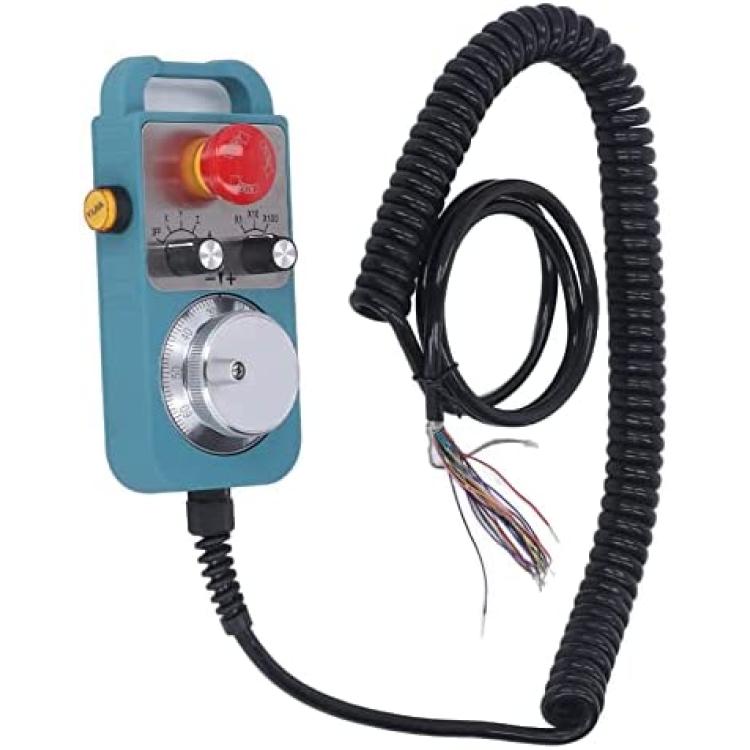

1. Emergency Stop Button: This handwheel is equipped with emergency stop button, which can be started and stopped at any time under special circumstances, safer to use
2. High Efficiency: The output pulse of this handwheel manual pulse generator is 100PPR, has high working efficiency and stable performance

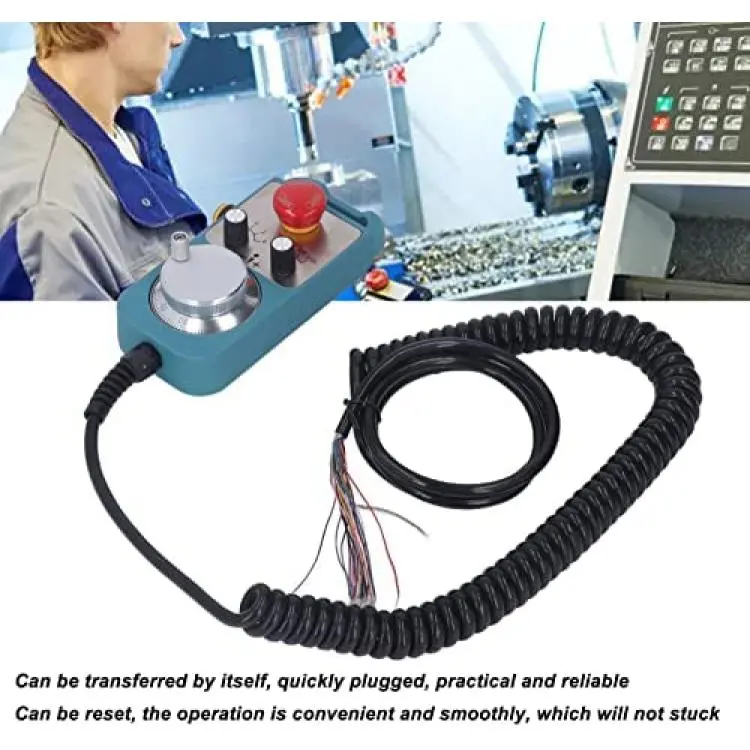

3. Practical and Reliable: This CNC control handwheel can be transferred by itself, quickly plugged, practical and reliable

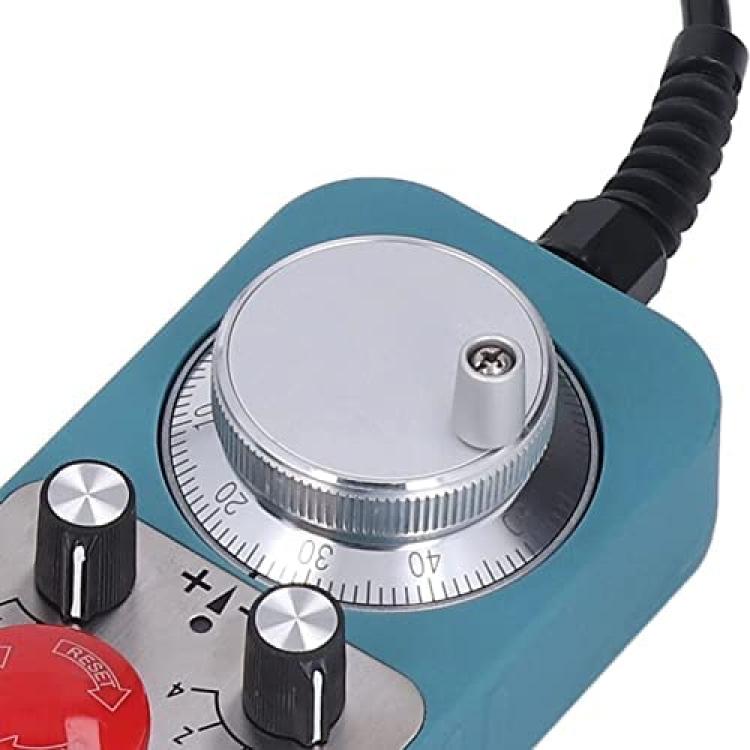

4. Smoothly Operation: The electronic handwheel is resettable, and the operation is convenient and smoothly, which will not stuck
5. Application: This electronic handwheel can be applied to various CNC systems, such as for Siemens, for LNC, for Googol, for Delta, for Syntec, for Fagor, for KND, for ADTECH, for M350, for DDCSV3.1, for XC609, etc.


Specification:
Item Type: CNC Electronic Handwheel
Material: ABS
Voltage: 5V
Pulse: 100PPR
Wiring Method:

Serial NumberWire ColorFunction1Red+5V2Black0V3GreenA4WhiteB5Purple-A6Purple and Black-B7Green and Black+L indicator light8White and Black-L indicator light9YellowX10Yellow and BlackY11BrownZ12Brown and Black4 axes13Pink5 axes14Pink and Black6 axes15GrayX116Gray and BlackX1017OrangeX10018Orange and BlackCOM axes selection magnification common terminal19BlueC emergency stop switch20Blue and BlackCN emergency stop switch21Red and BlackSpare Cable



Package List:

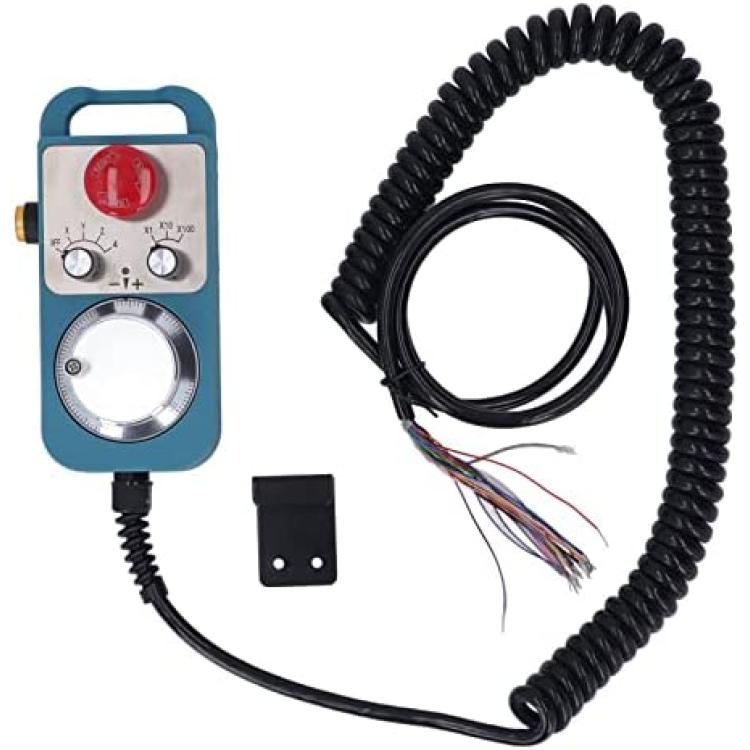

1 x CNC Electronic Handwheel
1 x Bracket


Note:
Match the appropriate model before use.
