Motor Speed Controller, Motor Controller Easy Installation Stable Operation Resettable Fuse Imported Chip for Machine
Availability: Pre-Order, Inquiry Price
About this product
*Imported Chip: With built in imported chip, the DC motor speed controller has an accurate and stable operation. Use it with confidence!
*Self Recovery Fuse: Overcurrent disconnects the fuse, and automatically recovers after a few seconds of cooling, the auto recover function of the fuse is very convenient and saves time and effort!
*Main Application: This DC motor controller operates smoothly with no noise no vibration,with power indication,wide duty cycle adjustment range.
*Large Controllable Space: 0‑100% stepless speed regulation allows you to have greater control over the process of using your equipment. Very convenient!
*Small Size: This DC motor speed controller is small in size, convenient for your installation and carrying.
Description
Feature:
1. Imported Chip: With built in imported chip, the DC motor speed controller has an accurate and stable operation. Use it with confidence!
2. Self Recovery Fuse: Overcurrent disconnects the fuse, and automatically recovers after a few seconds of cooling, the auto recover function of the fuse is very convenient and saves time and effort!
3. Main Application: This DC motor controller operates smoothly with no noise no vibration,with power indication,wide duty cycle adjustment range.
4. Large Controllable Space: 0?100% stepless speed regulation allows you to have greater control over the process of using your equipment. Very convenient!
5. Small Size: This DC motor speed controller is small in size, convenient for your installation and carrying.
How to Use:
Take out the product and install it for use.Â
Specification:
Item Type: DC Motor Speed Controller
Default Working Voltage: DC 5V-35V

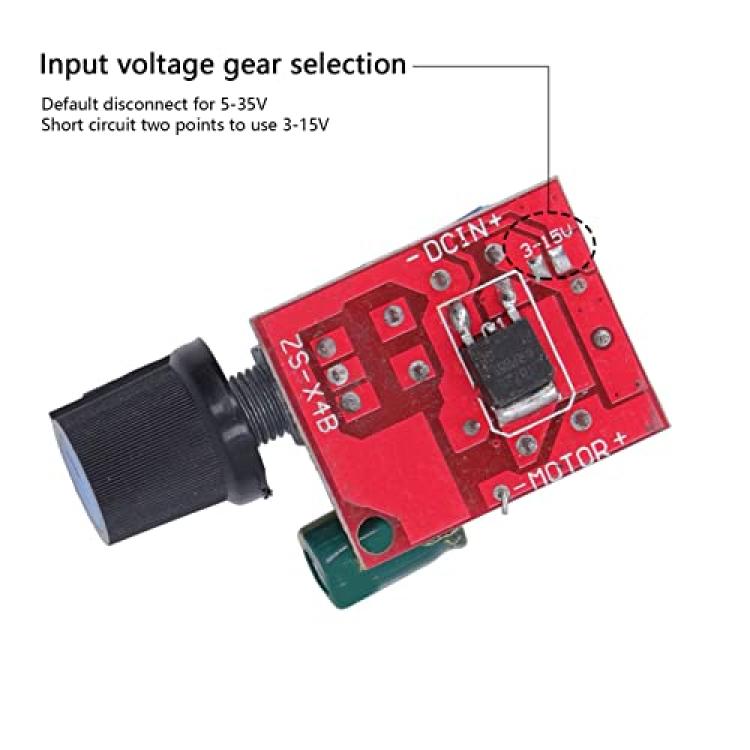

Non Default Two Point Short Circuit Working Voltage: DC 3V-15V
Control Power: 90W (Peak)
Quiescent Current: 0.015A (Standby State)
PWM Duty Cycle: 1% - 100%
PWM Frequency: 10KHz
Package List:
1 x Motor Speed Controller
