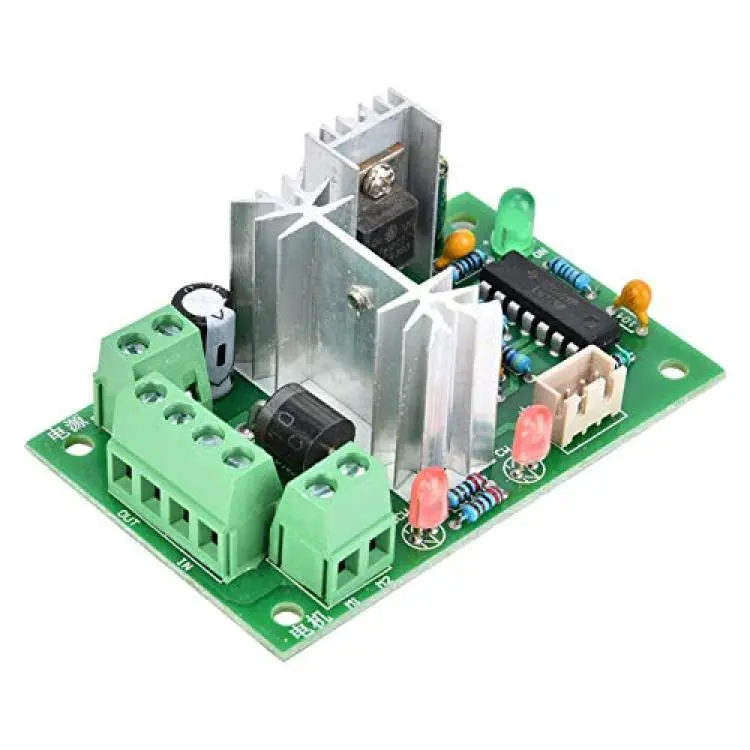

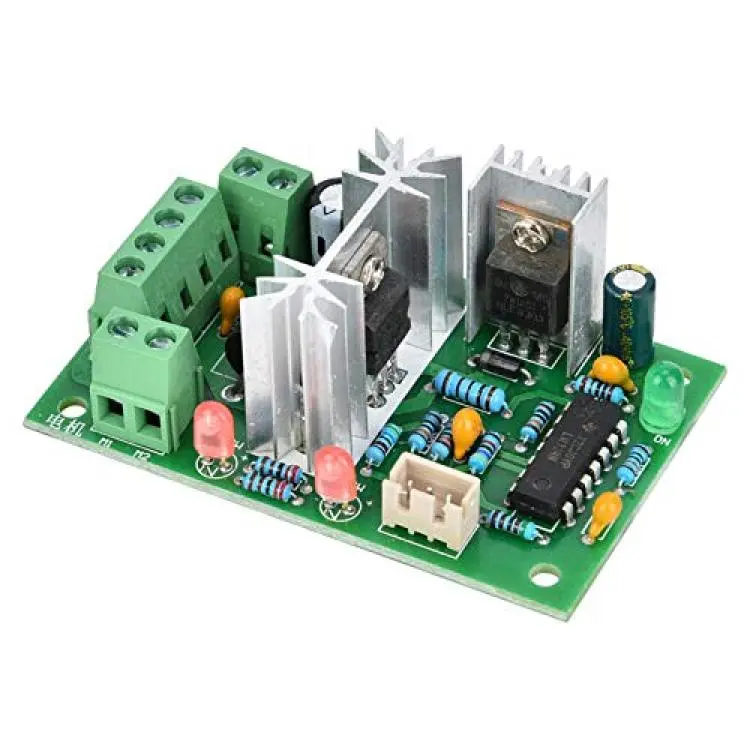

Speed Controller Stable 10A PWM Potentiometer Motor Control for Industrial

Features:
1. Made of high quality plastic and metal materials, durable to use.
2. High efficiency, high torsion and low heating
3. You can use this controller to control the speed of the DC motor
4. With reverse polarity protection, high current protection
5. This controller has potentiometer and CW/CCW switch

Specification:
Condition: 100% Brand new
Item Type: PWM DC Motor Speed Controller
Material: Plastic, Metal
Input: DC 6~30V
Output: up to 80W
PWM Range: 10%~95%
Current: up to 10A (recommended for use in 6A)
Size: Approx. 73.5 x 45.5 x 27mm / 2.9 x 1.8 x 1.1in

Package List:
1 x PWM DC Motor Speed Controller
1 x CW/CCW Switch
1 x Knob Cap
1 x Gasket
1 x Nut

Use Wring:
1. Connect the power cable to ensure that the CW/CCW switch is in the middle 0 position, connect the DC power supply, ensure that the DC power supply voltage range is greater than 10V, less than 30V, to ensure that the power output power meets the motor working needs. The DC power positive and negative terminals should not be reversed, otherwise The governor may be damaged.
2. Connect the motor, the motor line can be positive or negative.
3. Adjust the switch, the CW/CCW switch is used to control the motor speed direction. When the switch is at the 0 position, the motor stops.
4. Potentiometer knob, adjust the potentiometer knob to change the governor output duty cycle, motor speed changes.
