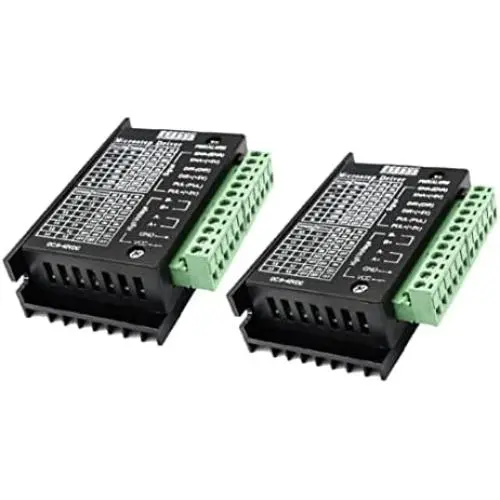

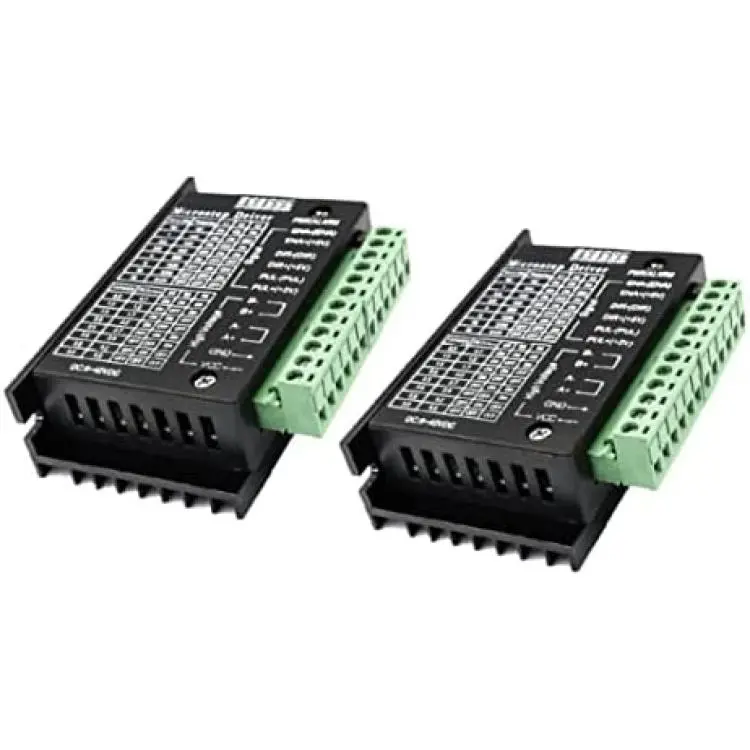

Tuimiyisou Stepper Motor Driver Controller TB660032 Module Board 42/57/86 Stepping CNC Motor 2PCS Industrial Control Components-Driver
About this product
*This Stepper Motor Driver Controller Module has integrated with parameter self-tuning function, which can automatically generate optimal operating parameters for different motors
*This Stepping CNC Motor is made of ABS material which is durable for long term use and it can provide a longer service life and a lower replacement frequency
*Our Stepper Motor Driver Controller Module Board will be helpful in your machine and it will make you feel ease
*The Stepper Motor Driver Controller can recieve the optical isolation signal input and has strong anti-interference ability. It also has over-voltage, over-current protection
*The Stepper Motor Driver has strong anti-interference ability, can achieve high precision positioning, low speed, little vibration and low noise in complex environment
Description
Description
The Stepper Motor Driver Controller can recieve the optical isolation signal input and has strong anti-interference ability. It also has over-voltage, over-current protection. The Stepper Motor Driver has strong anti-interference ability, can achieve high precision positioning, low speed, little vibration and low noise in complex environment.
Features
Stepper motor driver
-Color: As shown.
-Material: ABS.

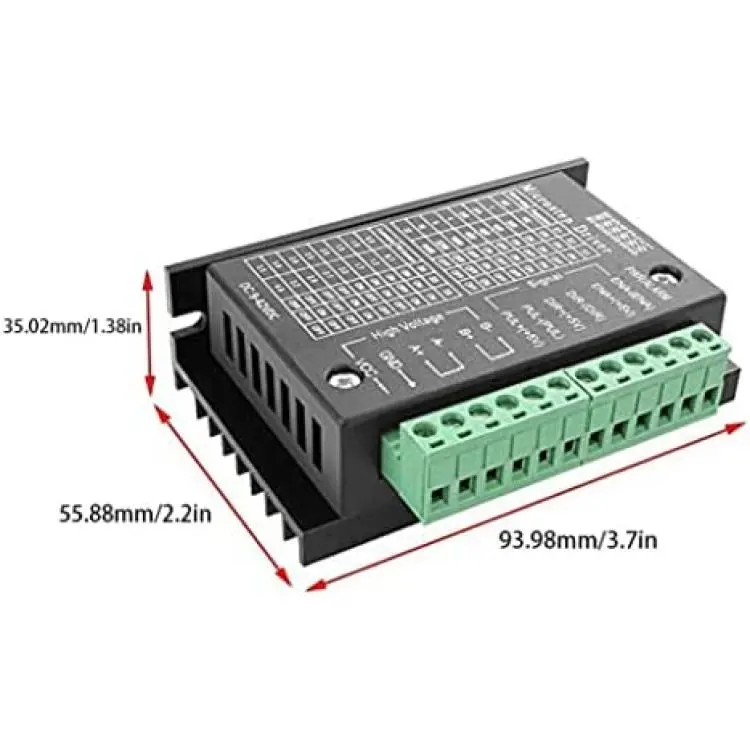

-Size: 93.98x55.88x35.02 mm/3.70x2.20x1.38 inch.

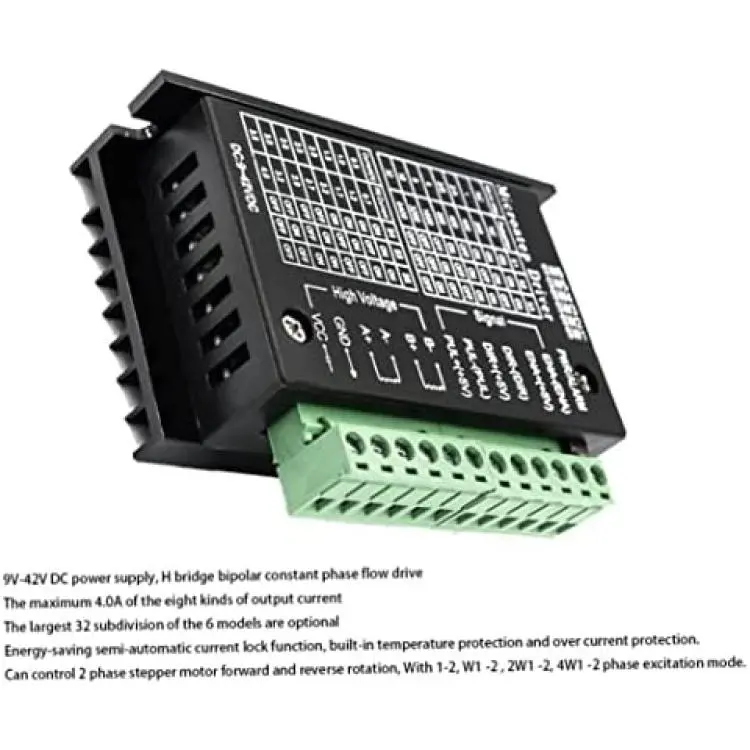

1. 9V-42V DC power supply
2. H bridge bipolar constant phase flow drive
3. The maximum 4.0A of the eight kinds of output current
4. The largest 32 subdivision of the 6 models are optional
5. Input signal high speed photoelectric isolation
6. Common-anodestandard single pulse interface
7. Offline to maintain the function
8. Energy-saving semi closed enclosure can be adapted to a more stringent environment
9. To provide energy-saving semi-automatic current lock function
10. Built-in temperature protection and over current protection.
11.Can control 2 phase stepper motor forward and reverse rotation, with 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode.
12.Only the clock pulse signal can be driven two-phase bipolar stepper motor to achieve low vibration, high efficiency work.
Note:
1. 1 Inch=2.54cm/1cm0.393inch.
2. Please allow 1-3 cm error due to manual measurement. Pls make sure you do not mind this.
Package Including
1 * Stepper motor driver
