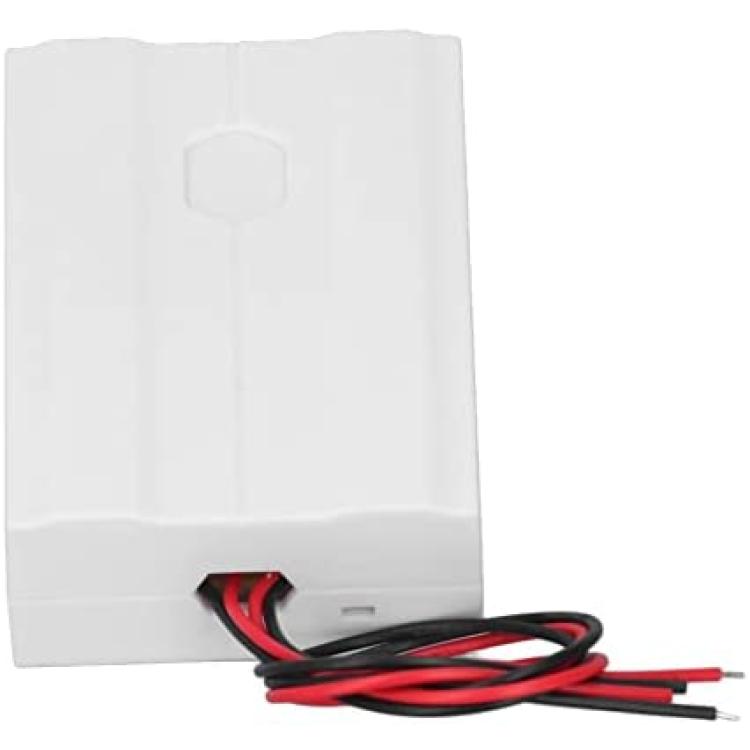

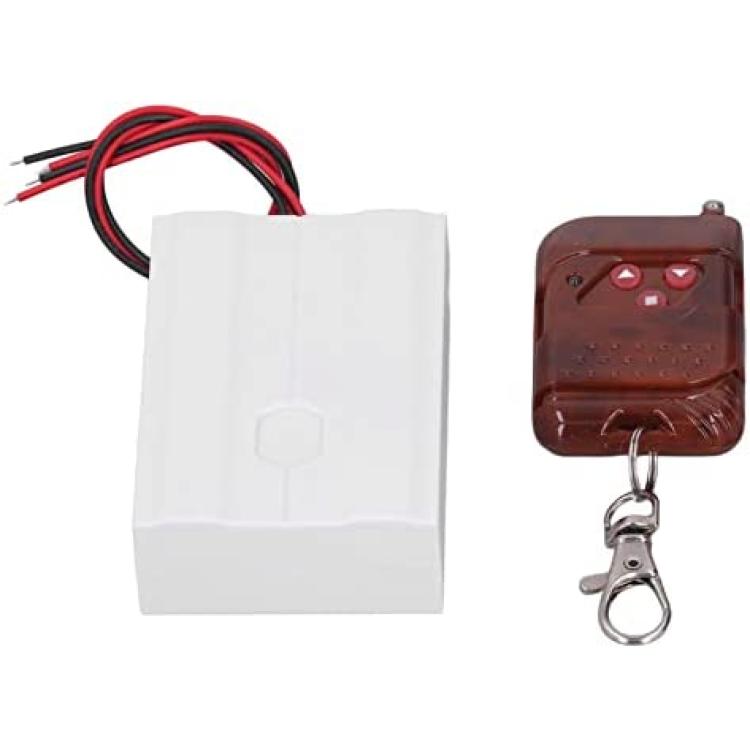

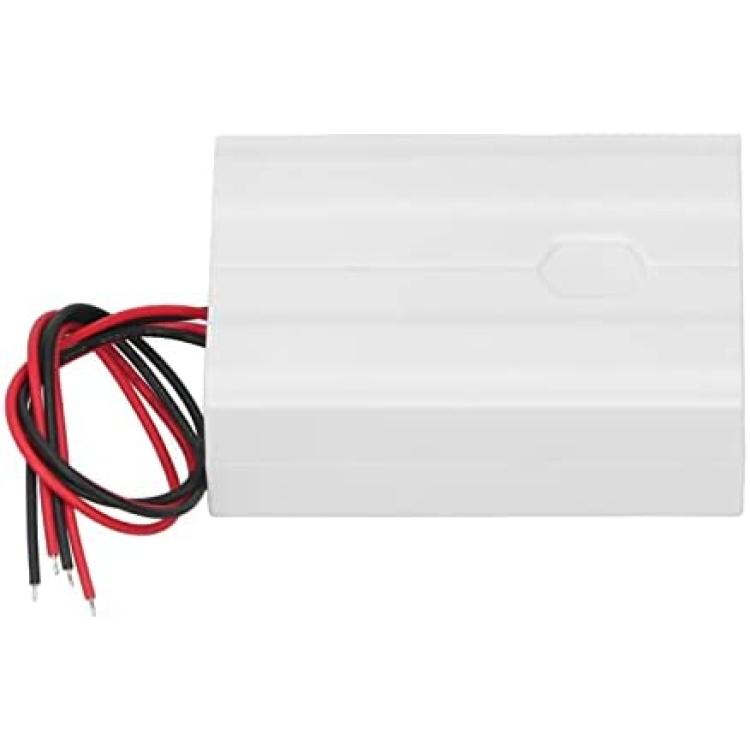

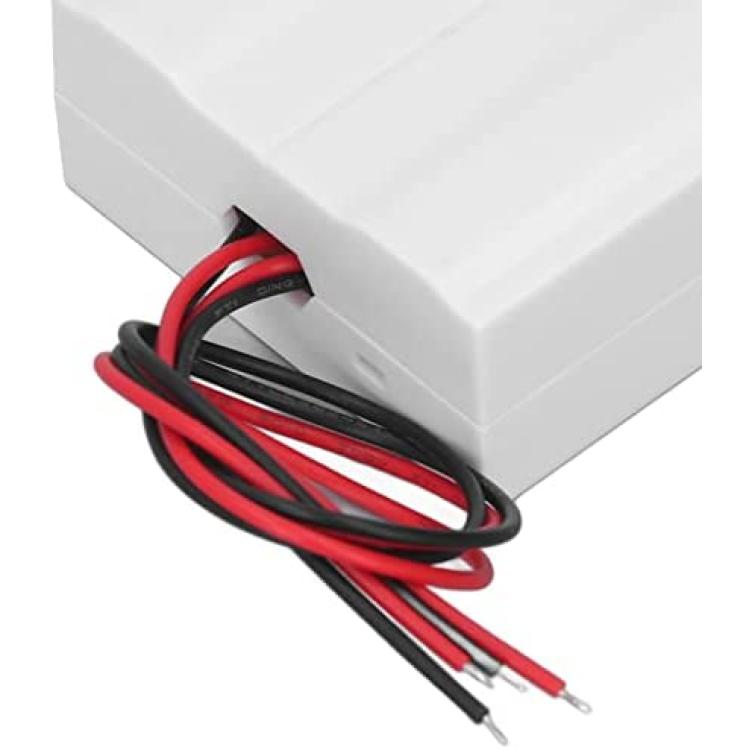

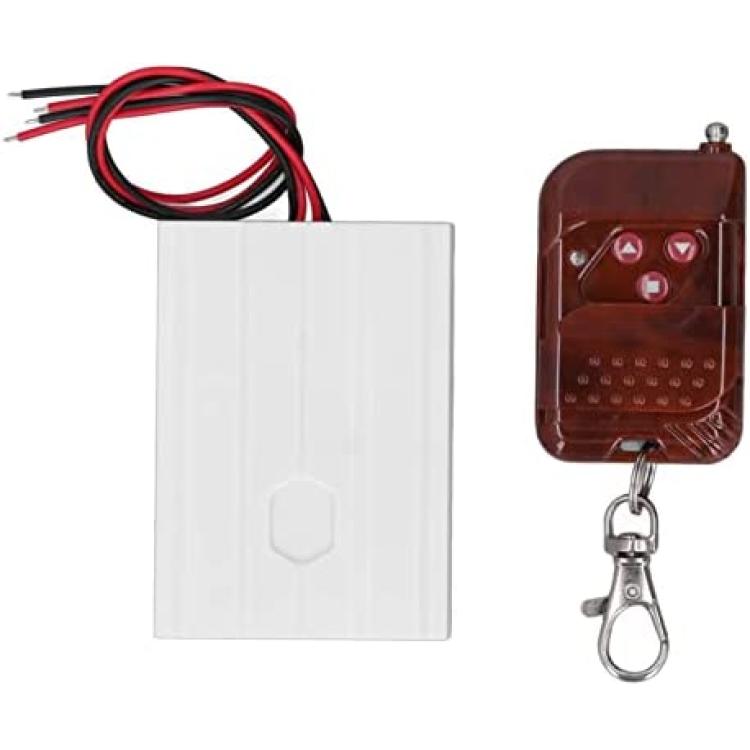

Omabeta DC Motor Remote Control, Interlock Momentary ABS Shell Motor Wireless Remote Controller for Electronic Lock
About this product
*Forward and Reverse Control: This remote control can be used for forward and reverse control of various single capacitor small motors.
*Good Performance: The remote control can control the motor through wall, and the distance is up to 300m in open and unobstructed places.
*High Sensitivity: The remote control built in super heterodyne receiver module, which has high sensitivity and accuracy.
*Multiple Modes: The remote control has multiple modes, including interlock, momentary, default interlock, the modes can be freely adjusted.

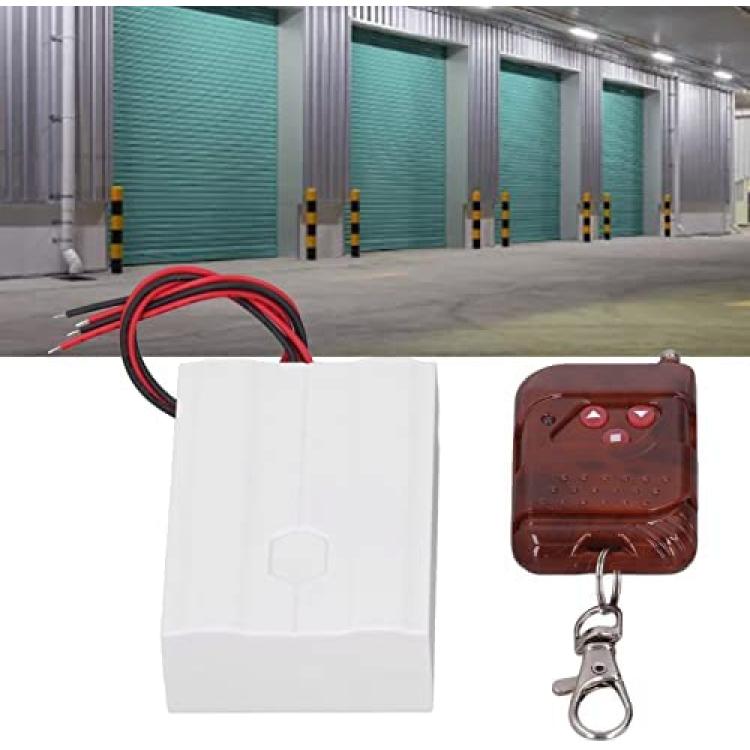

*Wide Application: Suitable for wireless control of lamps, electronic locks, access control, gates, garage doors, retractable doors, rolling gates, etc.
Description
Feature:
1. Forward and Reverse Control: This remote control can be used for forward and reverse control of various single capacitor small motors.
2. Good Performance: The remote control can control the motor through wall, and the distance is up to 300m in open and unobstructed places.
3. High Sensitivity: The remote control built in super heterodyne receiver module, which has high sensitivity and accuracy.
4. Multiple Modes: The remote control has multiple modes, including interlock, momentary, default interlock, the modes can be freely adjusted.
5. Wide Application: Suitable for wireless control of lamps, electronic locks, access control, gates, garage doors, retractable doors, rolling gates, etc.
How to Use:
Install and can be used.
Specification:
Item Type: DC Motor Remote Control
Material: ABS
Working Voltage: DC 12V 24V
Sensitivity: -110dBm
Quiescent Current: ?6mA
Transmit Power: > 10mw
Operating Frequency: 433MHz
Modulation Method: ASK (amplitude modulation)
Operating Temperature: -20°C to +70°C
Remote Control Distance: Open space(barrier free) 300 meters
Working Mode: Interlock, momentary (default interlock, can be adjusted freely)
Scope of Application: Wireless control of DC motors, gates, rolling gates, rolling shutter machines, etc.
Remote Control Battery Parameters (Battery Built in):
Battery Type: Alkaline Dry Battery
Battery Model: 12V 23A
Battery Capacity: 50mAh
Package List:
1 x Signal Receiving Box1 x DC Motor Remote Control
