Calvas 433MHZ Remote Control Learning Code DC 12V Door Lift Linear Actuator Motor Controller Wireless Remote Control Kit

EA0003087
Specifications:
Input Power: DC12V
RF Frequency: 433MHZ
Receive sensitivity: -105dbm
Transmitting distance: >100m (pen space)
Decoding mode: MCU software decoding
Support remote type: Learning code
Size of PCB: approx. 68 x 48 x 18mm

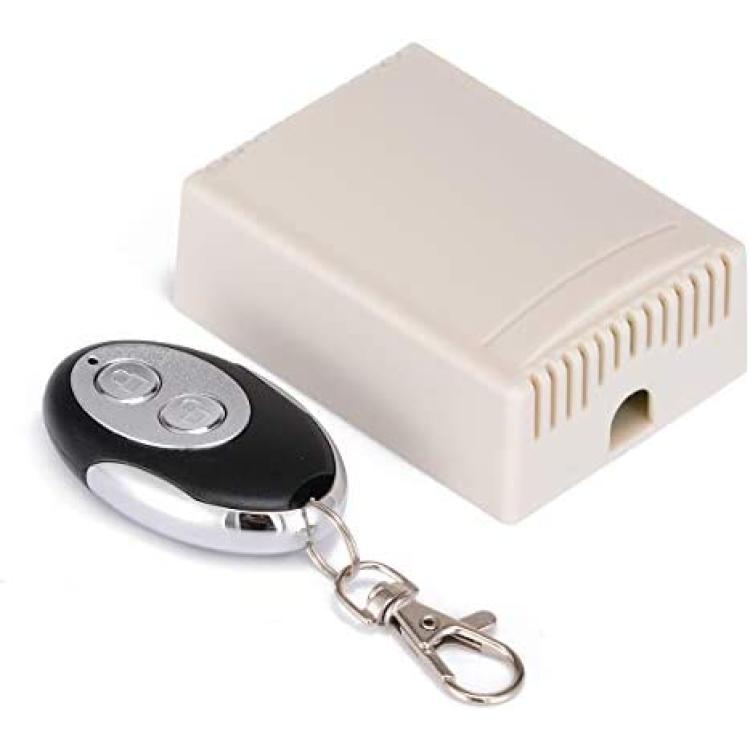

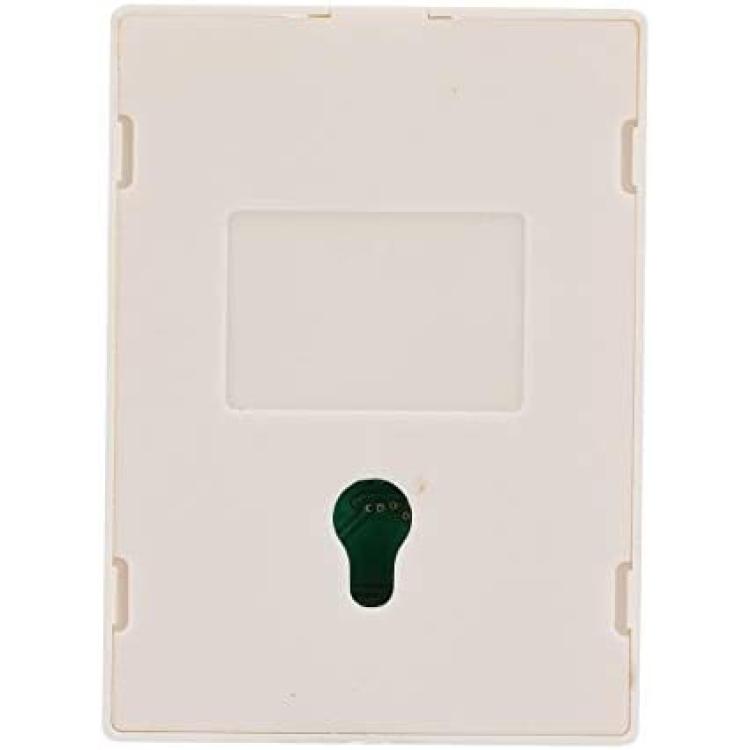

Size of Shell: approx. 76 x 56 x 30mm
Wiring Diagram:
+V: 12V + input
GND: 12V - input
Motor: 12V DC Linear output
Learning code:
Push the learning key on the receiver once time, the LED will be on.
Push the remote button , LED indicator on the receiver board will flash for 3 times.
After that,the learning code is matched successfully.
Clearing code:
Press the learning button on the receivers until the led Light stop flashing ,the codes will be cleaned.
After clearning the code, all the remote control cannot work any more.
Package includes:

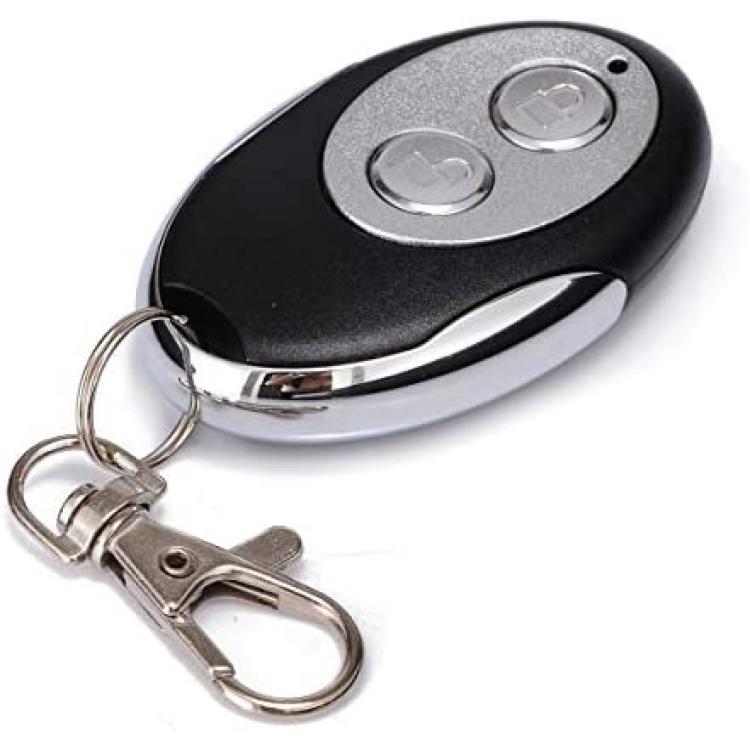

1x Remote Control Switch

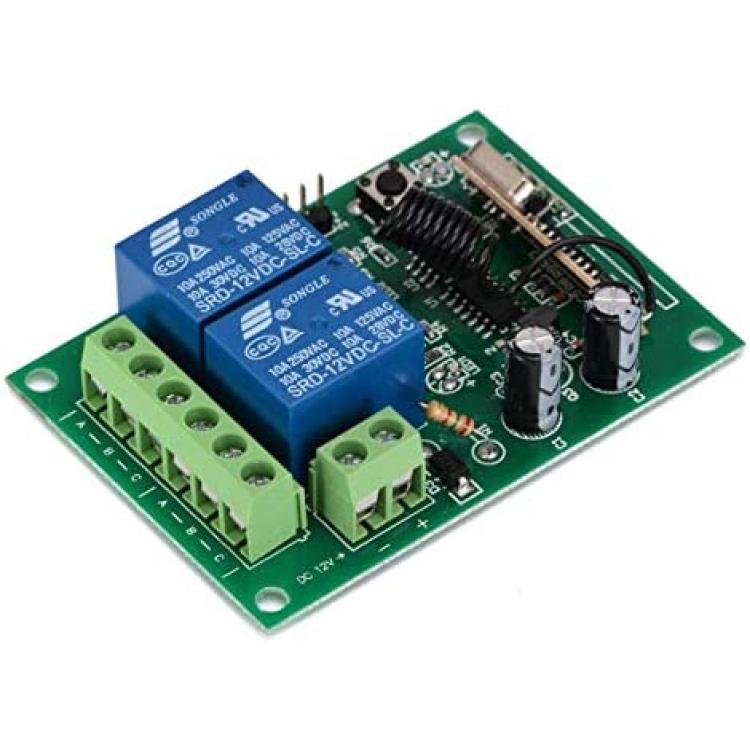

1x Reciever Board

Item specifics:
Use: Electric Door
Use: Universal
Wireless communication: IR
Model number: linear actuator remote controller
Package: No
Channel: 2
Frequency: 433 MHz
Support app: No
