Calvas 1pc 12V Door Lift Linear Car Actuator Motor Controller 433MHZ Wireless Remote Control Kit Calvas

EA0003087
Specifications:
Input Power: DC12V
RF Frequency: 433MHZ
Receive sensitivity: -105dbm
Transmitting distance: >100m (pen space)
Decoding mode: MCU software decoding
Support remote type: Learning code
Size of PCB: approx. 68 x 48 x 18mm
Size of Shell: approx. 76 x 56 x 30mm
Wiring Diagram:
+V: 12V + input
GND: 12V - input
Motor: 12V DC Linear output
S1/S2: Limit switch output
G: Limit switch output
GD: Limit LED output
Learning code:
Push the learning key on the receiver once time, the LED will be on.
Push the remote button , LED indicator on the receiver board will flash for 3 times.
After that,the learning code is matched successfully.
Clearing code:
Press the learning button on the receivers until the led Light stop flashing ,the codes will be cleaned.
After clearning the code, all the remote control cannot work any more.

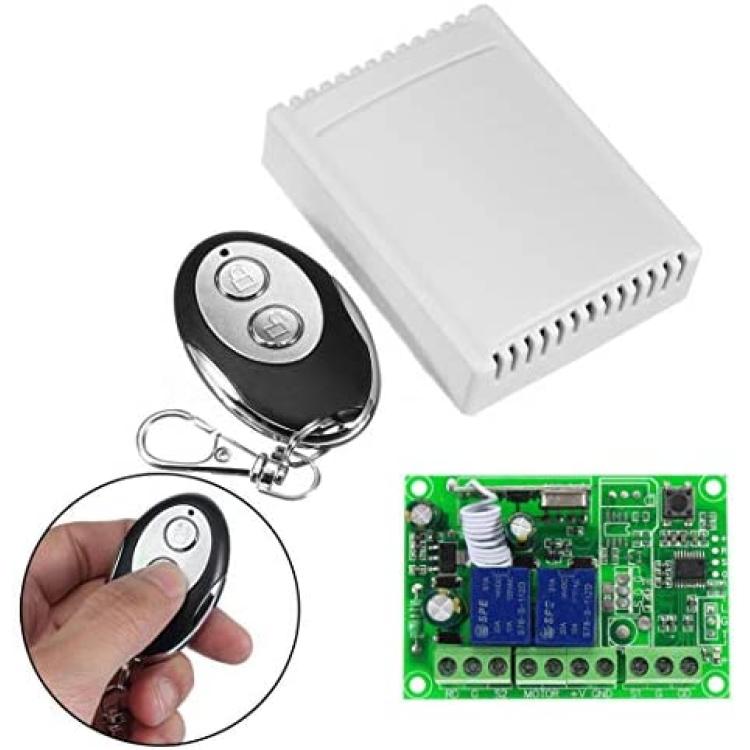

Package includes:

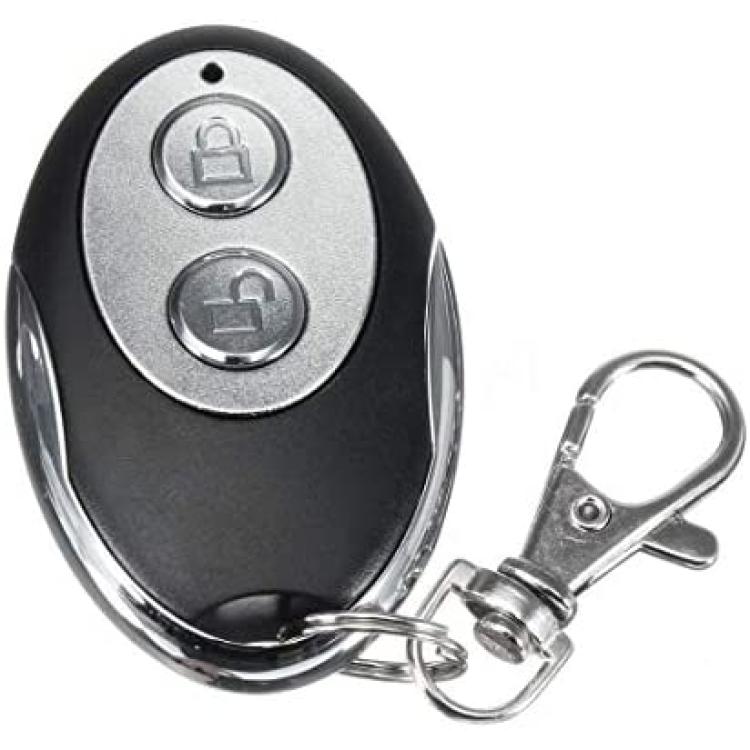

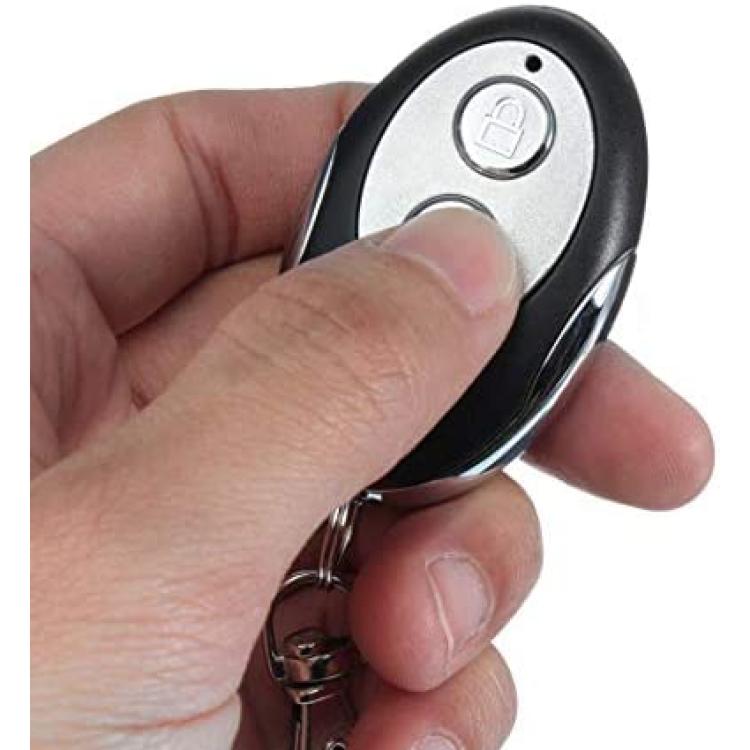

1x Remote Control Switch

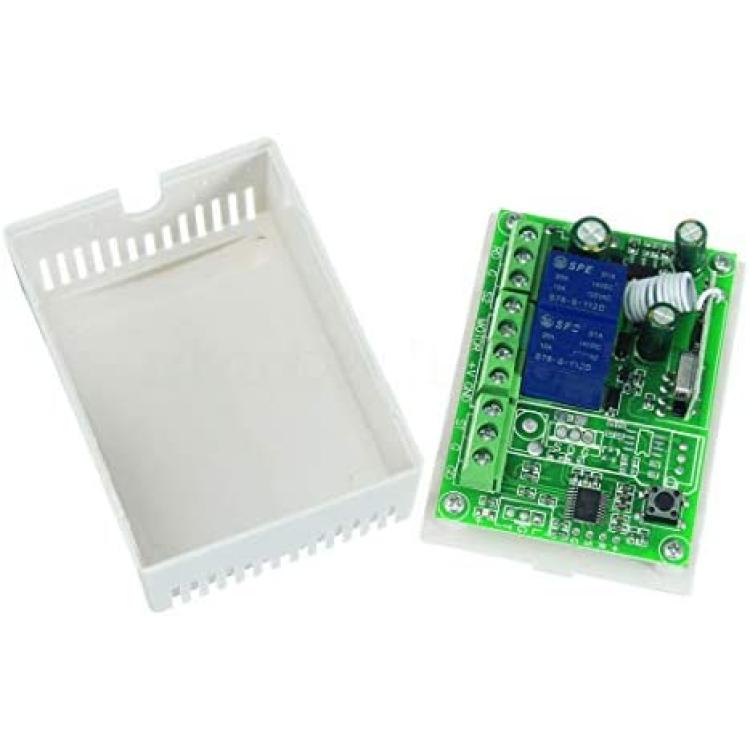

1x Reciever Board
