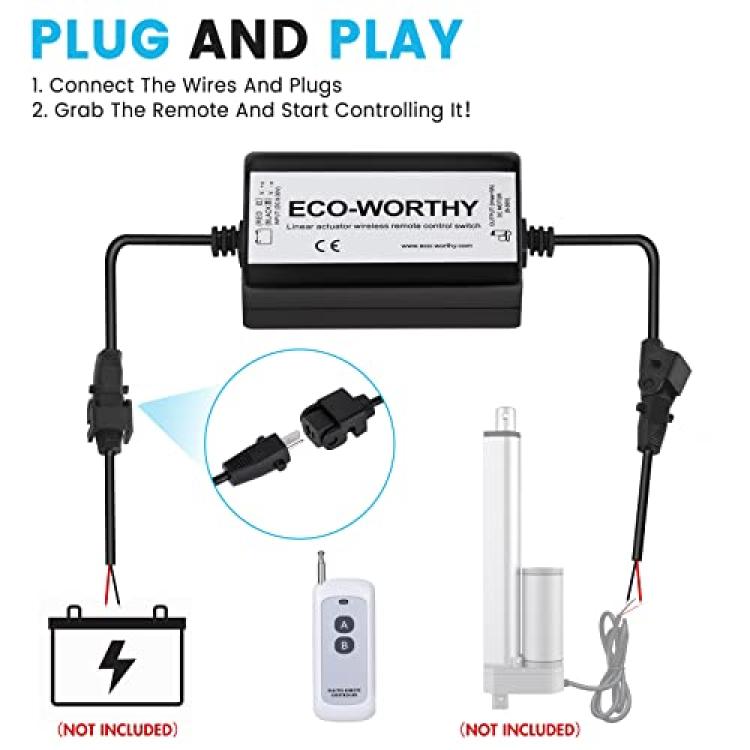

ECO LLC Linear Actuator Controller DC8-30V Wireless Remote Motor Control Switch Kit 5A
Availability: Pre-Order, Inquiry Price
About this product
*Application:Our Linear Actuator Controller Suitable for Different Kinds of Linear Actuator.
*It is a forward-reverse controller, which enables the motor moving forward --stop-- backward，clockwise--stop--counterclockwise.
*Remote control comes along with forward-reverse controller enables distance controlling.
*Widely input voltage for 8-30V Motor , high-current output (max output is 5A), Remote control distance can reach 5 meters .
*Can only be used with 1 single linear actuator.(Linear actuator Not conclude)
Description
Specifications
Input Voltage:8-30V
Output Voltage:8-30V
Max Amps:5A
Prevent Back-connect Protection: Yes
Remote Control Distance:Less than 5 meters
Control Method:Pointing Control
Specific functions are described below:
1.Keys A control insist positive turn: When you press A, the motor action by corotation, stop when you loosen.
2.Keys B control insist reverse turn : .When you press B, the motor action by reversal, stop when you loosen .
Notes:
1.The supply voltage, motor voltage and operating current should be within the allowable range.
2.This is not waterproof cotroller, please keep it dry and clean and avoid from direct sunlight.
3.Do not make the forward and reverse turn in a short time.
4.The capacity of the load is in inverse proportion to the remote distance. ,the bigger the shorter .The controller can work well when it is used in the straight line without any sheid ,if there is any shade ,it will influence the control distance .
5.It needs to replace the battery inside the remote controller when the remote control distance is shorter than before.
Package Included:

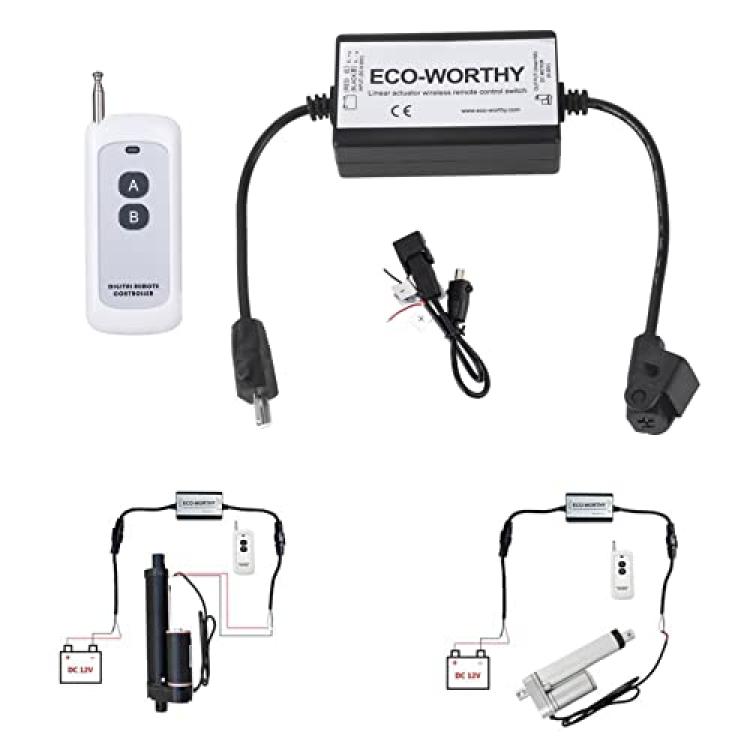

*1PCS Wireless Remote Control Switch
*1PCS Wireless Remote Controller
