GOWE 400w DC 24V-52V motor 12000rev/min speed universal mach3 spindle /52mm holder/speed controller/power supply
About this product

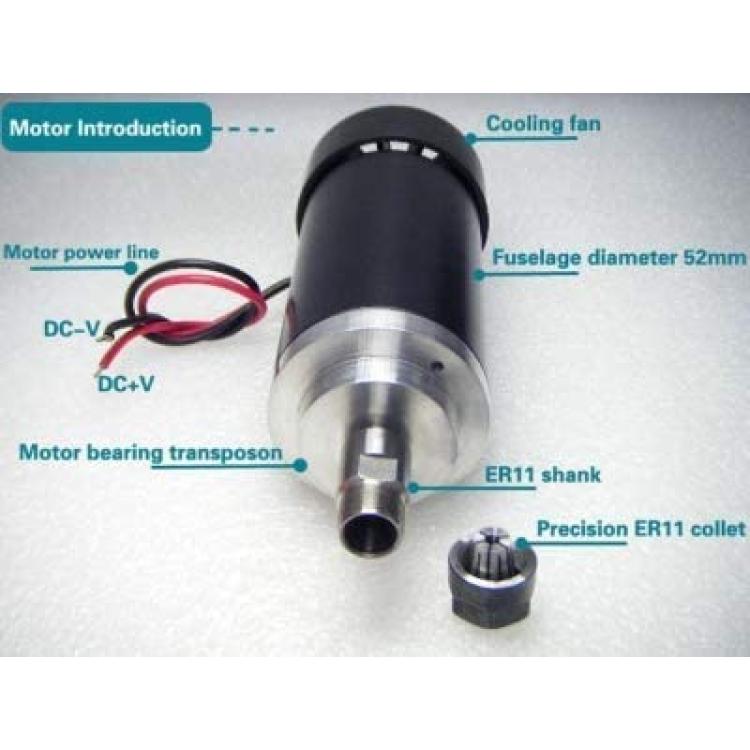

*400W CNC Spindle Motor Kits PWM Speed Controller With Mount Bracket; Description: 400W CNC Spindle Motor Kits PWM Speed Controller With Mount Bracket; Description ; High-speed 400W air-cooled motor, can used to make DC spindle, Small noise, Strong strength. Motor modified the clamping device and adopt CNC lathe machining. PWM Speed controller: Support AC and DC input; DC Input : DC 15-160V; AC Input : 12-110V input; Support Current :10 A ;
*PWM input : level 3.5-12V VPP; Frequency :1K-10KHZ(Particularly suitable for MCH3 spindle speed control.); Spindle Motor Technical parameters: Spindle motor: New DC motor; Power: 400W; Operating voltage 12-52VDC; Maximum working current: 9A; Maximum Power: 0.4KW; Rotation Speed :3000-12000r / min. Torque: 350mN.m; Insulation resistance:> 2 megohm; Dielectric strength: 400V

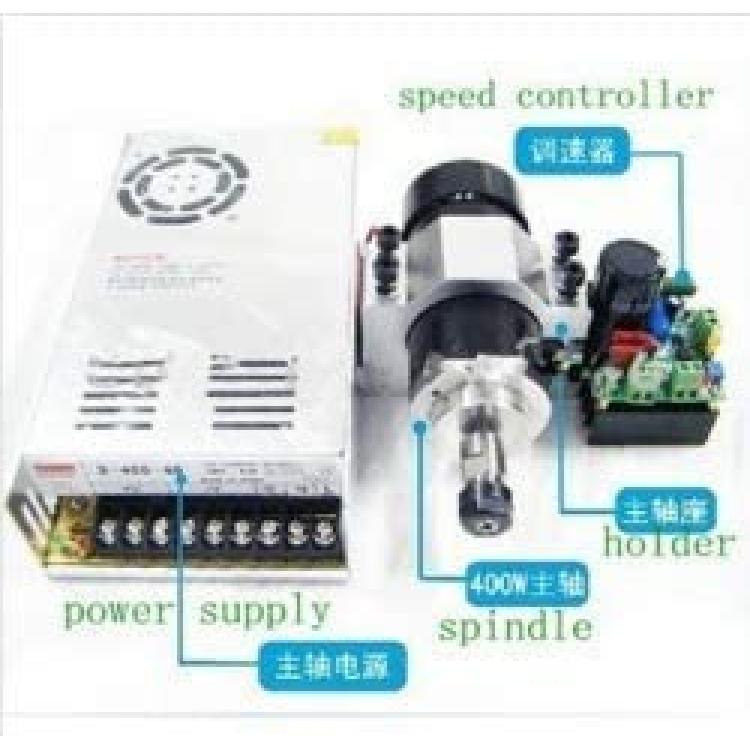

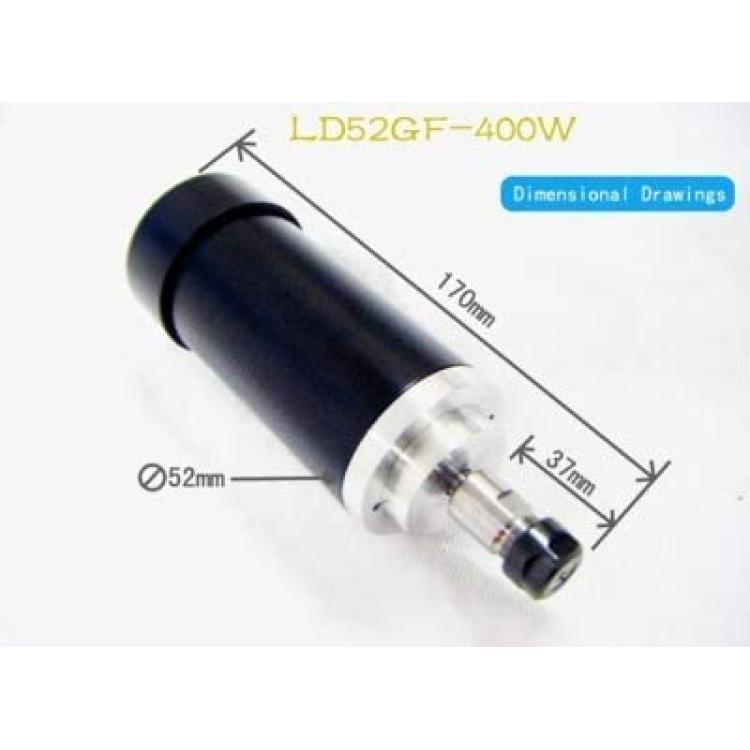

*Diameter: 52mm; Motor Overall length: 170mm (includes gripping parts and motor); Axis collet Length: 37mm; Diameter of ER11-A clamping holder:16mm; The spindle runout: about 0.01-0.03.; Weight: 1.5kg Can be used for engraving metal or nonmetal materials.Package includes: 1 x 400W Spindle Motor; 1 x PWM Speed controller; 1 x Mount bracket; 4 x Screws; 1 xpower supply 400W 48V
*400W CNC Spindle Motor Kits PWM Speed Controller With Mount Bracket; Description: 400W CNC Spindle Motor Kits PWM Speed Controller With Mount Bracket; Description ; High-speed 400W air-cooled motor, can used to make DC spindle, Small noise, Strong strength. Motor modified the clamping device and adopt CNC lathe machining. PWM Speed controller: Support AC and DC input; DC Input : DC 15-160V; AC Input : 12-110V input; Support Current :10 A ;
*PWM input : level 3.5-12V VPP; Frequency :1K-10KHZ(Particularly suitable for MCH3 spindle speed control.); Spindle Motor Technical parameters: Spindle motor: New DC motor; Power: 400W; Operating voltage 12-52VDC; Maximum working current: 9A; Maximum Power: 0.4KW; Rotation Speed :3000-12000r / min. Torque: 350mN.m; Insulation resistance:> 2 megohm; Dielectric strength: 400V
Description
GOWE 400w DC 24V-52V motor 12000rev/min speed universal mach3 spindle /52mm holder /speed controller/power supply
