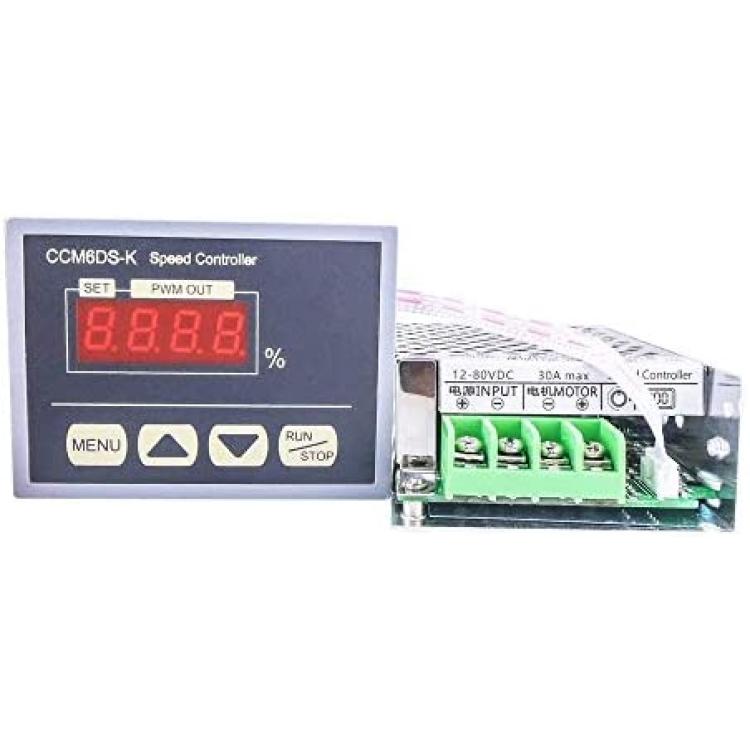

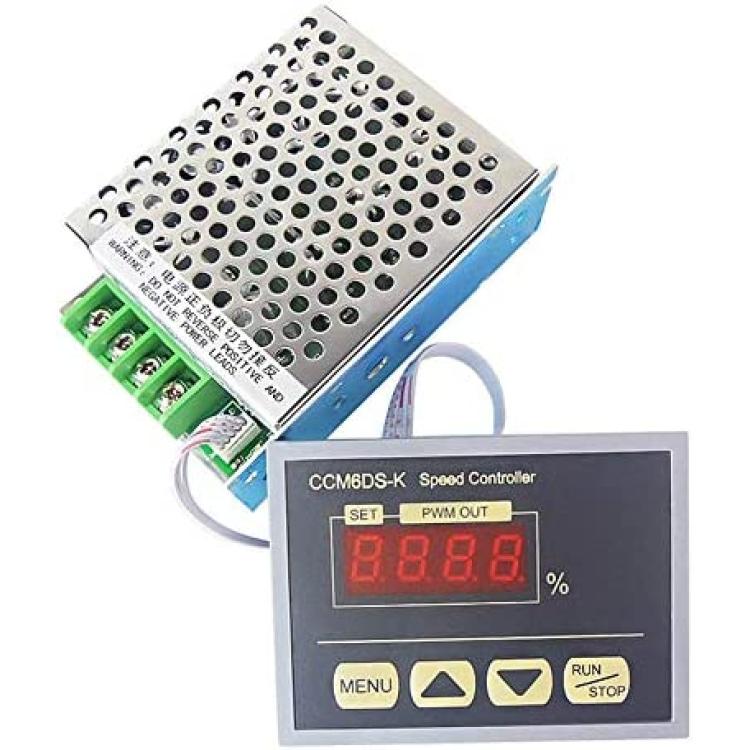

DC 12-80V Digital Display Speed Controller Motor Controller 30A

Parameter:
Model: CCM6DS-K
The output voltage is about 0-100% of the input voltage
Input voltage: DC12V-80V
Control power: Suggestions: 12V-in 250W, 24V-in 350W, 48V-in 500W
Maximum current: 30A
Speed ????adjustment range: 0%-100%
Size: 110mm*77mm*36mm (controller)

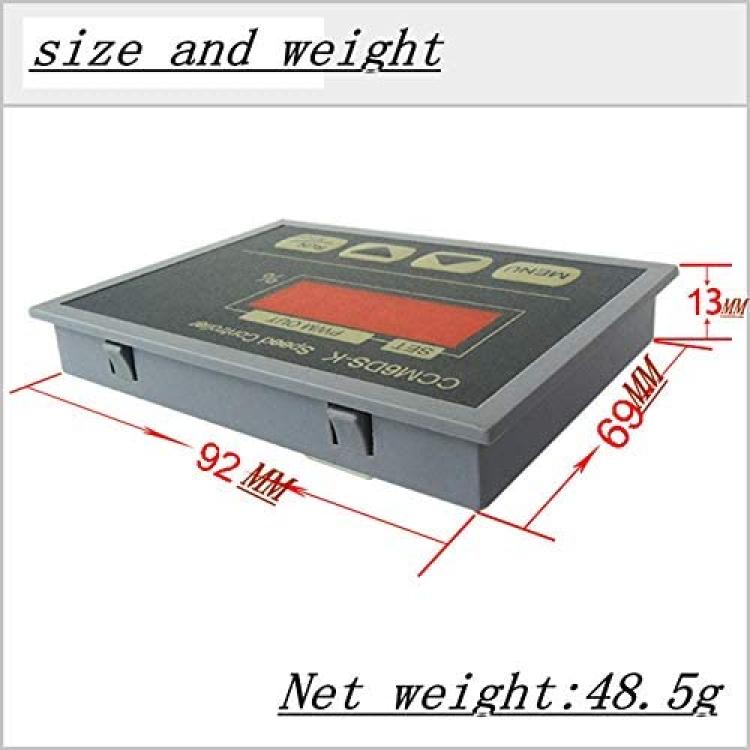

92 mm* 69mm* 13mm (panel)
Weight: 190g
PWM frequency: 21kHz

Package include:
1x A set of digital display controller

Function settings:
SET 1 (set slow start):
"000"-"100", the slow start to 100% speed time is adjustable between 0-10.0 seconds, the default is 1 second.

SET 2 (set slow stop):
"000"-"100", the slow stop time is adjustable between 0-10.0 seconds, the default is 1 second.

SET 3 (set minimum speed):
"000"-"080", the minimum speed is adjustable between 0-80%, and is less than the maximum speed setting value, the default is 0.

SET 4 (set maximum speed):
"000"-"100", the maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value,the default is 100%. SET 5 (setting the speed adjustment value):
"001", "002", "005", "010", "015", "020", "025", each time you press the plus and minus key, the speed will change by 1%, 2%, 5%, 10%, 15%, 20%, 25%.

Note?
The positive and negative poles of the power supply of the governor cannot be connected reversely, as the reverse connection will directly damage the governor!
