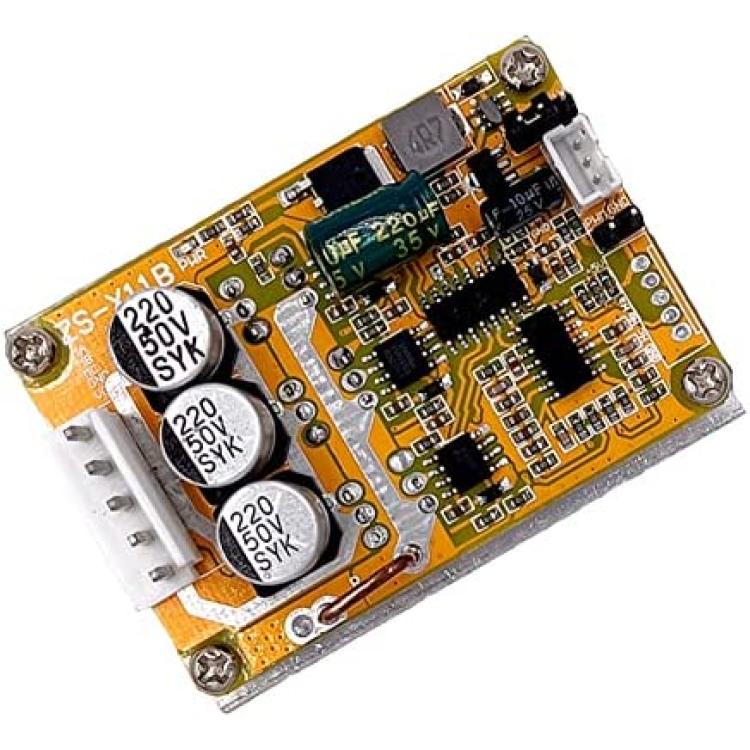

Taidacent 350W High Power 5 12 24V Brushless DC Three-Phase Motor Driver Controller Board PLC 0-5V Analog Control BLDC Speed Controller Forward and Reverse (with Hall)
About this product
*1. There is no fuse in the power supply circuit on the motherboard. Jianyi has added it himself. Reverse connection of the positive and negative poles of the power supply will cause permanent damage to some of the chips on the board (even if it is not possible for 2 seconds)
*2, The output terminal of the motor has sampling overcurrent protection during normal operation. Since the power and current of the module are large, please do not artificially short-circuit the module when the module is not working normally.
*3. Do not connect the motor that is obviously inconsistent with the voltage, current and power of the drive module or is far from the motor, to avoid inexplicable "nonsensical" damage
*4. After receiving the goods, if you are unclear about the wiring and use, please contact us as soon as possible. Even if there is a problem with the use of the product, you can negotiate and handle it properly.
*5. The motor cannot start normally or it is difficult to start (sometimes it needs to manually turn the motor to start), if the wiring phase is wrong. Please cut off the power immediately, otherwise, it is easy to damage the drive instantly
Description
BLDC wide voltage 5-36V high power 350W DC three-phase brushless with Hall controller/no Hall controller, newly added PLC 0-5V analog quantity control speed regulation and forward and reverse control PWM duty cycle control speed regulation, The product is suitable for DC brushless/Hallless motors with an electrical angle of 120 degrees
Note: Check the wiring carefully before powering on, reverse connection or wrong connection of the Hall wire, the drive board is likely to be burned out by the instantaneous high current.
Parameter
Working voltage? 5V-35V
Load capacity?15A 350W
Overcurrent protection? Yes
Maximum power? 350W
Working environment temperature? -40~85 degrees Celsius
Size (mm)? length63*width 45*height 28
Working mode? Open loop (low speed and high torque, closed loop can be made according to requirements)
Product use?Vehicle, household, industrial equipment, etc.
