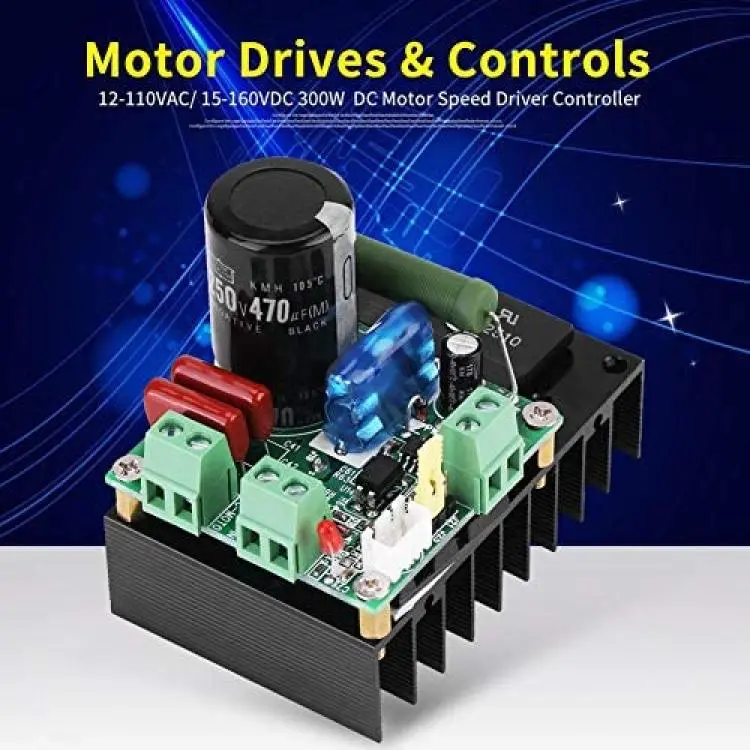

Riuty DC Brushless Motor Controller, 15-160V DC 12-110V AC 5A Motor Regulator Control Module High Power Motor Controller Driver Board for 12 v-110v ac /15-160 vc

Descriptions:

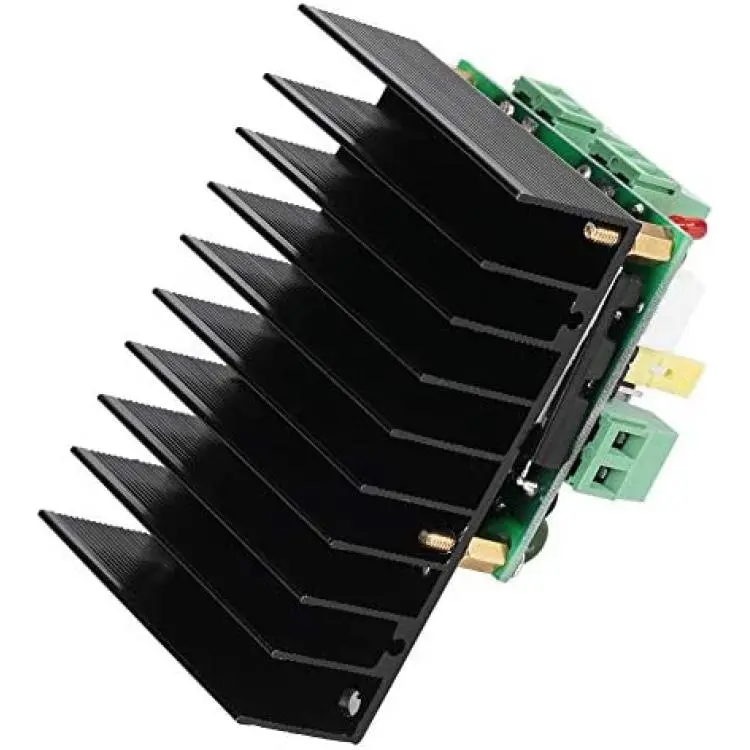

This motor speed controller can support AC and DC input. Non-existent power supply polarity problems.Large heat sink with mounting holes. and with a wide range of support motor. It can be used to control most of the DC motor in the market

Features:
Can support AC and DC input. Non-existent power supply polarity problems. Ultra-high voltage scope, support 15-160VDC Input, support 12-110VAC input. Large heat sink with mounting holes. Ultra-high-power control. support 5A current.

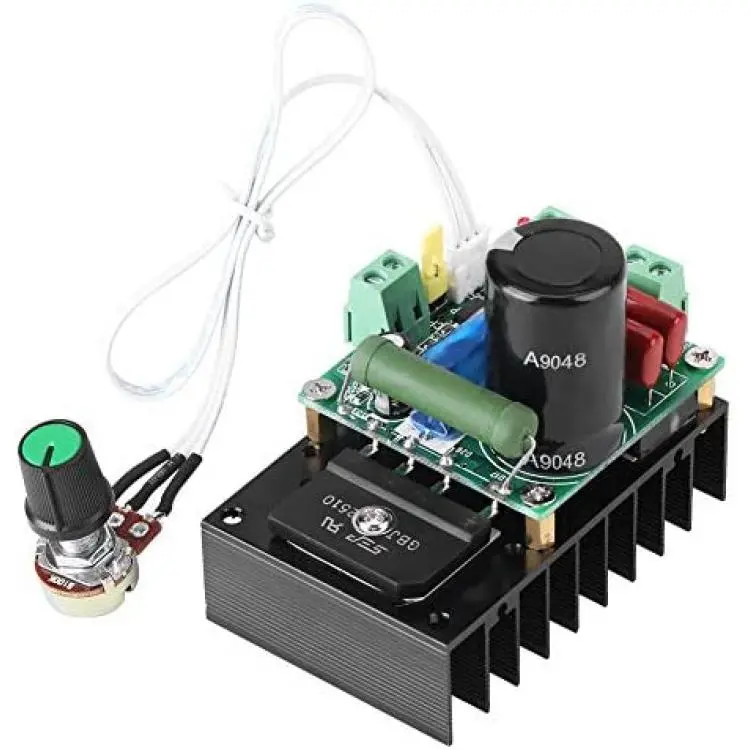

Except the board inside a PWM speed control, can also support an external PWM signal input speed control, external PWM input requirements: level 3.5-12V VPP, the frequency of 1K-10KHZ, the duty ratio is 0% to 93%.
In particular apply in MCH3 spindle speed control. when with external PLC control, a 2K resistor is used. A wide range of support motor. It can be used to control most of the DC motor in the market. As long as the DC resistance of the motor is > 2 Ohms DC resistance .
The conversion rate is about 97%, and the power of the plate is different when the voltage is different. 160VDC,2A motor load, limit no more than 2W. This drive can't fit for the DC motor that DC resistance is <2 Ohm
When the control board is equipped with DC Motor, following conditions must meet: current<5A, resistance>2R, Voltage <110V Equipped with a fuse protection and better performance. The high power limiting resistance is adopted to reduce the heating of the whole module and improve the working stability.

Specifications:
Voltage input: 15-160VDC ,12-110VAC
Max current:5A current

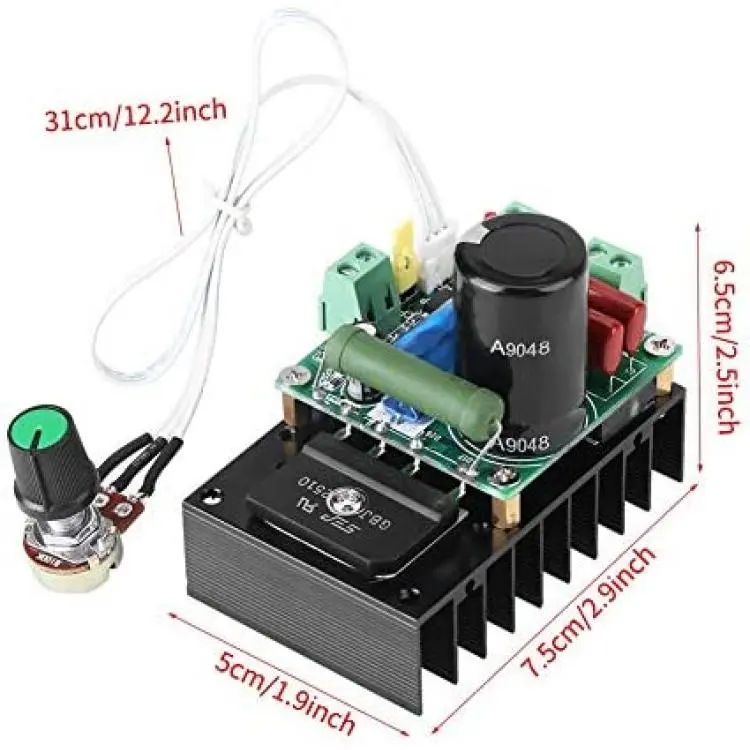

Weight:135g
