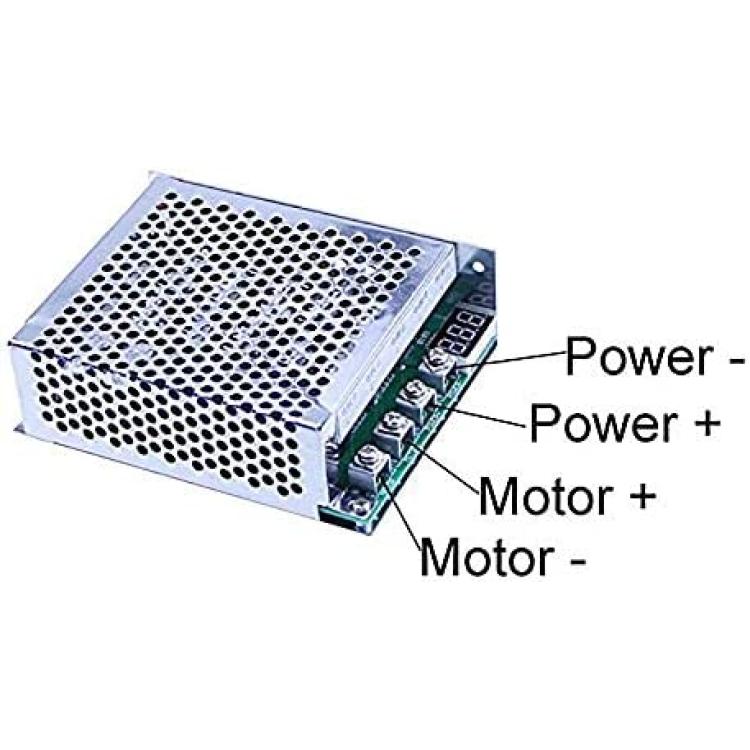

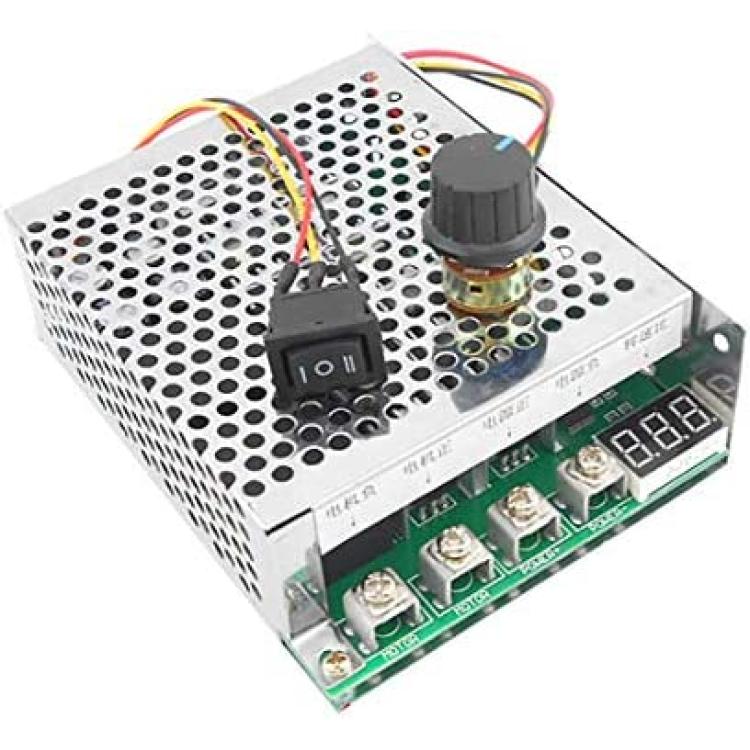

DollaTek 10V-55V 12V 24V 36V 40A DC Motor Speed Controller Forward Reverse Adjustable Knob Switch Plus Control Driver with Digital Display
Availability: Pre-Order, Inquiry Price
About this product
*Input supply voltage: DC 10V-55V；Maximum current: 60A； Continuous current: 40A;Speed range: 0-100%
*Potentiometer with switch function,High power speed controller switch which is much more adaptable
*DC10V-55V PWM Brushed DC Motor Speed Controller Adjustable Driver CW CCW Reversible Switch With Digit Display
*The input voltage must differentiate "+" ,"-",The input voltage should be equal to the rated voltage of the motor within 10-55V,or it will be burnt.
Description
Description:
10V-55V 12V 24V 36V 40A DC Motor Speed Controller Forward Reverse Adjustable Knob Switch Plus Control Driver with Digital Display
Specifications:
Motherboard size: 100*76*28MM? Shell size: 110*78*38MM
Brand New and high quality
Forward & Reverse: Support
Regulation Method: Potentiometer with switch
PWM frequency: 15KHZ
Wiring Type: terminal Knob
Rotary Knob: 100K(with switch)
Suitable for: Brushed DC motor
Bidirectional rotation: setting direction of rotation is optional, which means that accomplishes reversing the motor's direction
Note: The digital display is the motor full speed percentage 0-100 non-motor actual speed
Package Included:
1 x 10V-55V 12V 24V 36V 40A DC Motor Speed Controller Forward Reverse Adjustable Knob Switch Plus Control Driver with Digital Display
