PWM DC Motor Governor 6V12V24V 3A Adjustable Speed Controller With Forward Reverse Switch Rotatable Control Knob Pack of 2
About this product

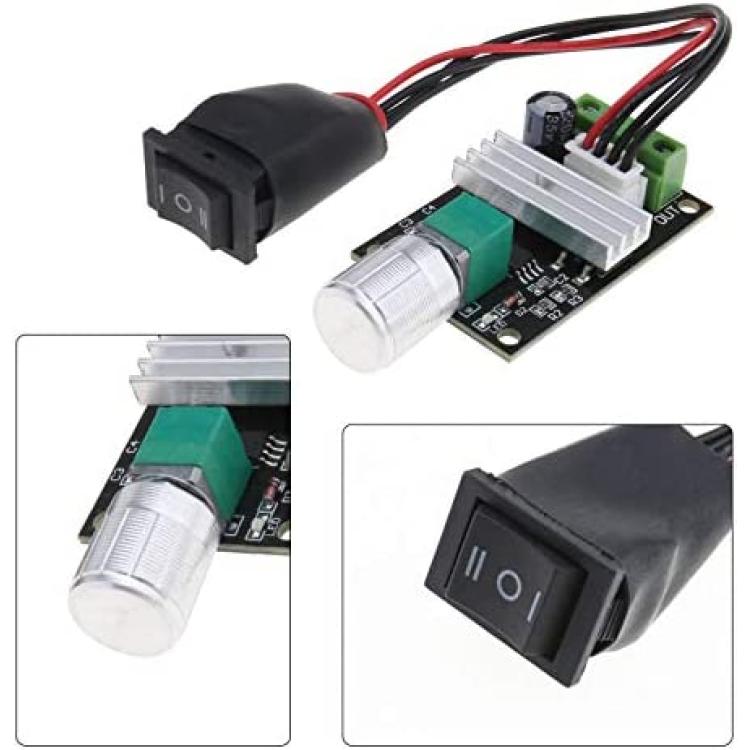

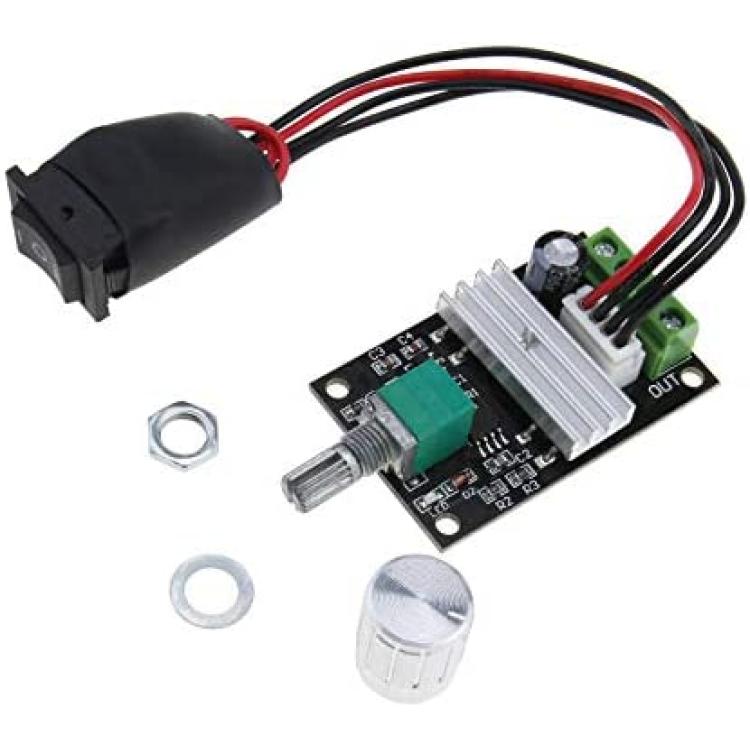

*PWM DC Motor Governor: Low voltage dc motor governor module with positive inversion control switching button and rotatable control knob.
*Usage: Allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage, can adjust from 10%-100%.
*Application: Input supply voltage is DC 6V-28V. Maximum continuous output current is 3A. Maximum output power is 30W.
*Protection Function: It will be automatically disconnected, and the fuse will automatically recover after cooling when the current is too large.

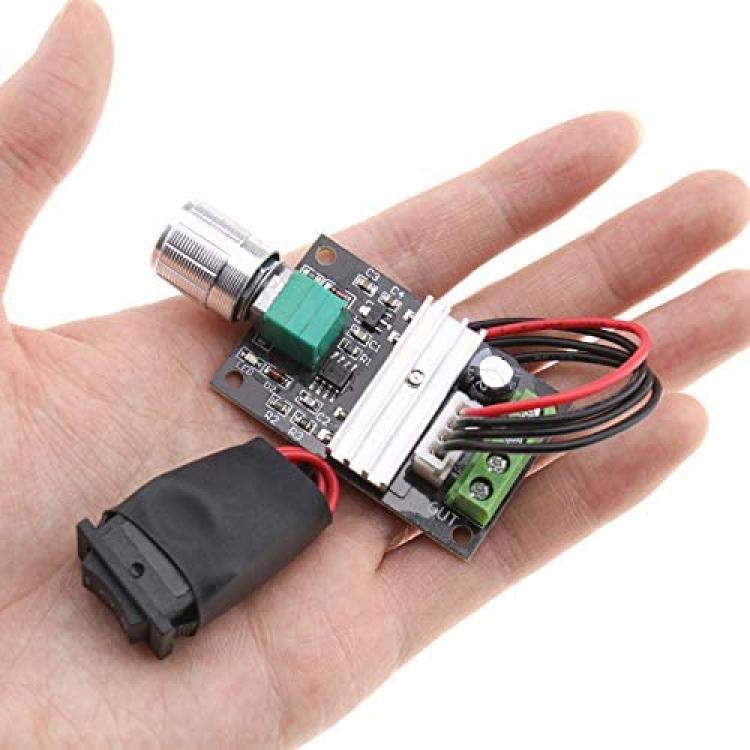

*Convenient to Use: Compact design, light weight, about 50x32mm, with 3mm fixing screw hole, easy to install and fix.
Description
Item Descriptions:

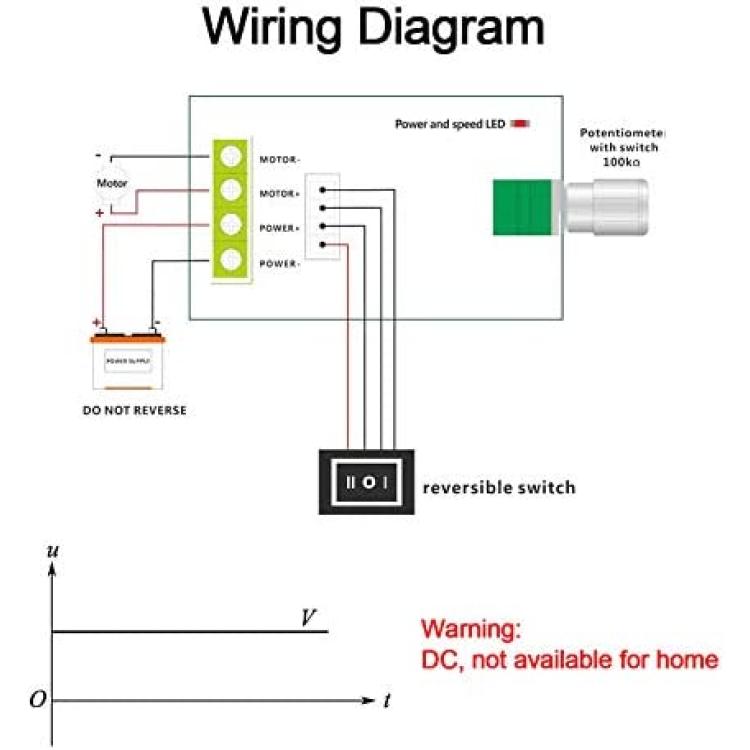

-PWM DC Motor Governor: Low voltage dc motor governor module with positive inversion control switching button and rotatable control knob.
-Usage: Allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage, can adjust from 10%-100%.
-Application: Input supply voltage is DC 6V-28V. Maximum continuous output current is 3A. Maximum output power is 30W.
-Protection Function: It will be automatically disconnected, and the fuse will automatically recover after cooling when the current is too large.
-Convenient to Use: Compact design, light weight, about 50x32mm, with 3mm fixing screw hole, easy to install and fix.
-Application: For the speed regulation of DC motor, fan, fish tank oxygen pump and other products. Low power consumption, fast response.
-Note: Do not directly connect to household 220V AC!
Package:

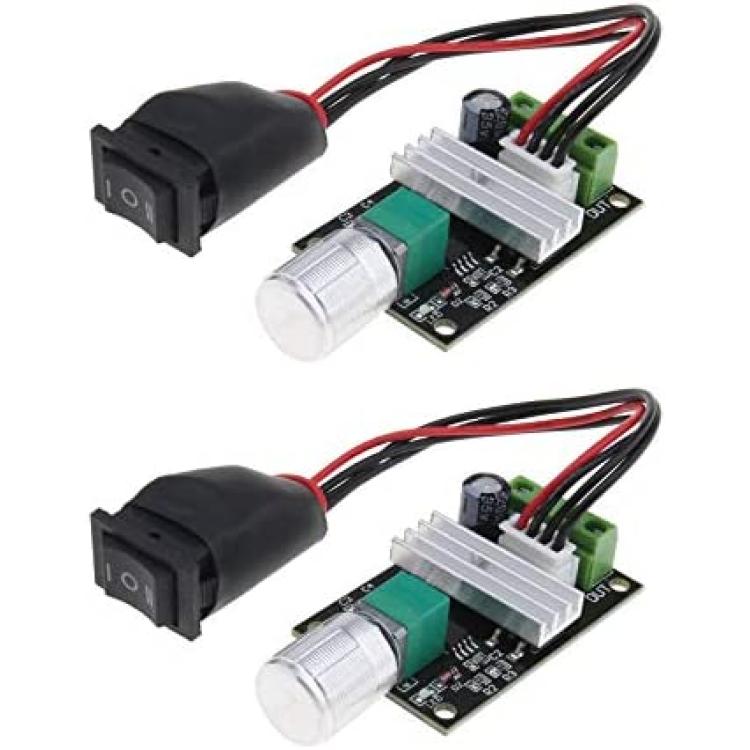

2x PWM DC Motor Governor
Item Specifications:
Type:PWM DC Motor Governor
Working Voltage:DC 6V-28V
Max Continuous Output Current:3A
Maximum Output Power:30W
Duty Cycle Adjustable:10%-100%
PWM Frequency:21kHz

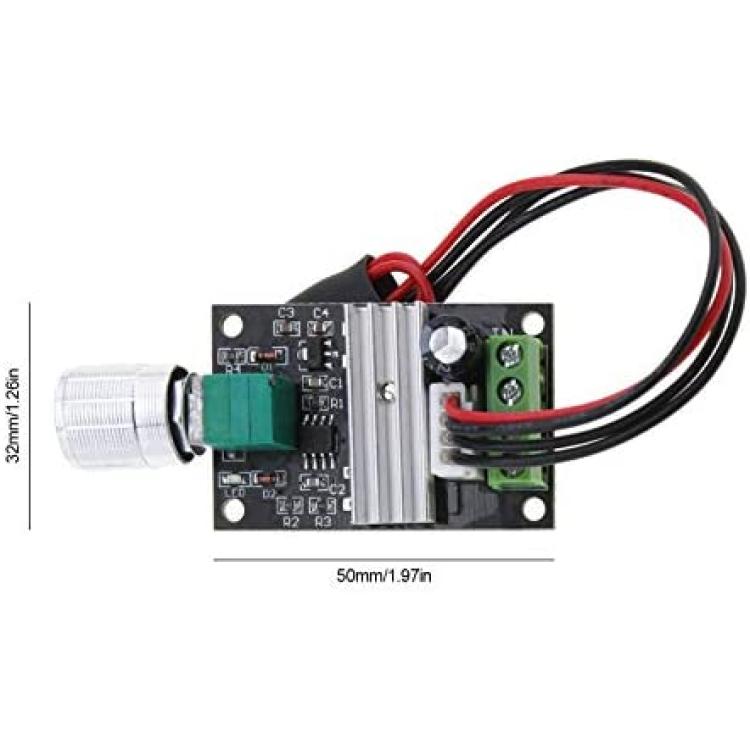

Size:50x32mm/1.96x1.26inch
