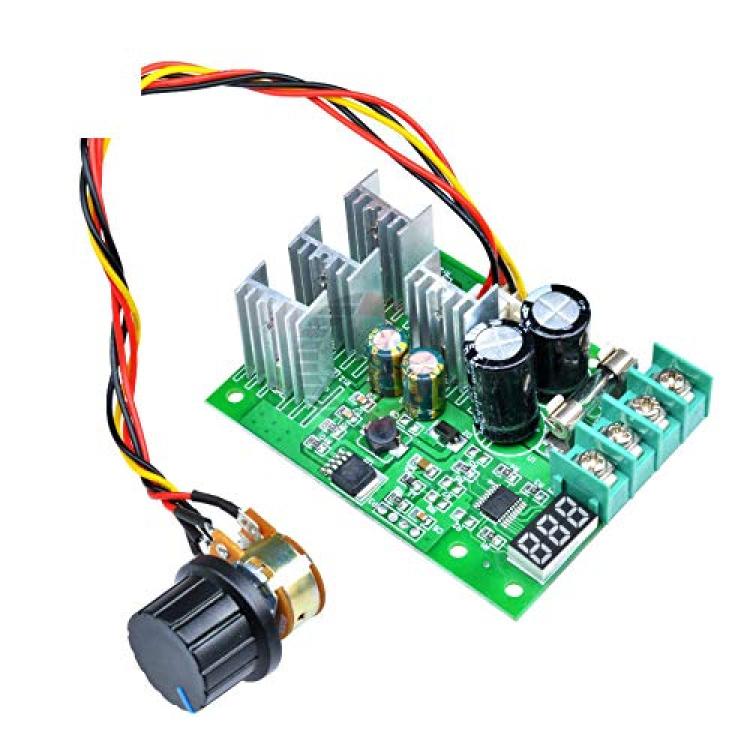

DC 6-60V 30A Adjustable LED Digital Motor Speed Regulator PWM DC Motor Speed Controller Motor Speed Control Governer 12V 24V 36V

Features:

Speed controller is made with high quality circuit board which ensures a longer service life.
This simple and easy-to-use DC motor speed controller has an stable performance.
The output current of this motor speed controller can be adjusted from 0A to 30A, and it is simple to set.
Designed with a digital display that shows the rate in percent of actual speed to maximum speed.
This motor speed controller uses screw terminals for convenient and quick wiring.
The positive and negative pole of controller must be connected correctly, otherwise, the item might be burnt.
The input voltage of controller is better to be same as rated voltage of motor.

Specifications:

Input Voltage: DC 6V-60V
Output Voltage: Linear with load(voltage drop at motor 2 terminals )
Output Current: 0A-30A
Continuous Current: <20A
Speed Range: 0% to 100%(variable)
Regulation Method: Potentiometer(Linear)
Regulation Type: Regulating Current(cannot be used as a voltage regulator)
Control Frequency: 15KHz(pulse width)
Wiring Type: Screw terminal
Rotary Knob: 100K with switch(270°)
Size: 75 x 56 x 28mm / 2.95 x 2.2 x 1.1"


Package Included:

1 x Digital LED Display Speed Controller
