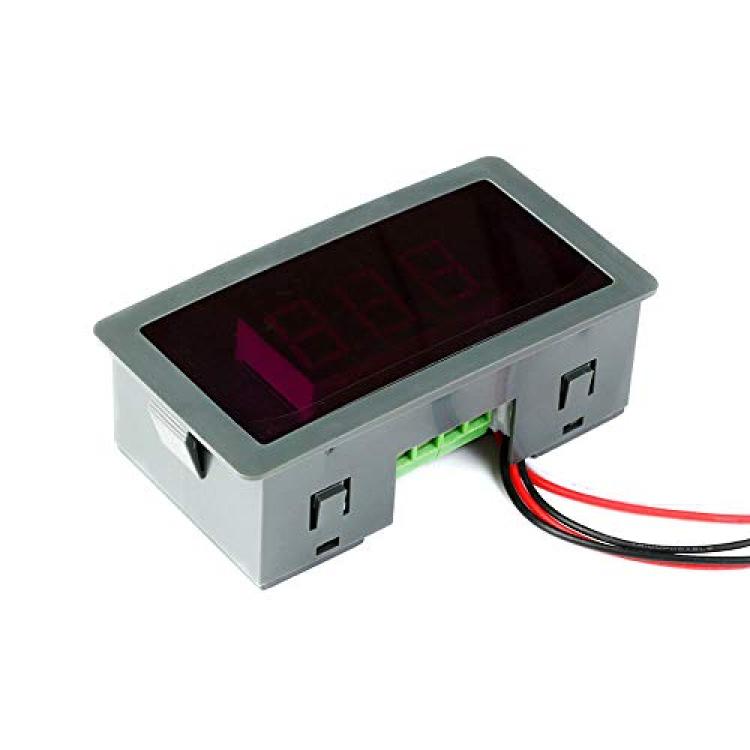

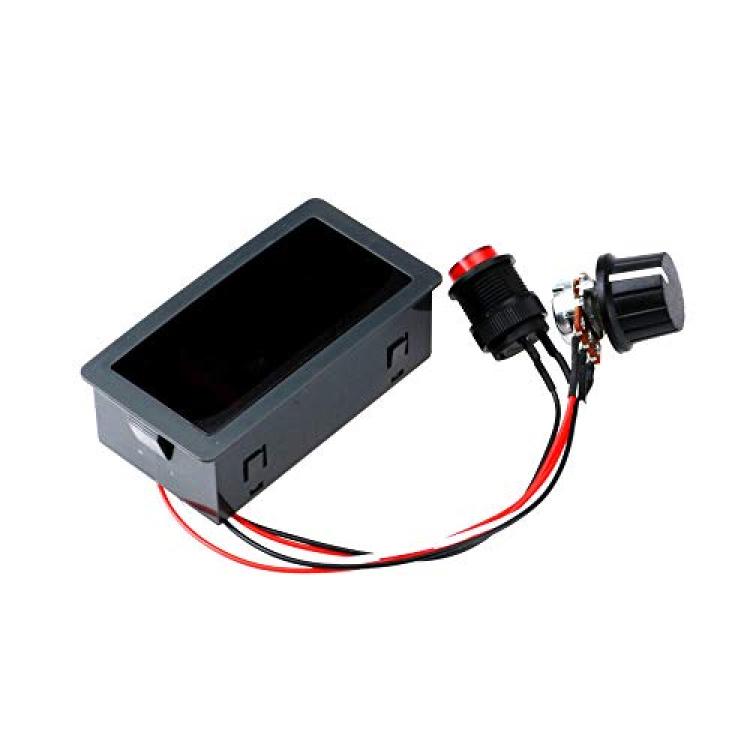

DIYElectronic 1 pcs Digital LED Display 12V 24V DC PWM Motor Controller Variable Speed Regulator
Availability: Pre-Order, Inquiry Price
About this product
*We are a professional supplier of integrated circuit products. Just search keywords in our store. I believe you can find the Product you need.
*Delivery time: 6-18 days by special line for USA , 8-30 days by regular post for Worldwide,If it is not received within the specified time, please contact us and we will refund you in full.
*If you need the product urgently, you can choose expedited service. We will use DHL to serve you. Delivery time: 3-7 days.
*any question,please feel free to contact me.I believe our sweet service will satisfy you.
*Please note that the products are only offered by the brand: DIYQuantum . Other sales people is not reliable.
Description
|This section DC motor speed controller, using a new MCU control system, high current MOS drive circuit, large screen display speed ratio, stepless 0-100 precision control. Specially designed power supply input protection circuit, output overload / short circuit protection circuit. With small size, high precision, wide speed range, low energy consumption, long life, excellent mechanical properties, easy to use features. Widely used in packaging, printing, food, electronics, instrumentation, clothing machinery, medical machinery and other industries to do the production line speed, drive device.
Product Parameters:
Input voltage: DC8-30V
Operating current: 0-8A (more than 8A start protection)

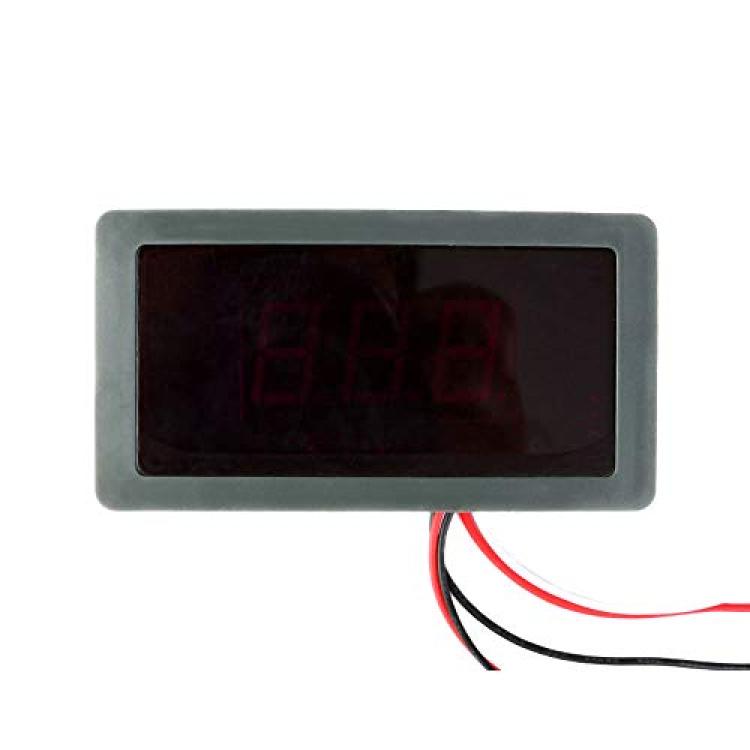

Display: three "0.56" led digital tube
Display color: red
Lead length: 20cm
Dimensions: 79 * 42 * 26mm
Opening size: 72 * 39mm
Weight: about 60G
Operating temperature: -20 ~ 60 degrees Celsius
Instructions for use:

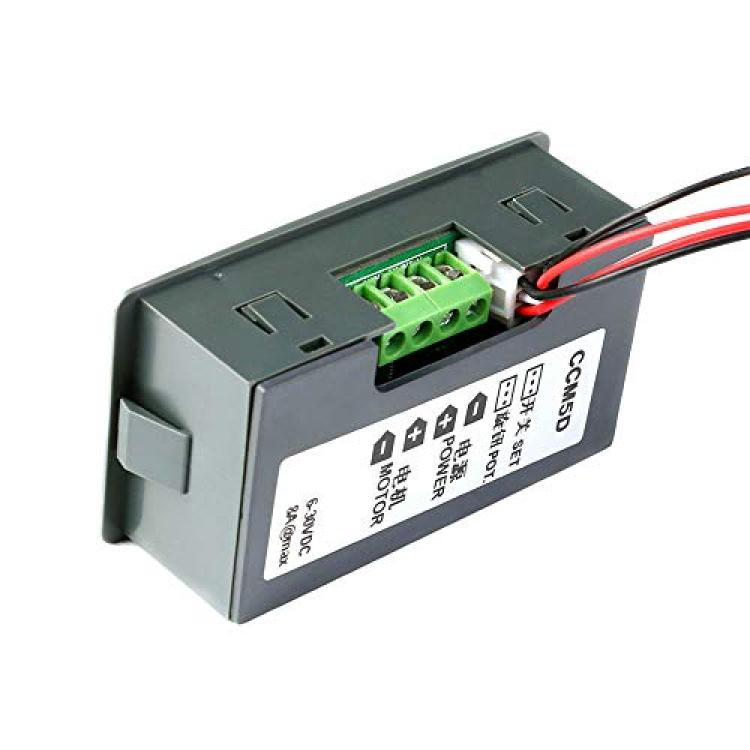

According to the wiring diagram on the back of the product, the power is on after the wiring is completed. The standby indicator on the panel lights. Pressing the red button starts the work. The panel displays the current output speed ratio value. The value of the rotary potentiometer begins to change and change the output speed ratio.
