DC Motor Speed Controller Reversible with Digital Display Reversible Switch for DC Motor Driver Module 12V 24V 36V
Availability: Pre-Order, Inquiry Price
About this product
*Capable of regulating DC motor speed with a wide range and reverse the rotation through a reversing switch, which has forward/off/reverse 3 phases
*The input voltage range from DC 10V to 55V, and the rated current 40amp, so its really a large power speed controller
*Fitted with a display panel which display the rate in percent of actual speed to maximum speed, that will help regulate the motor speed much more precisely
*Comes with a well-designed case, which can protect the controller board from damage and help dissipate heat
*Easy to use and durable
Description

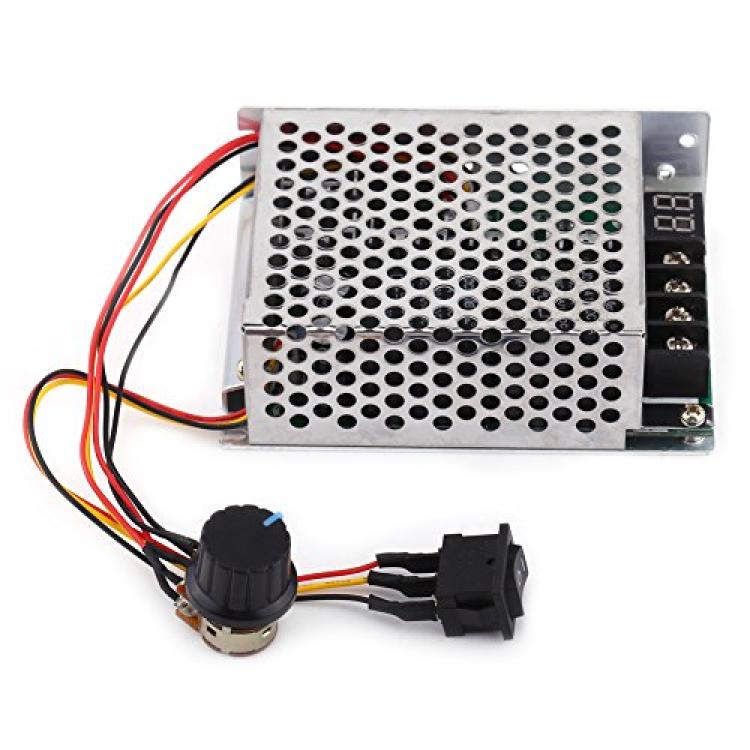

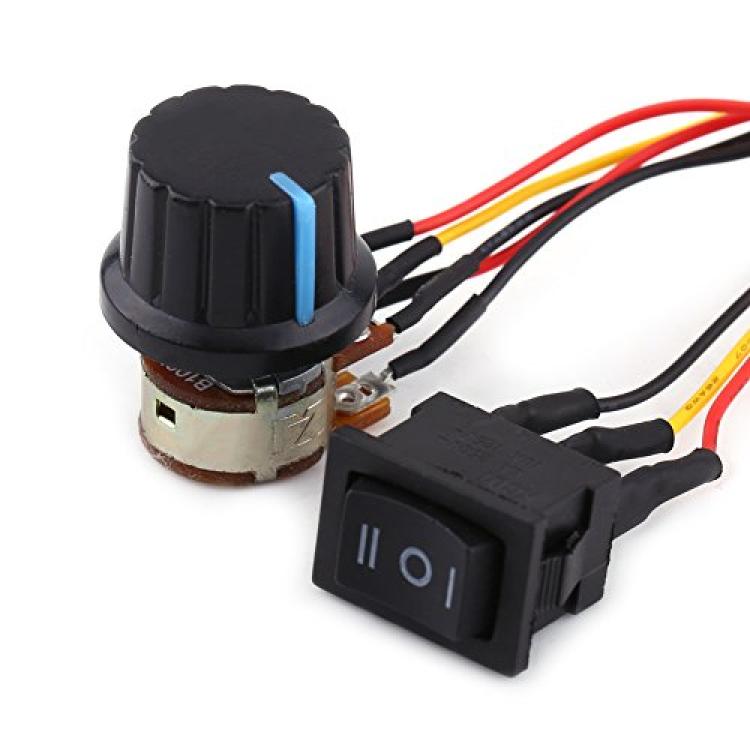

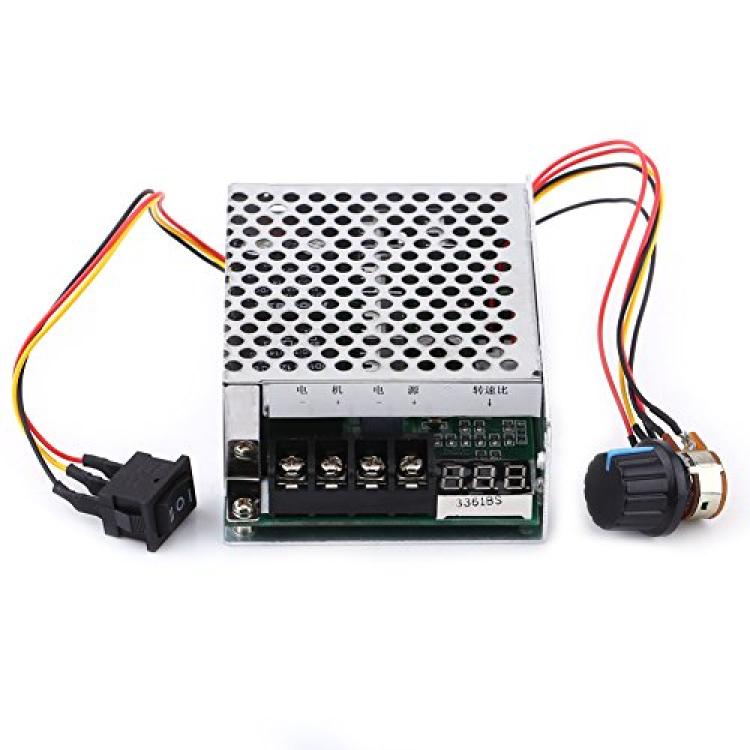

This product can not only regulate the DC motor speed, but also change the rotation direction. With a potentiometer and reversing switch, it's easy to control the motor rotate as the way you expect. It has a well designed case, which can protect the controller board from damage and help dissipate heat. Fitted with a digital display that shows the rate in percent of actual speed to maximum speed, you can regulate the speed much more precisely.
Â
Specifications:
Input Voltage: DC10V-55V
Output Voltage: Linear with load
Max. Current: 60A
Continuous Current: 40A
Speed Range: 0% to 100%
Forward & Reverse: Support
Regulation Method: Potentiometer(linear)
Regulation Type: Regulating Current
Control Frequency: 15KHz
Wiring Type: Screw terminal
Rotary Knob: 100K(with switch)
Size: 110 x 78 x 38mm / 4.33 x 3.07 x 1.49"
Â
Package Includes:
1 x Speed Controller
