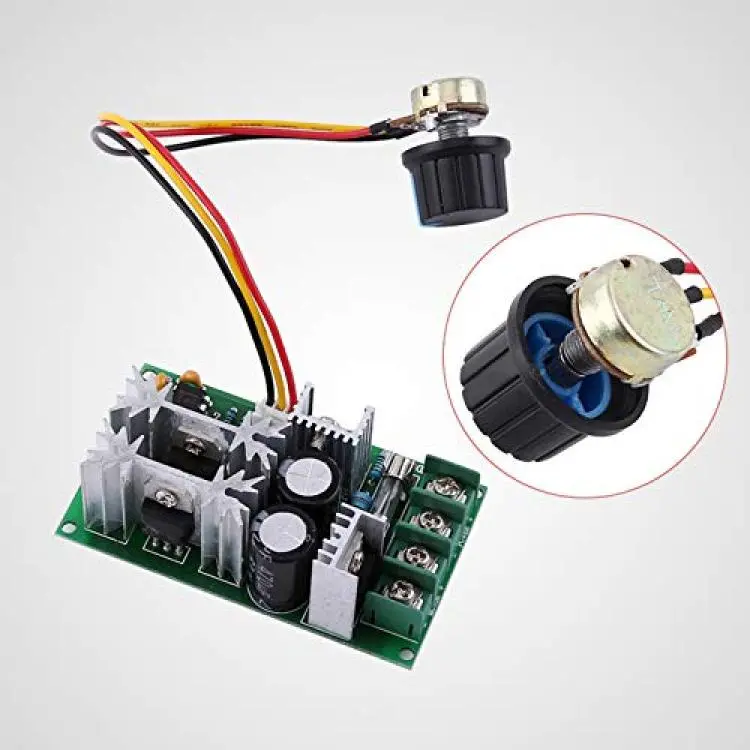

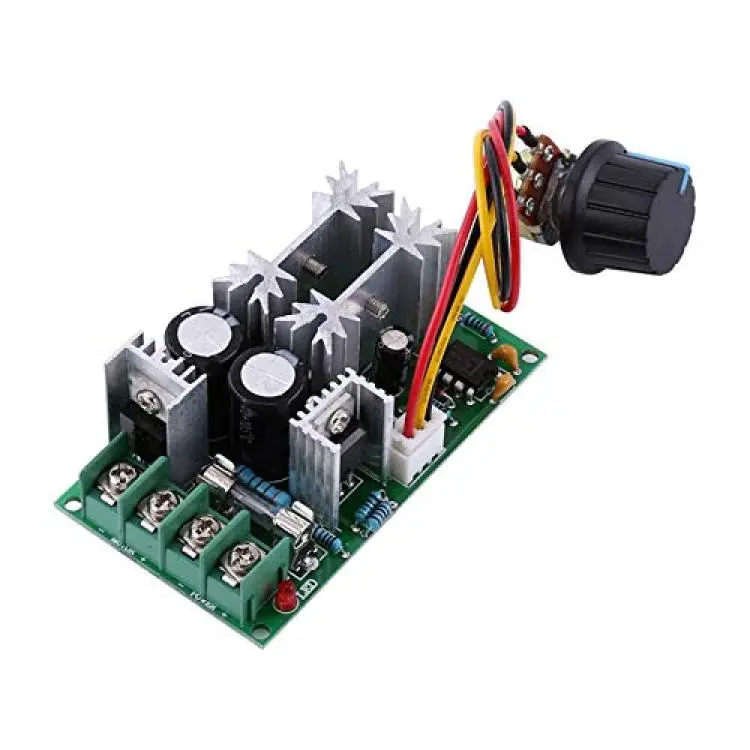

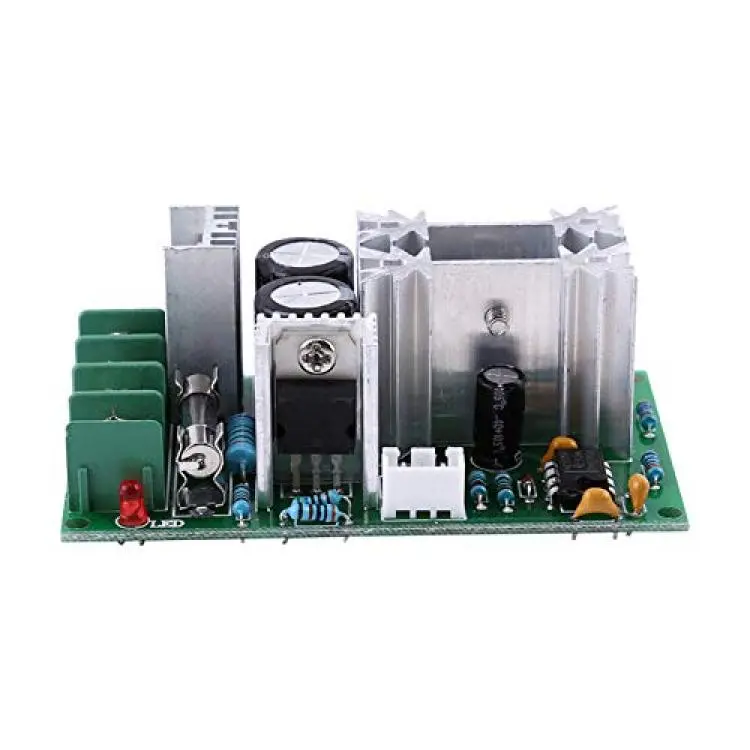

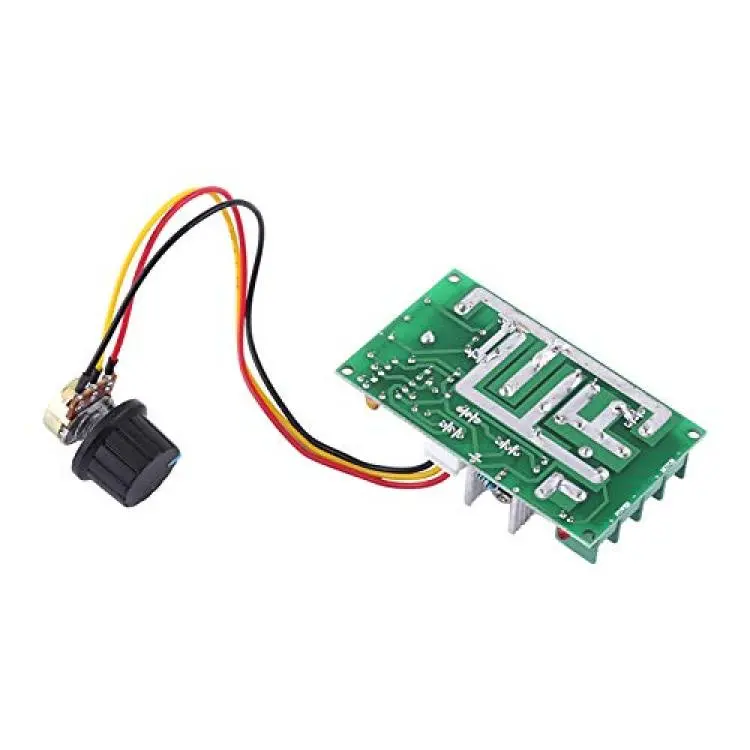

PWM DC Motor Speed Controller 12V 24V 36V 48V 20A DC Motor Driver Module High Power Current Regulator
Availability: Pre-Order, Inquiry Price
About this product
*Regulating the DC motor speed with a wide range through pulse-width-modulatin
*Incorporating high power dc motor driver module
*Input voltage range from DC 10V to 60V, and output current 20A maximum(no more than 10amp, 450 watt if longtime working, and make sure the heat dissipation works well )
*Packed in an antistatic bag to protect it from static damage during transportation
*Well made and durable
Description
This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. Packing with an antistatic bag, you don't have to worry about static damage during transportation.
Specifications:
Voltage: DC10-60VÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Max Output Current: 20A(10A, less than 450W suggested if continuous use, enhance heat dissipation)
Max Power: 1200W Â Â Â
Speed Regulation Duty Cycle Range: 0--100%Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Control Frequency: 25KHZ Â Â Â Â Â Â

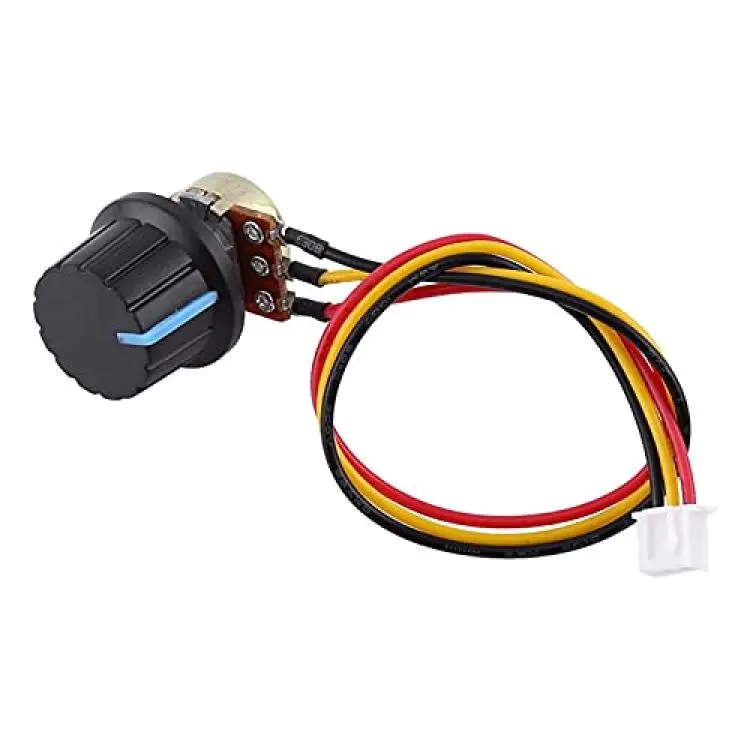

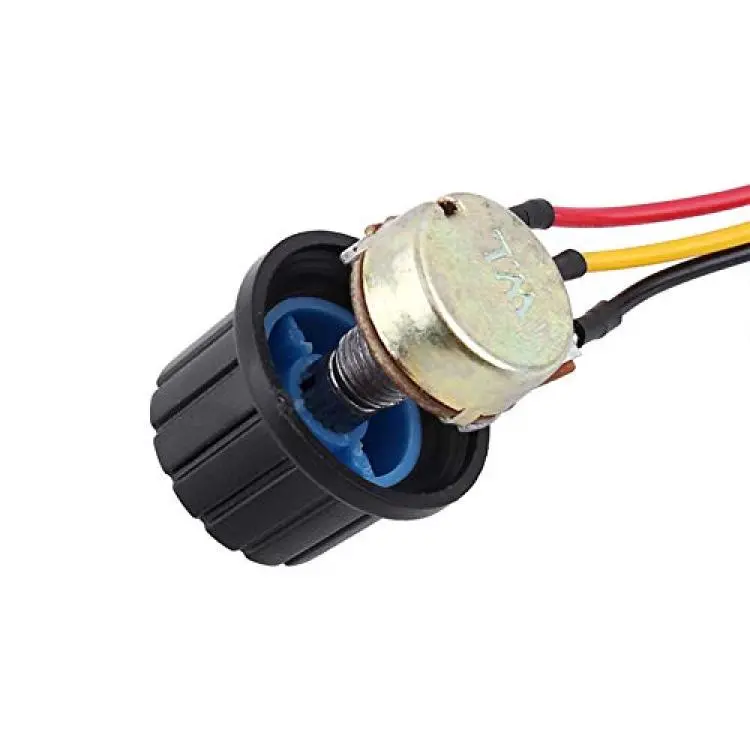

Knob Wire Length: 20cm / 7.87

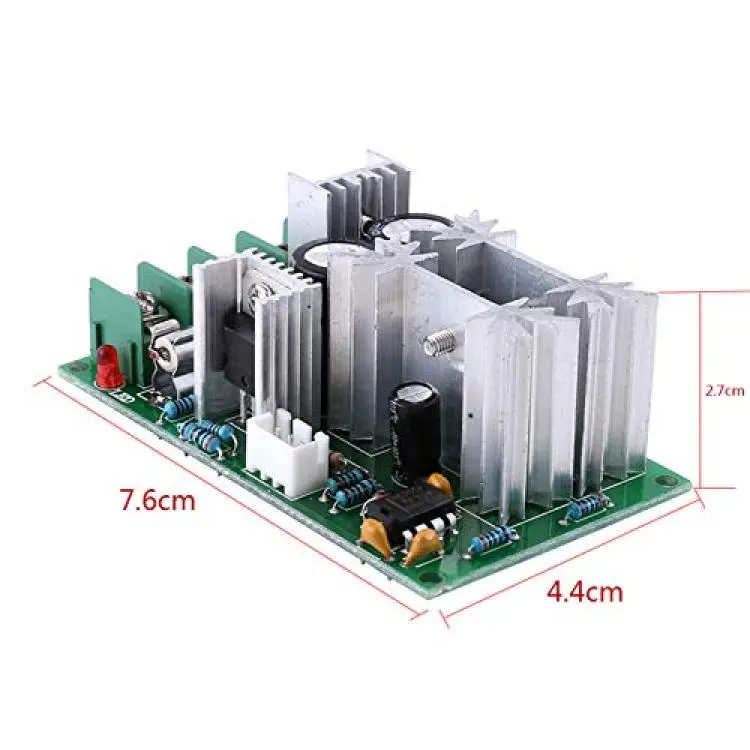

Size: 7.6 x 4.4 x 2.7cm / 2.99 x 1.73 x 1.06"
Weight: 77g(approx.)Â
Package Includes:
1 x Speed RegulatorÂ
Note:
1. Make sure the positive and negative polarity is connected correctly.
2. Wiring should not touch heat sinks, or it will probably burn circuit board. This is not a power module, only after the module is connected to a DC motor can it regulate speed
