DC Motor Speed Controller PWM Digital Display with IR Remote Controller and Digital Display DC Motor Regulator Switch 6V 12V 24V

DC Motor Speed Controller PWM Digital Display with IR Remote Controller and Digital Display DC Motor Regulator Switch 6V 12V 24V

Product Code: MM27418
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Fitted with infrared remote speed controller, its much convenient for you to regulate the speed

*Comes with a digital display which can show the PWM duty circle

*Can regulate the speed continuously from 0 to 100% through pulse-width-modulation, and the value is shown on the digital display, which ensure precise regulation

*Gains standard industrial-grade touch button, can switch sleep mode to operating mode freely by slightly press on the button, it is easy to use

*Less heat, less noise, low speed and large torque

Description

This PWM DC motor speed controller is upgraded products, which is the combination of good quality, high performance and easy to use. You can regulate the speed from 0 to 100& through Pulse-Width-Modulation, and the value ofÂ PWM duty circle is shown on a digital display, so you are able to get the exact speed as need. with a industrial-grade touch button, you can switch from sleep mode to operating mode freely with one slight touch, it's very easy to operate the device.

Specifications:

Input Voltage: DC 6V~30V

Rated Current: 5A

Max. Current: 8A

Speed Governing Range: 0~100% (Infrared remote speed governing minimum change value is about 4%~5%)

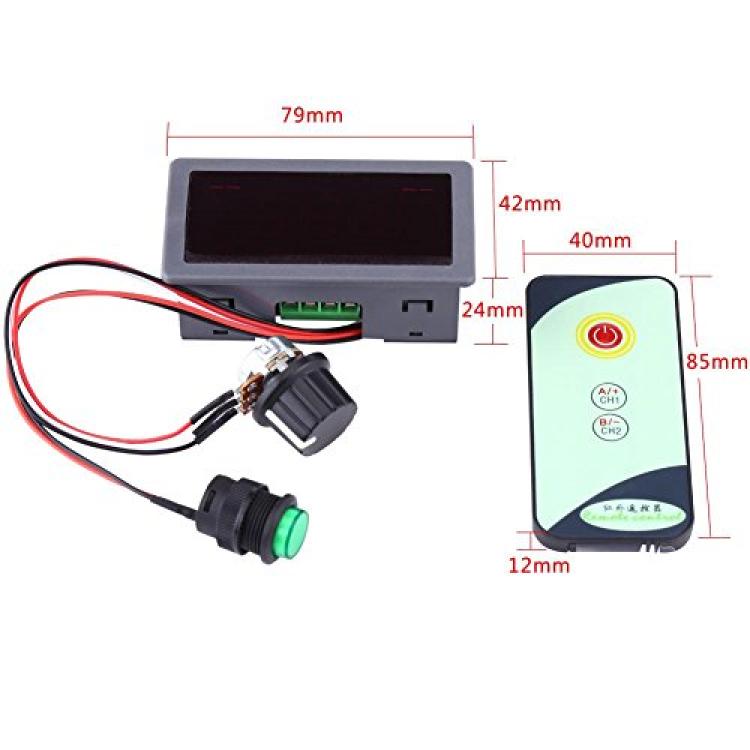

Regulator Size: 79 x 42 x 24mm / 3.11 x 1.65 x 0.94"

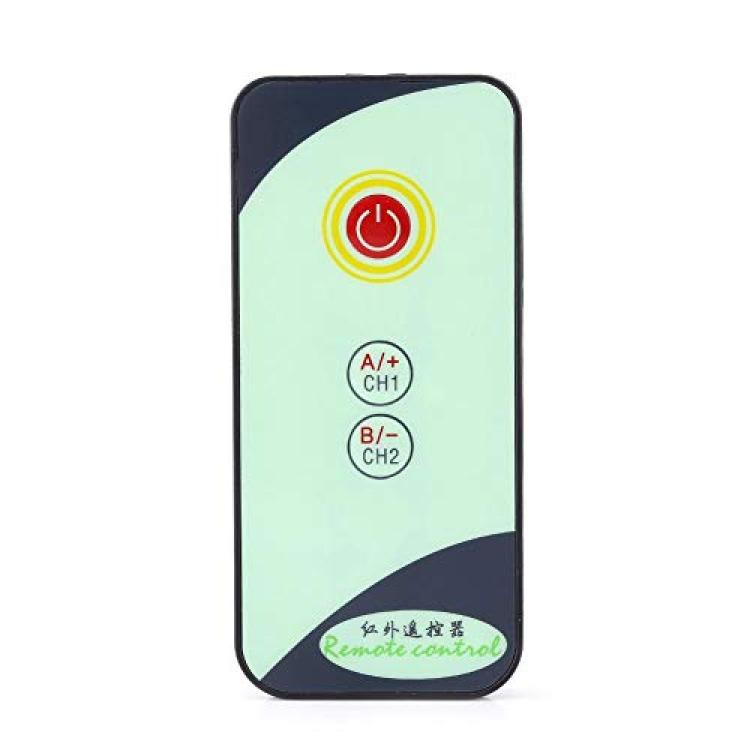

Remote Size: 85 x 40 x 12mm / 3.34 x 1.57 x 0.47"

Frequency: 16KHz

Package Includes:

1 x Regulator

1 x Remote
