BLDC three-phase DC brushless Hall DC motor motor controller 6.5-50V high power 380W PLC

product description:

The product is suitable for DC brushless Hall motor with an electrical angle of 120 degrees, and adds PLC 0-5V analog control and pwm duty cycle control.


Interface Description:
1. MA MB MC phase line output to motor
2.5V GND Mainboard comes with 5V power supply (current does not exceed 30MA)
3.VCC GND Motor main power supply (external DC power supply)
4.SC speed pulse signal output
5. Forward and reverse forward and reverse control interface (can also lead to external switch)
6. VR speed control signal input (the on-board potentiometer for speed control can also be connected to an external 0-5V analog PWM duty cycle to support dual-signal input speed control)
7.Ha Hb Hc +5V GND Hall signal power supply input, generally motors with Hall have corresponding 5 wires


Product parameters:

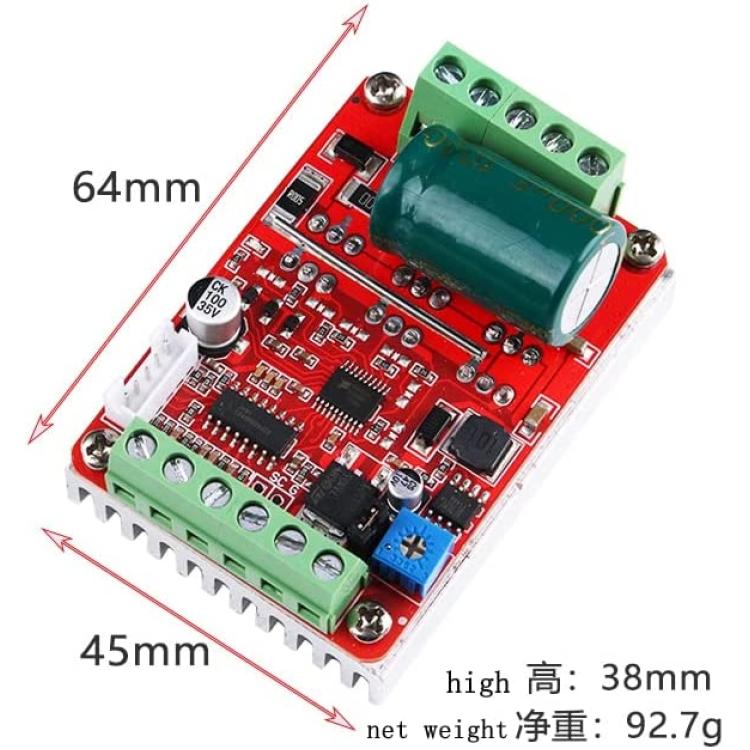

Product size: length 64MM* width 45MM* height 31MM
Weight: about 92.7g
Maximum power: 380W


Tips:
1. The drive is a DC three-phase brushless control board, which requires the motor to have a Hall to work normally
2. The circuit schematic diagram is not provided, please understand, the key IC of the anti-copying board has been polished, and those who mind do not take pictures.


Package: 1pc BLDC Three Phase Brushless DC Hall DC Motor Motor Controller
