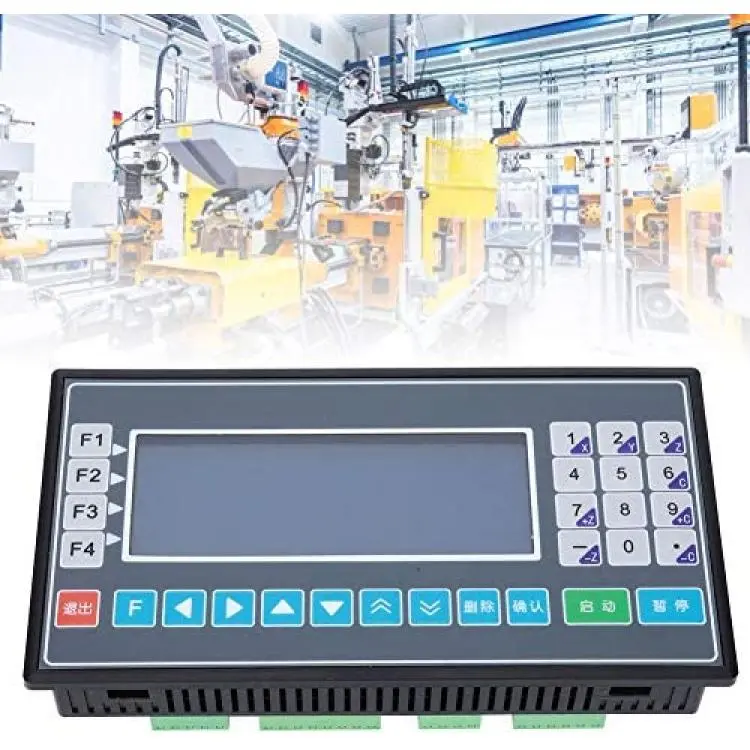

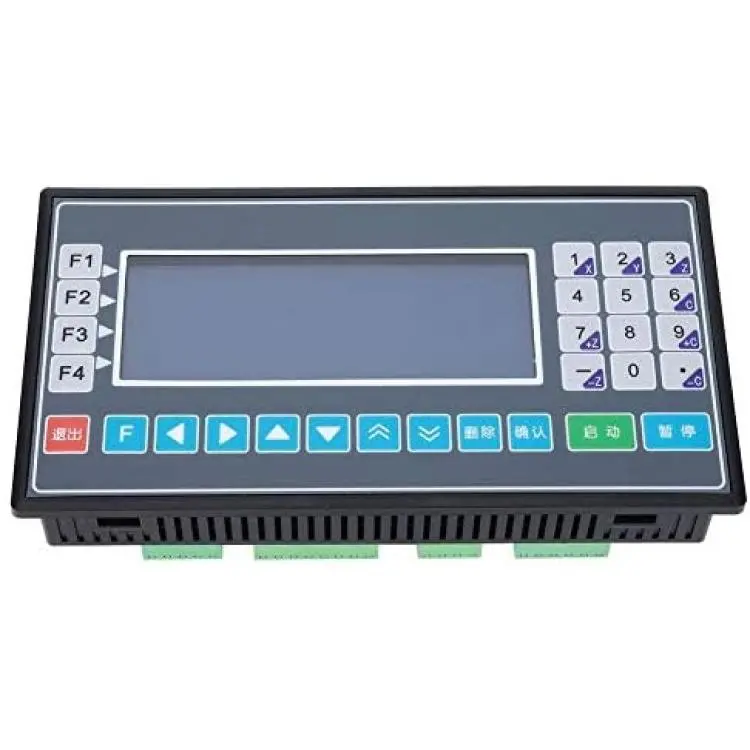

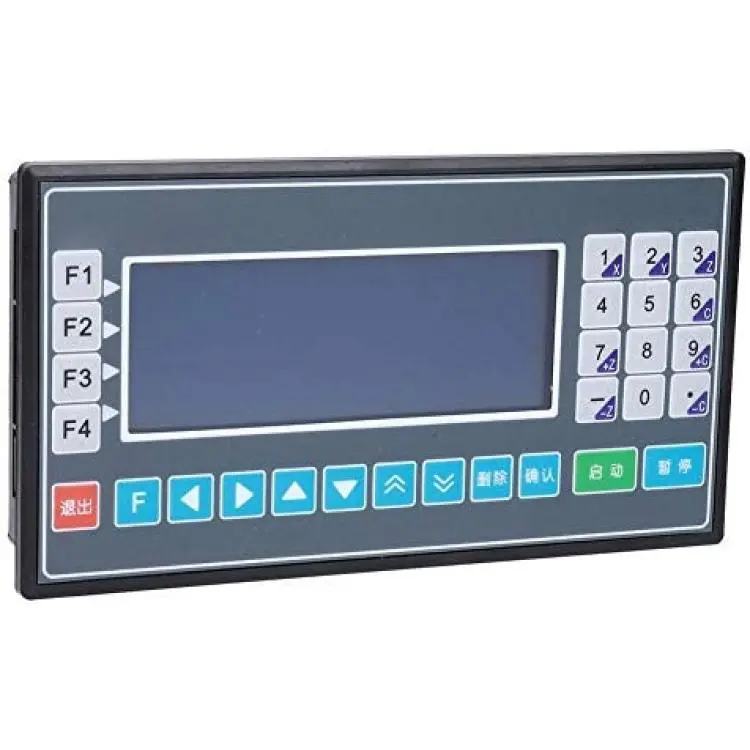

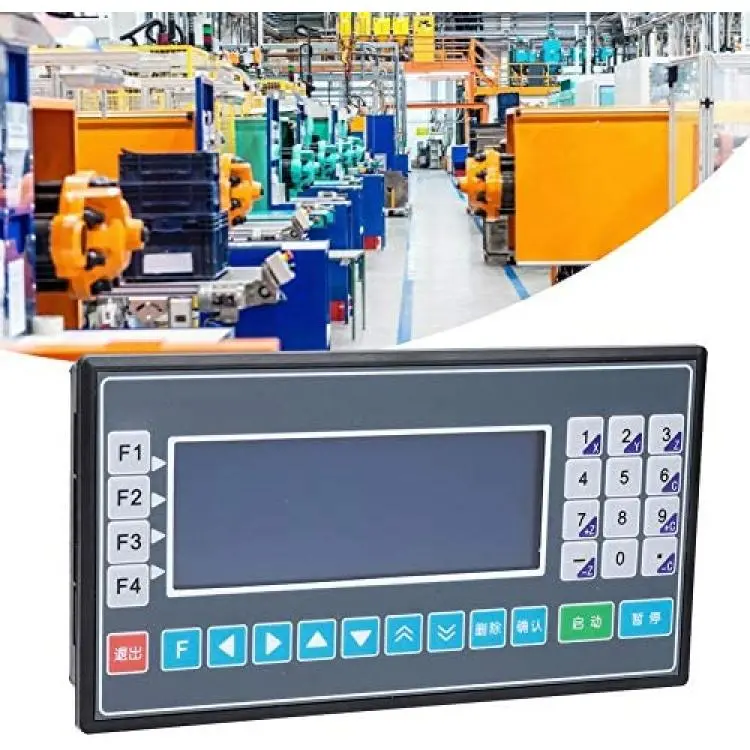

FTVOGUE FTVOGUE Numerical Control System Stepper Motor Controller CNC Metalworking Equipment 32-Bit CPU[Single-Axis ],Sport Control
About this product
*CNC lathe controllers parameters include system parameters, system self-test, IO settings, user and manufacturer password management, etc. And it also supports program editing, reading, deleting and saving.
*CNC lathe controller supports automatic operation including dry running and single-step running, CNC lathe controller s manual operation including motor CW /CCW, back to program 0, back to mechanical 0 and output control.
*Isolated IO port means that with input and output ports isolated from the system, the output port capacity can be up to 1A
*Newly developed motion controller uses a high-performance 32-bit CPU, the driving equipment uses a subdivided stepper motor or servo motor, equipped with a liquid crystal display, a completely enclosed touch operation keyboard, while the system has high reliability, high precision, low noise and simple operation.
*You can directly use the USB cable to power the system, which is convenient for the transmission of the boot screen and the program, learning and operation
Description
Specification:
Item Type: CNC lathe controller
Model: CM35L-10
System Composition:
Control System Mainly Composed of Following Parts:
High-performance, high-speed 32-bit CPU
LCD monitor (Resolution: 192 x 64)
Special motion control chip (Signal Output: 5V pulse + direction)

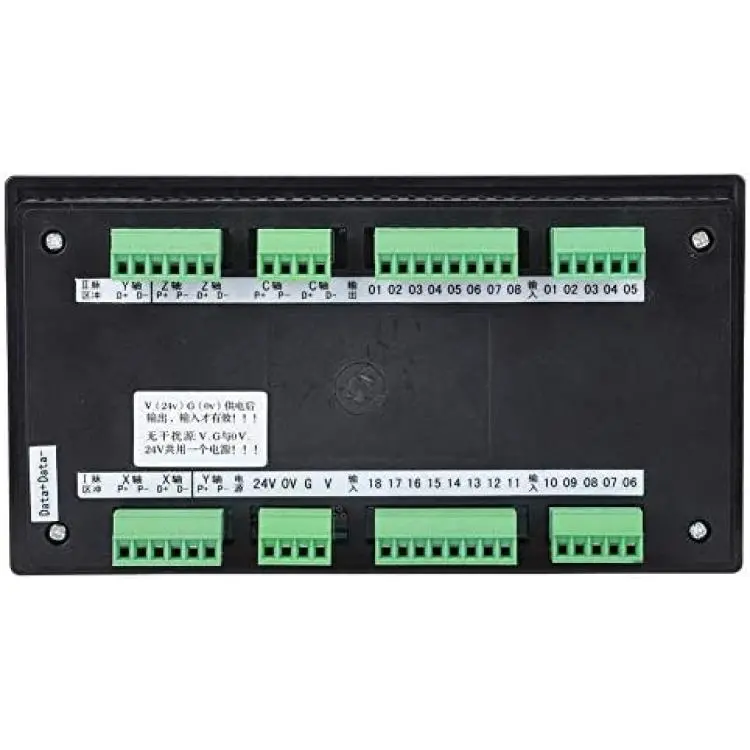

Input / output (14 photoelectric isolation 24V input, 8 photoelectric isolation 24V output, single channel rated 500mA)
Maximum Program Line: 480 lines
Contact key array (28 keys)
System Indicators:
Minimum Data Unit: 0.001mm
Maximum Data Size: ± 99999.999mm
Fast Motion Speed Limit: 9000mm / min (when pulse equivalent is 0.001mm)
Maximum Processing Speed Limit: 9000mm / min (when pulse equivalent is 0.001mm)
Maximum Pulse Output Frequency: 150KHz
Control Shaft Number: 1-4 axis (X, Y, Z, C)
Linked Shafts Number: X, Y, Z, C axis can be linearly interpolated, X, Y can be circularly interpolated
Electronic Gear: Numerator: 1-99999, Denominator: 1-99999
System Main Functions: Automatic, manual, program, parameter, self-check, setting, etc.
Optional Style: Single-Axis / Biaxial / Tri- Axis / 4-Axis (optional)

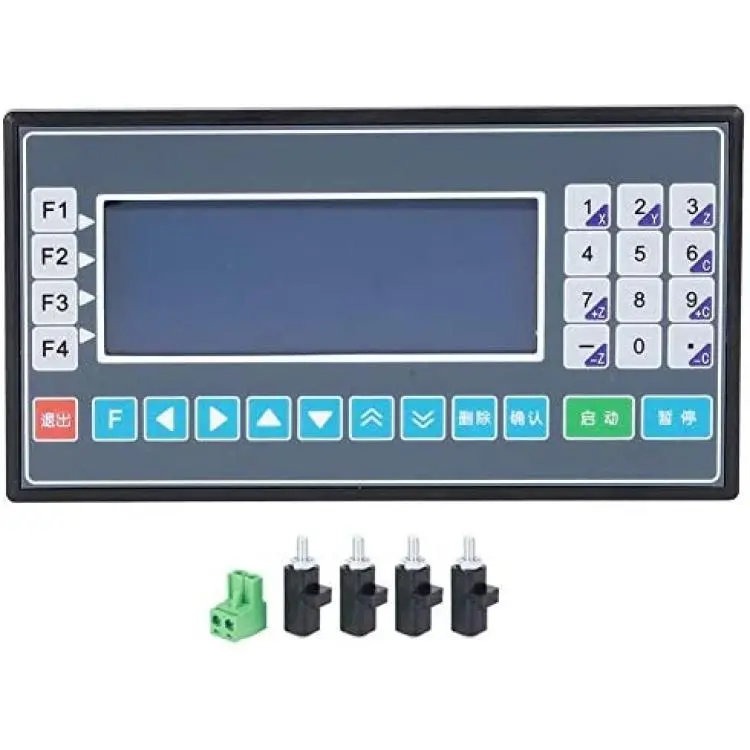

Package List:
1 x Controller
1Pack x Accessory
