3 Types CNC Numerical Control System NCH02 NC Card Axis Controller Board Motion Controller System with USB(4 Axis)
About this product
*OFFLINE OPERATION: No computer is needed, the CNC control system can be operate and control offline.
*USB INTERFACE: Adopting USB interface, the CNC control system supports U disk to read G code files and execute.
*FUNCTION: The CNC motion controller can control parts of the interface and electrical isolation.
*FIT FOR: Motion Controller System is up to 125K stepper motor control pulse output, suitable for most machine tool system.
*SUPPORT: CNC controller supports standard hand pulse, serial digital display hand pulse, and digital display hand control.
Description
Specification:
Model: NCH02

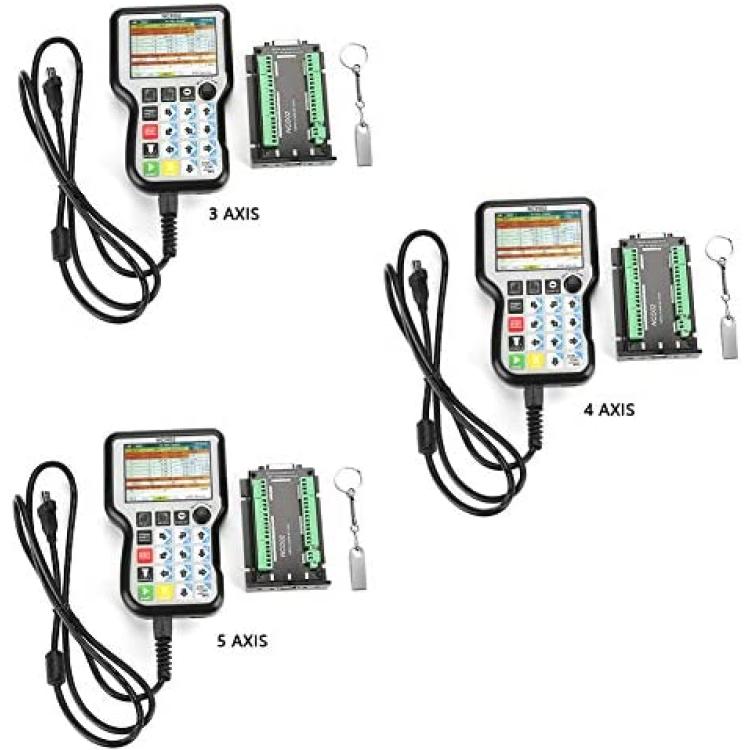

Optional Type: 3 Axis, 4 Axis, 5 Axis

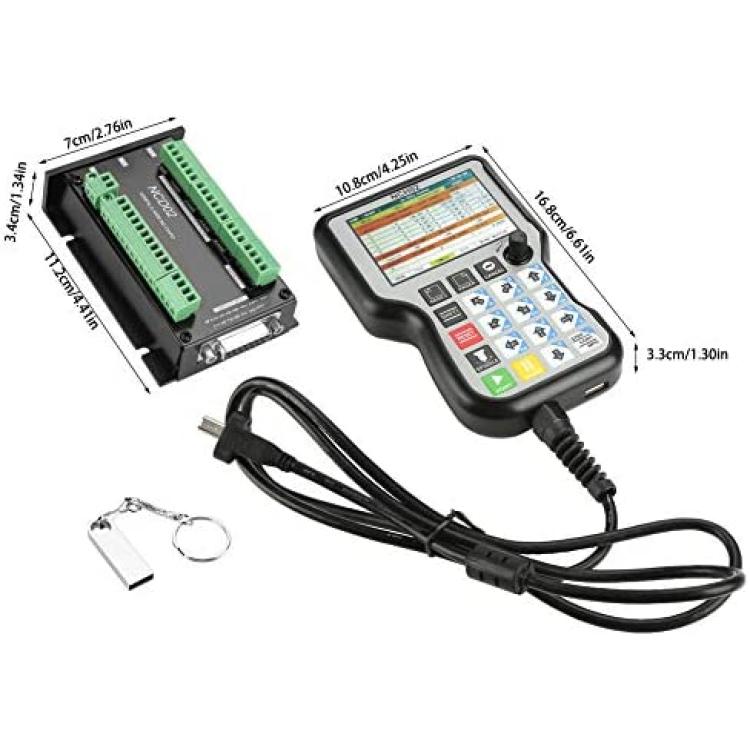

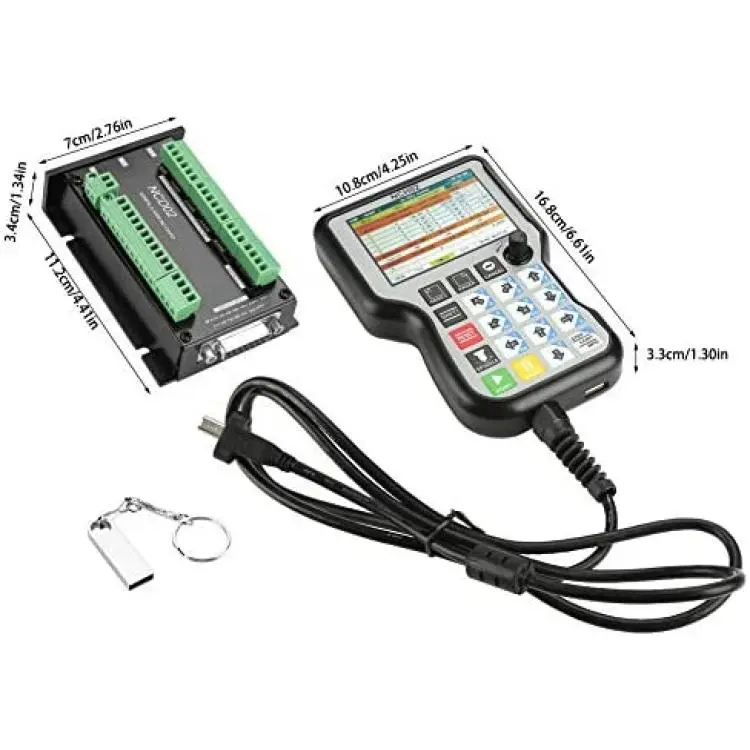

Controller Size: Approx. 16.8*10.8*3.3cm/6.6*4.3*1.3inch
Power Connector: Approx. 11.2*7*3.4cm/4.4*2.8*1.3inch
Weight: Approx. 691g / 24.4oz

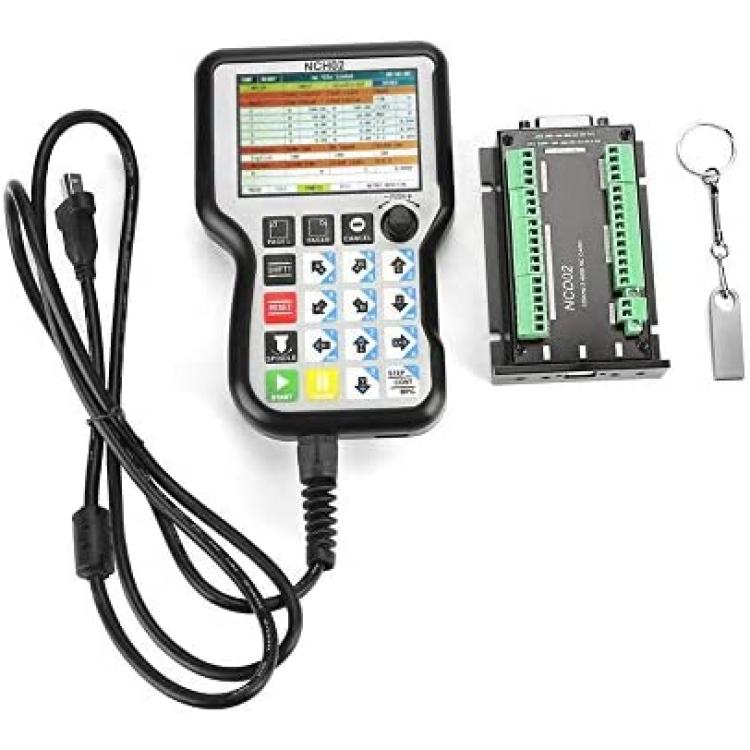

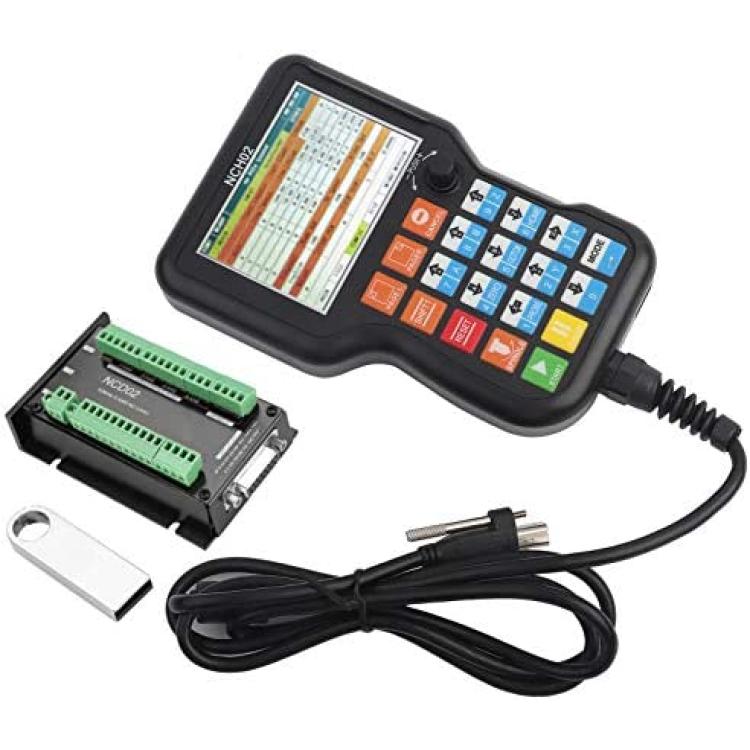

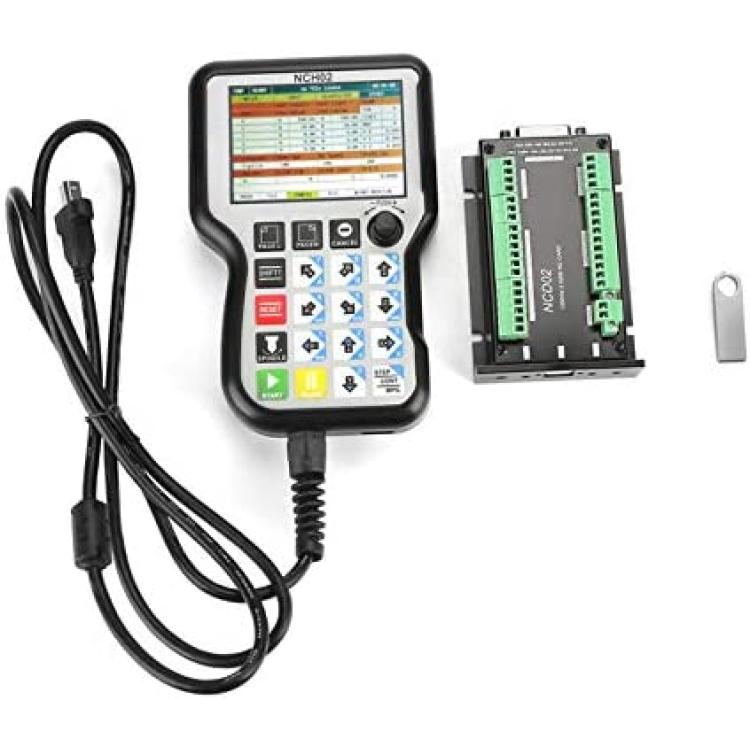

Package List:

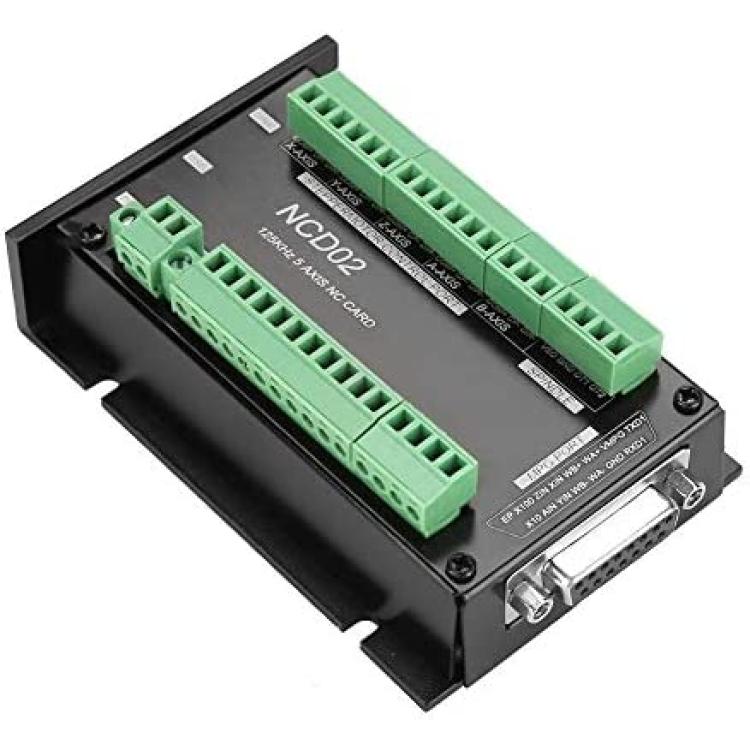

1 x NCD02 Control Board
1 x NCH02 Control Panel
1 x USB Flash Disk
