100W AC Servo Motor Driver Controller Kit 220V with Servo Driver Control System for CNC Router/Engraving Machine/Milling Lathe/Robot/Automation equipment (100W)

100W AC Servo Motor Driver Controller Kit 220V with Servo Driver Control System for CNC Router/Engraving Machine/Milling Lathe/Robot/Automation equipment (100W)

Brand: ‎Changzhou Rattm Motor Co.,Ltd
Product Code: MM25097
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*♞【Precise Control】Matching with 17-bit single-turn absolute magnetic encoder

*♞【Strong applicability】All input/output ports can be freely defined and have strong applicability,a variety of intelligent monitoring functions and operation panels are convenient for customers to debug and diagnose.

*♞【Function】Under voltage,over voltage,over load,over current,encoder exception,position error etc.

*♞【Multiple functions】Position control, speed control, torque control Modbus communication can be converted to meet common applications,standard RS485 communication function, realize upload and download network control.The internal simple PLC function, in some simple control occasions, PLC can be completely omitted, and a lower cost solution can be realized.

*♞【Application areas】Widely used on Industrial manipulator,Semiconductor equipment,Engraving Carving equipment,Measuring equipment,Medical equipment,Industrial robot and other automated equipment on the market.

Description

Advantage

1.Matching with 17-bit single-turn absolute magnetic encoder, 5 pairs of poles,to ensure the positioning accuracy of one millionth.

2.Standard RS485 communication function, realize upload and download network control

3.All input/output ports can be freely defined and have strong applicability

4.Position control, speed control, torque control Modbus;communication can be converted to meet common applications

5.A variety of intelligent monitoring functions and operation panels are convenient for customers to debug and diagnose

6.The internal simple PLC function, in some simple control occasions, PLC can be completely omitted, and a lower cost solution can be realized.

Application

Application areas: Industrial manipulator,Semiconductor equipment,Engraving equipment,Measuring equipment,Medical equipment,robot and other automated equipment on the market.

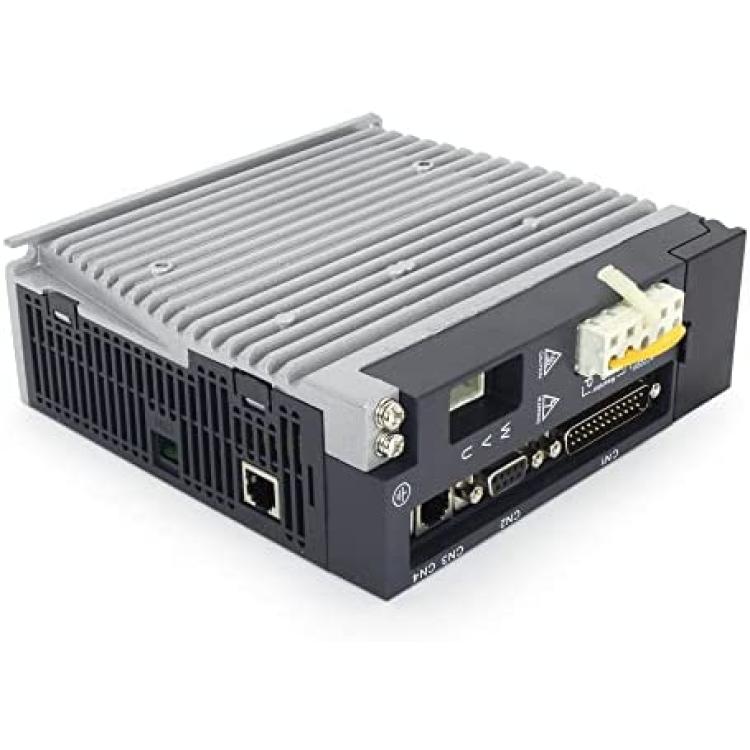

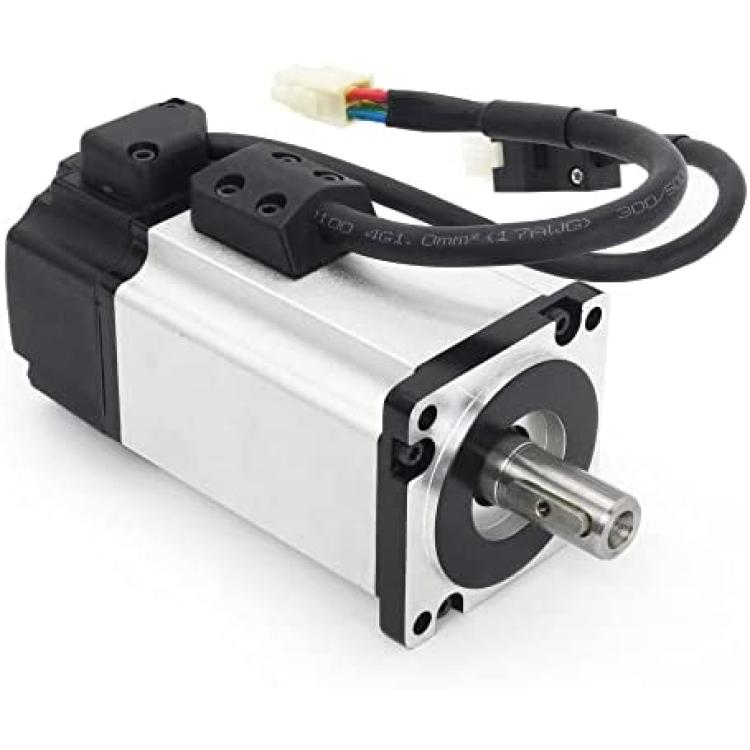

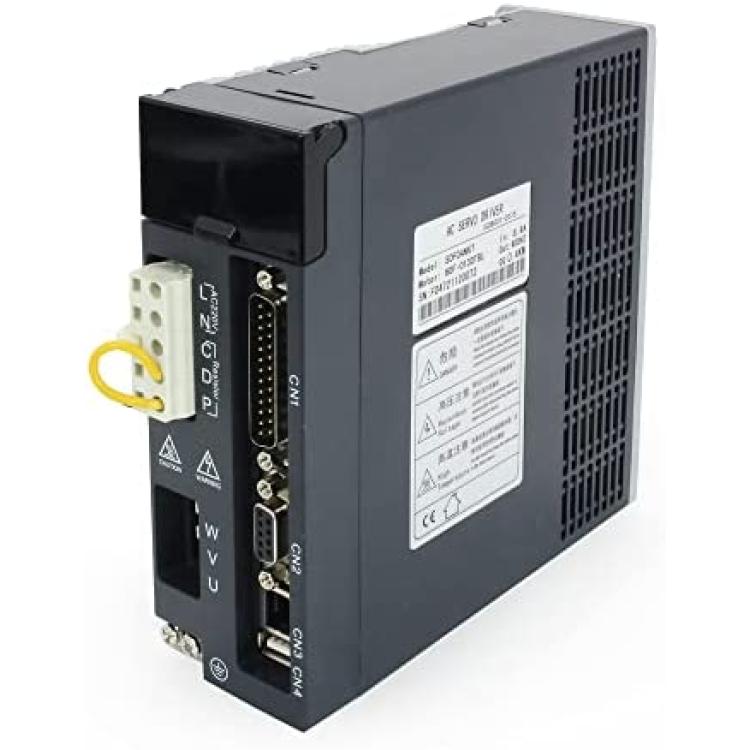

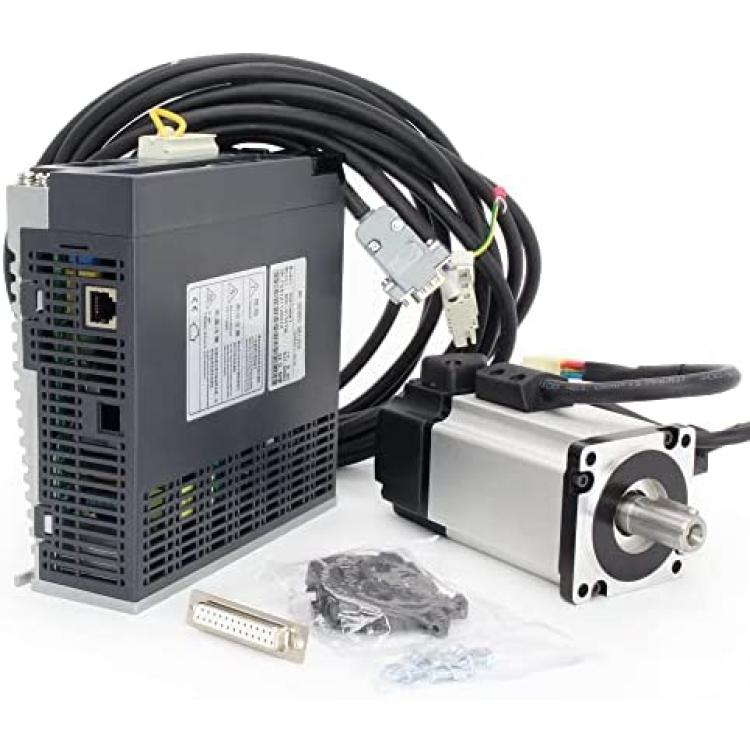

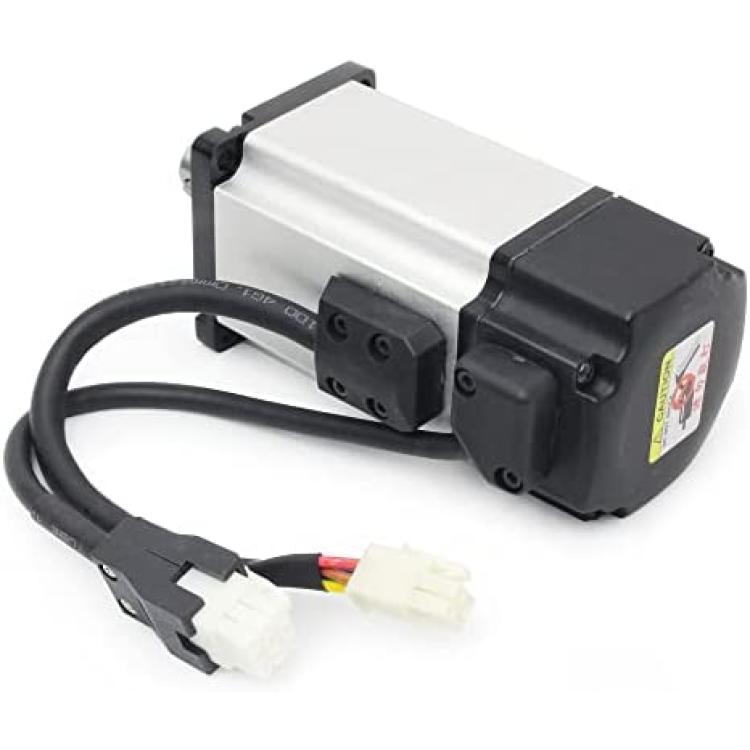

1× SDF04NKW Servo Drive1× 100W 40F-00330GCL AC Servo Motor without brake1x DB25 hole plug and shell1 x Power Cable with Plug1 x Encoder Cable with PlugModel: 40F-00330GCLPower: 100WNumber of poles: 10Rated power supply: 220VRated speed: 3000rpmPeak speed: 6000rpmRated torque: 0.318NmInstantaneous maximum torque: 0.954NmRated current: 1.0APeak current: 3.0AWith brake: NoLine resistance: 4.5718.8OmhsNumber of encoder lines: 17 bitsInsulation class: F(155?)Protection class: IP65Model:SDF04NKWMaximum current:9.5AInput voltage: AC220V(50-60Hz)Output frequency:400HzCooling method: radiating air coolingControl mode: SVPWM controlEncoder: 17-bit single-turn absolute magnetic encoderOperating temperature: 0?~+55?Storage temperature:-20?-80?Protection level: IP54
