eletechsu 0-3A 42 57 86 Stepper Motor Controller Limit Angle PWM Pulse Speed Drive Module for Screw Slider 3D Printer Accessories (Only Controller)

Product Name:0-3A 42 57 86 Stepper Motor Controller Limit Angle PWM Pulse Speed ??Drive Module for Screw Slider 3D Printer Accessories

Package included:

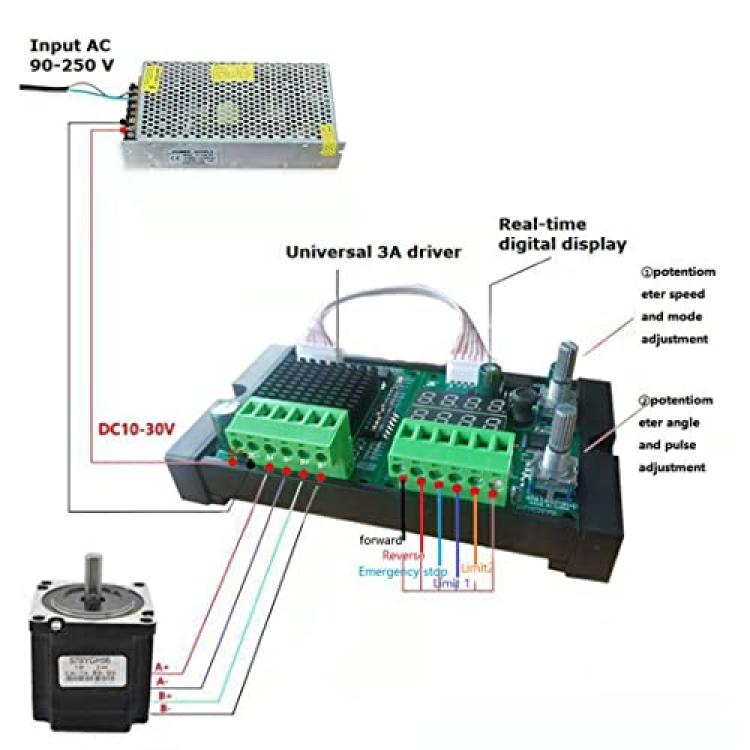

1 PCS Drive control combination module

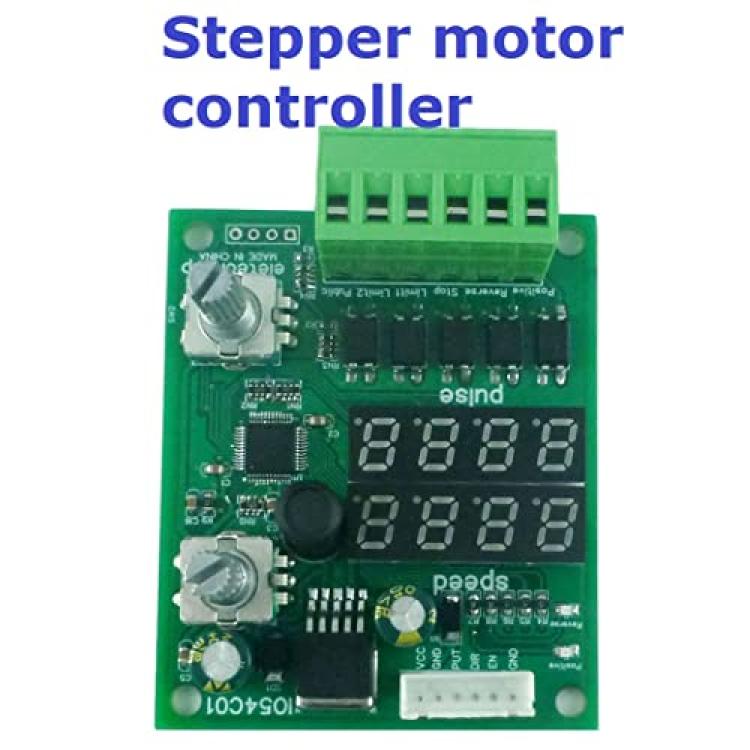

OR 1 PCS Stepper motor controller module

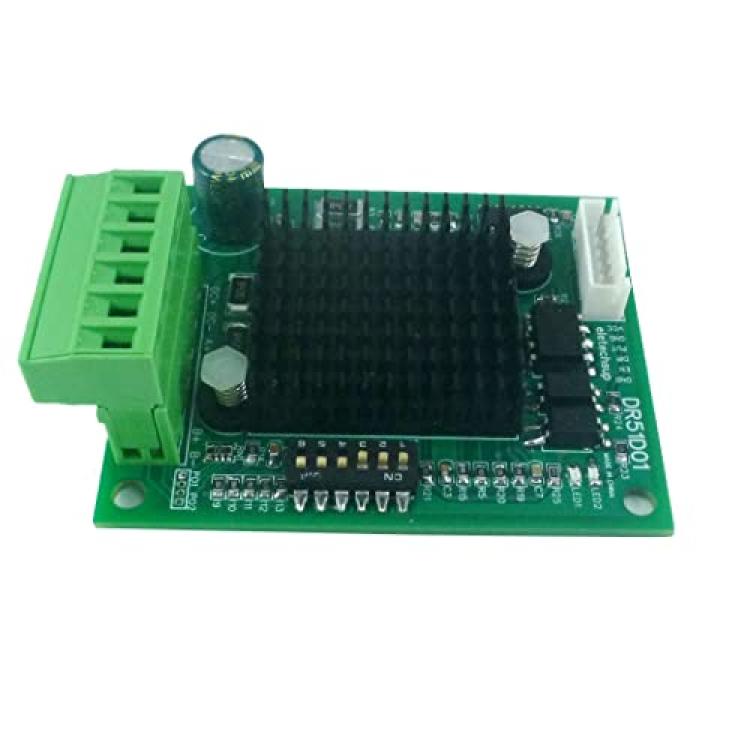

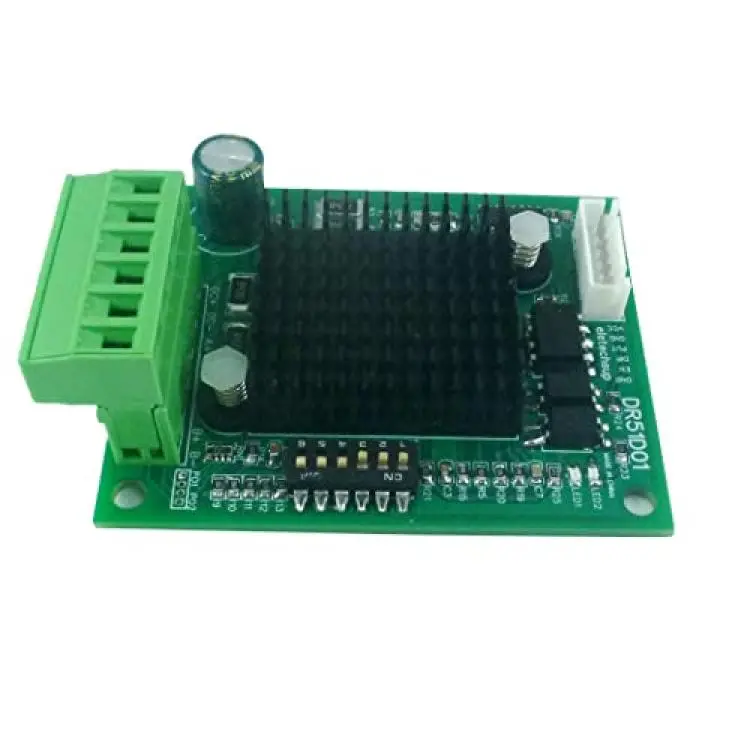

OR 1 PCS Stepper motor Driver module

Description:

Supply Voltage : DC10V~30V(DC 12V 24V)

Drive Current Range:Within 3A

Controller Type:Uniaxial stepping motor controller

Signal Support:No trigger/NPN (normally open type)

Regulate Way:Ending potentiometer adjustment

Applicable Motor:Within 3A Two-phase step-in motor

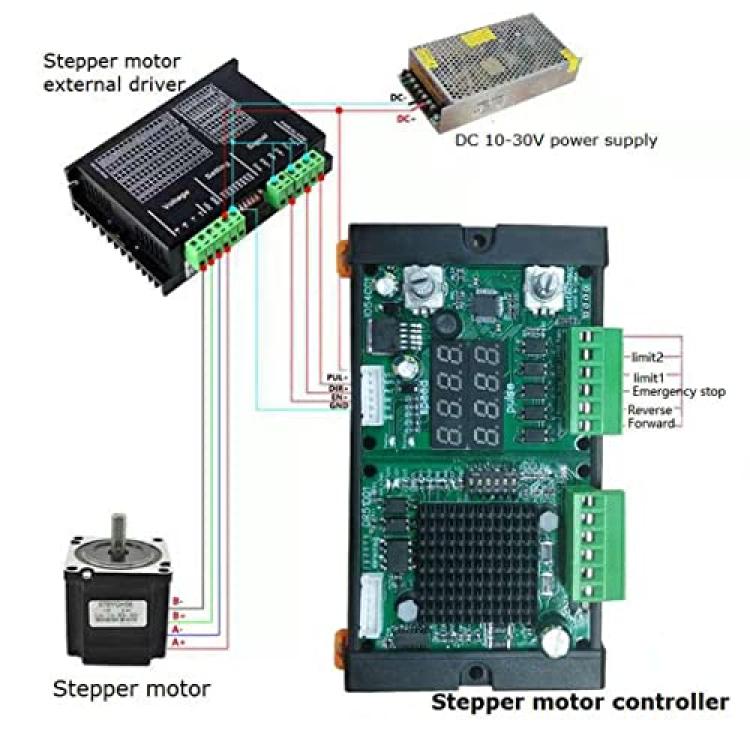

Above 3A requires an external drive

Delay Range: 0~999.9s

Applicable Drive:Compatible with 99% of the step / servo motor drives on the market

Velocity Range0.1~999.9 Rpm

Impulse Range: 1~99990 single pulses

Drive control combination module Weight:170.7g

Drive control combination module Size:138*77*21mm

Stepper motor controller Weight:45.9g

Stepper motor controller Size:71*60*29mm

Driver module Weight:41.5g

Driver module Size:71*60*24mm



Function: 9 default common functions, can realize the stepping motor point movement, self-locking, limit, angle, pulse, speed, reciprocation cycle, delay control, etc.(Read the functional description for more details)

Note: Please use the switch power supply to power the drive. The power (voltage * current) is too small and it will affect the torque of the motor. The 24V5A or 12V10A universal switch power supply is recommended



Product size chart:

?Short press No. ? potentiometer to enter the function selection mode, select the function and wait for three seconds to automatically save

During the function setting mode, turn the potentiometer No. ? to adjust the intermittent time value of the motor forward and rev
