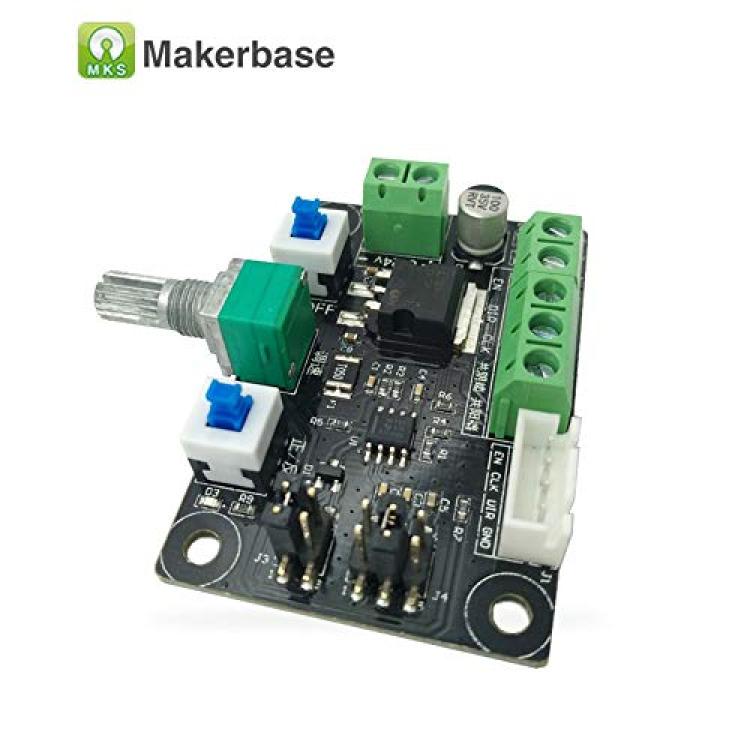

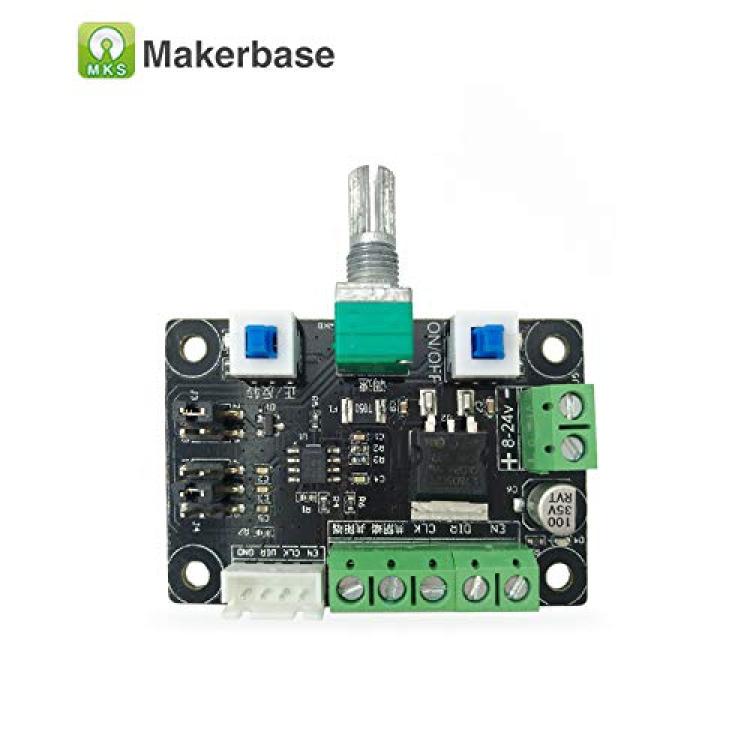

Name:3D printer MKS OSC stepper motor drivercontroller
Shipping list:
MKS OSC * 1pcs.
N.W.:0.023KG
Product Introduction:
1. This module is a pulse generatingmodule ,which supplies as a signal
for stepper drivers. To control the stepper motor, it must be equipped with thedriver.
2.Easy controller + stepper driver + stepper motor + direct-current power = simple control platform.
3.The controller consists of 3 kinds of frequency signal, including 5.4k-160khz,
540-16.6khz, 80-2.4khz, which can be chose by skippingstitch.
4.Support generating a pulse and PWM signal ,support skippingstitch choice.
5. Frequency measurement: the two ports of PUL and
common-cathode(or common anode) can be measured .
Different stepping motor driver different port sign, but same function
EN=ENA=FREEenable
PUL=PULS=CLK pulse
DIR=CW=CWW direction
common anode connection (connect with B)
EN+ PUL+ DIR+ all link together tocommonanode port
EN- connect to EN
PUL- connect to CLK
DIR- connect to DIR
commoncathode connection (connect with B)
EN- PUL- DIR- all link together to commoncathode port
EN+ connect to EN
PUL+ connect to CLK
DIR+ connect to DIR
Use the drivers that Makerbase designs, can directly connect to
A white card port (commoncathode connection ).
Size
Item specifics:
Model number: MKS-OSC
Item type: Driver
