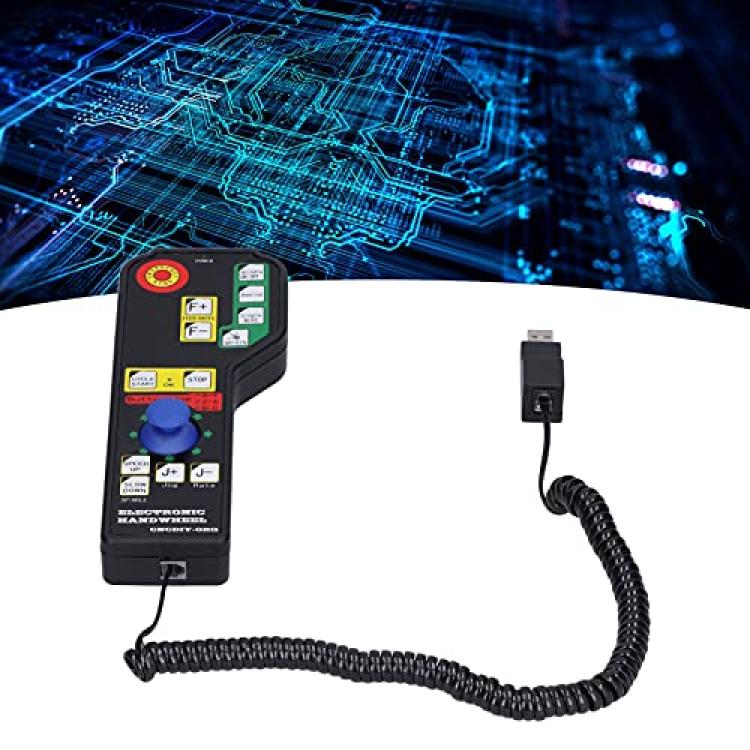

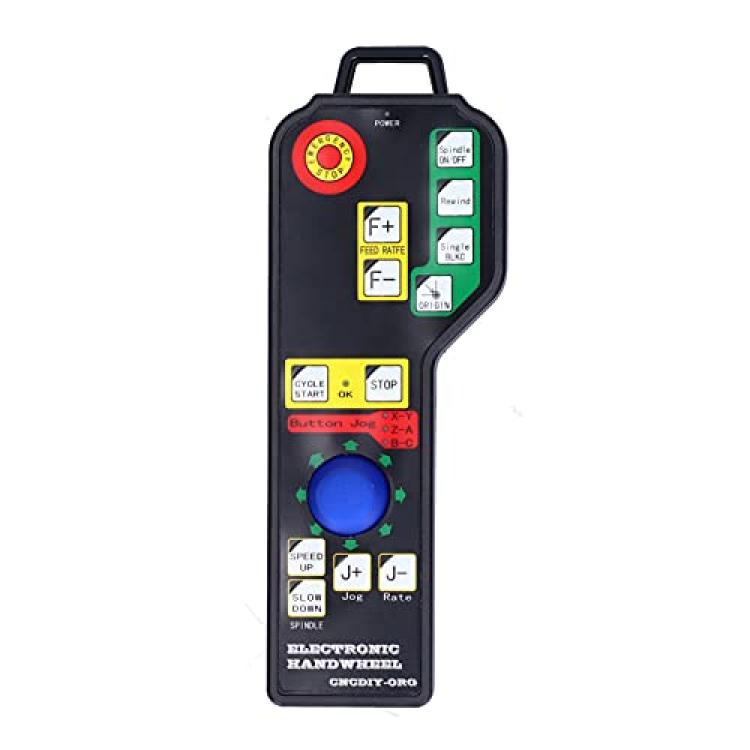

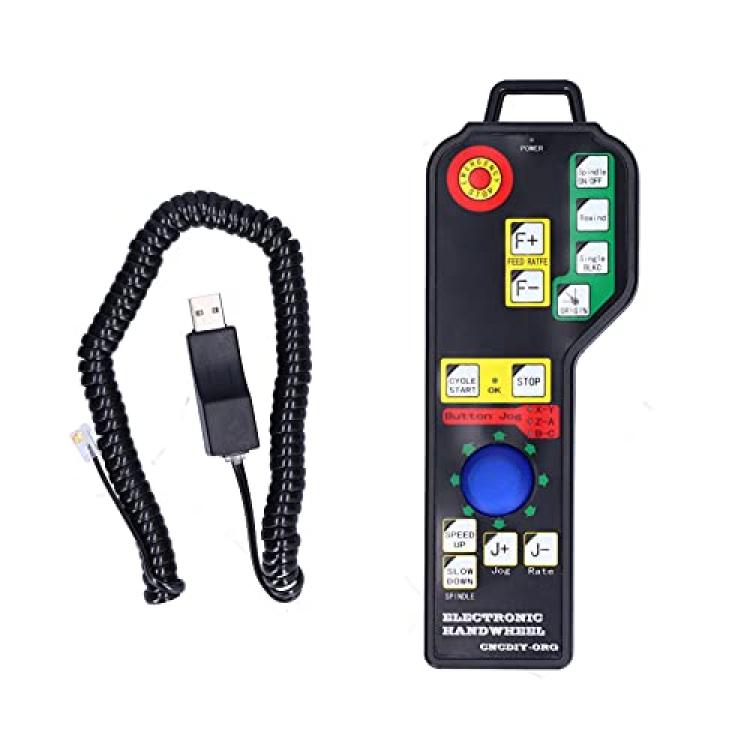

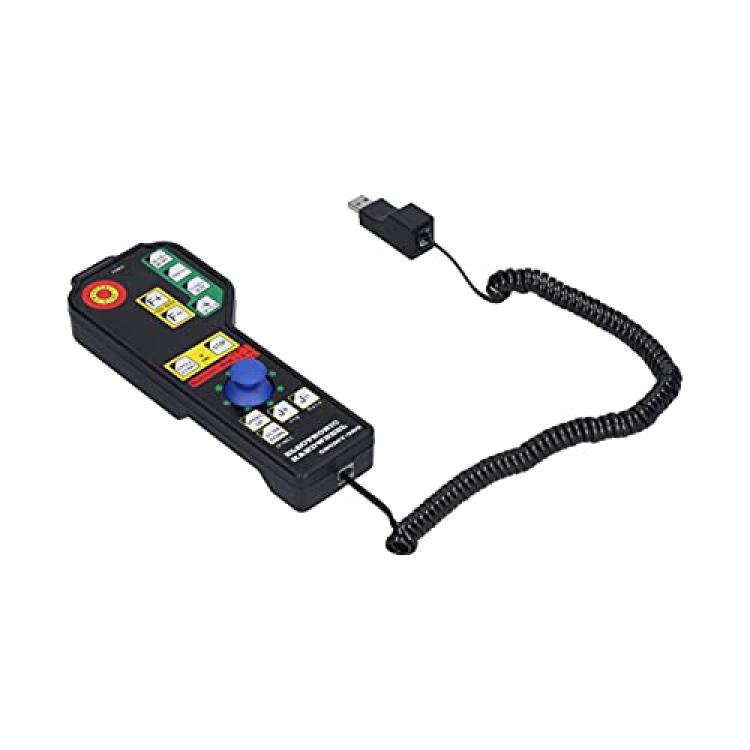

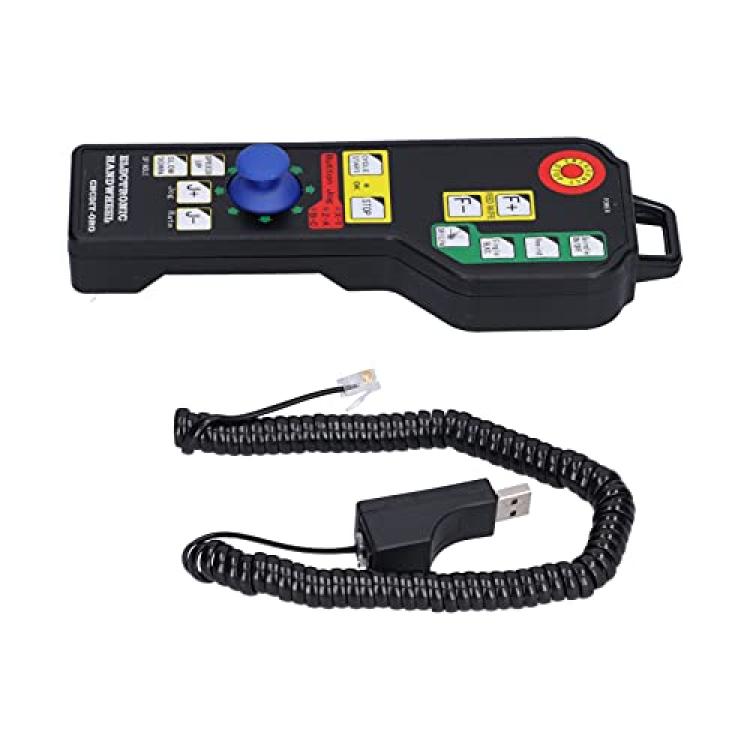

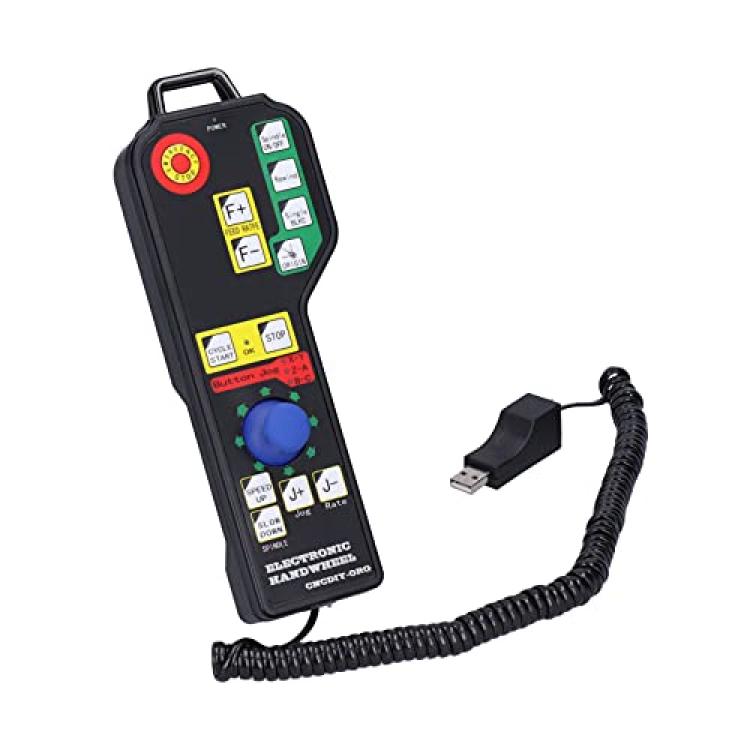

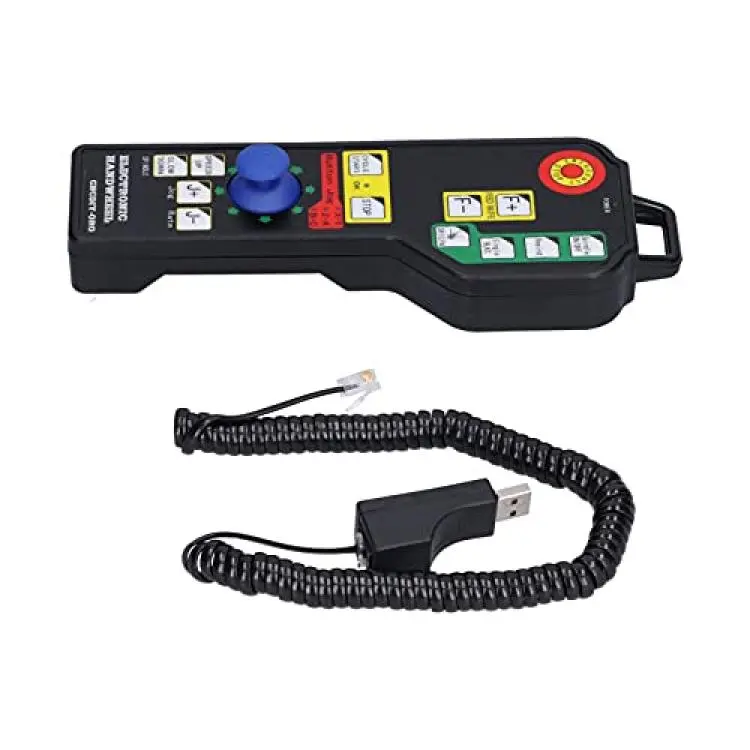

Wireless Electronic Handwheel 6-Axis Controller USB Handle Handheld Electronic Equipment for Mach3 System Handwheel Manual Pulse Generator Mach Controller USB Handwheel Controller
Availability: Pre-Order, Inquiry Price
About this product
*USB connection: The wireless handwheel controller can be connected to the computer via USB without installing any software or drivers. It is connected via the USB interface and the cable can be stretched.
*Flashing indicator light: The flashing indicator light of the wireless handwheel controller is used for movement mode and control axis selection, which can display the status of each axis very intuitively
*Rugged and durable: wireless handwheel controller, Mach3 joystick handle can be manually controlled by buttons, made of high-quality plastic material, sturdy and durable
*Handwheel control: The electronic handwheel controls the axial movement of the motor by rotating the handwheel. The controller has all the common functions of Mach3 operation
*Speed mode: When the wireless handwheel controller uses speed mode, the direction of the vibrating encoder determines the direction of movement of the shaft, and the speed of shaking the encoder wheel determines the speed of axial movement
Description
Feature:
The handwheel can be connected to the computer via USB without additional drivers
How to Use:
MACH3 software setting instructions:
If the number of axes is enabled, if you use 4 axes, please check 4 axes in the settings?port pin motor output in the software. Under normal circumstances, only the hot keys of A B C axes need to be set and other functions are not required to be set by default.
How to set A B C axes
For example, to set the A?axes, first press the joystick for 3 seconds to switch to Z?A, and click on the software to open the hotkey scanning dialog box, click A/U++ and then move the joystick to the right, A+ is set, set A?click A/U?? on the software, and then turn the joystick to the left A? to set it.
The B C axes is also set in the same way.
Specification:
Item Type: Wireless Handwheel Controller
Applicable System: Mach System
Mode of Operation: Handheld
Power Supply Mode: Direct Current
Interface: USB
Length: Approx. 222mm / 8.7in
Width: Approx. 80mm / 3.1in
Grip: Approx. 56mm / 2.2in
Package List:
1 x Joystick Handle1 x Wire
Note:
Jog ON/OFF on MACH3 software will not work if the handle is turned off
