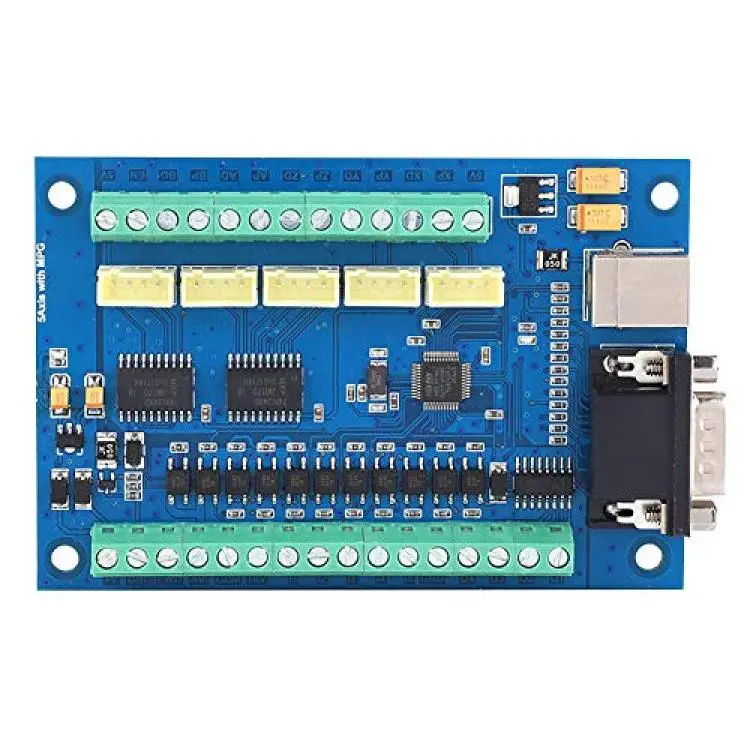

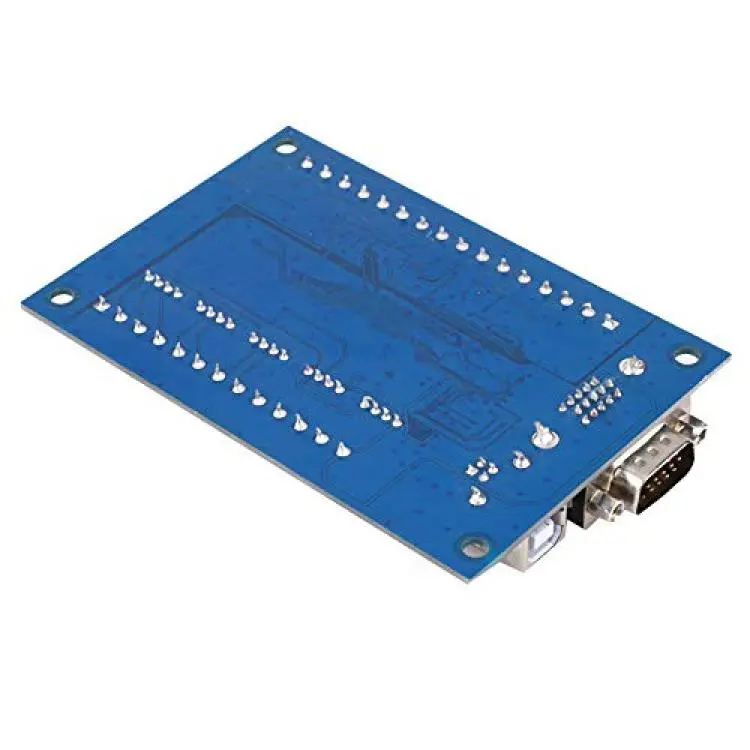

Fafeicy MACH3 USB Interface Board, Motion Controller Card,USB 12-24V 5 Axis 100KHz Motion Controller Card Breakout Board with Handwheel Interface
Availability: Pre-Order, Inquiry Price
About this product
*The MACH3 motion controller card supports Windows XP, Windows 7 32/64bit, Windows 8, Windows 10 operating systems. Applicable to all versions of mach3 software.
*The motion controller card supports CNC 5-axis control and can be connected to five stepper motor drives or servo drives. The interface board supports the external connection of the electronic handwheel, and the HDR15 interface is used to connect the handwheel for manual control of the machine tool.
*The maximum output pulse frequency of the splitter board is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applied to the strict requirements of the closed-loop driver for pulse requirements.
*Optocoupler isolation input signal interface: it can be connected with limit switch, emergency stop switch, automatic tool zero sensor, origin switch, NPN sensor switch.
*Inverter control signal interface (optocoupler isolation): output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control the speed, start and stop of the spindle.
Description
Specification:
Supply voltage: 12-24VDC
Output current: Max 500mA
Output pulse frequency: Max 100kHz

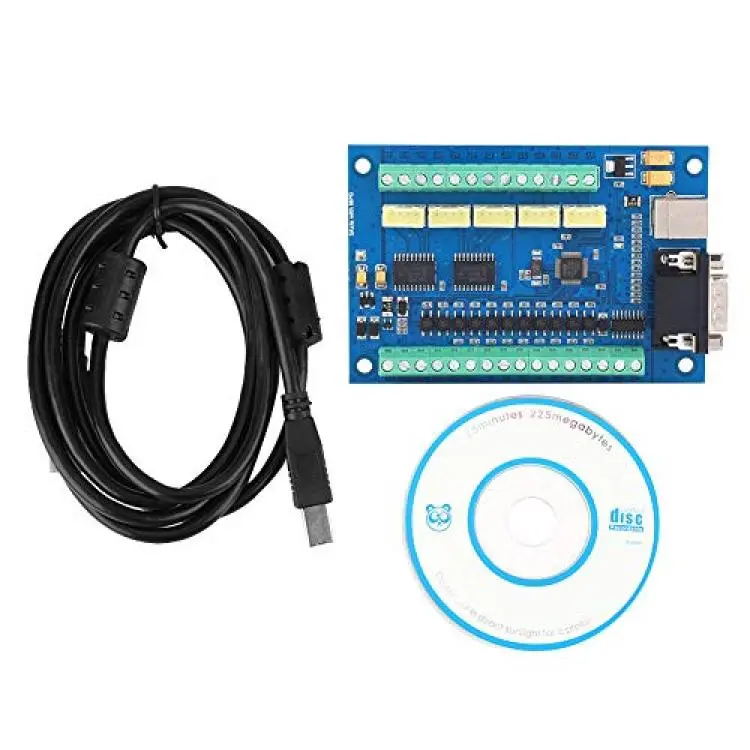

Package list:
1 x Controller Card

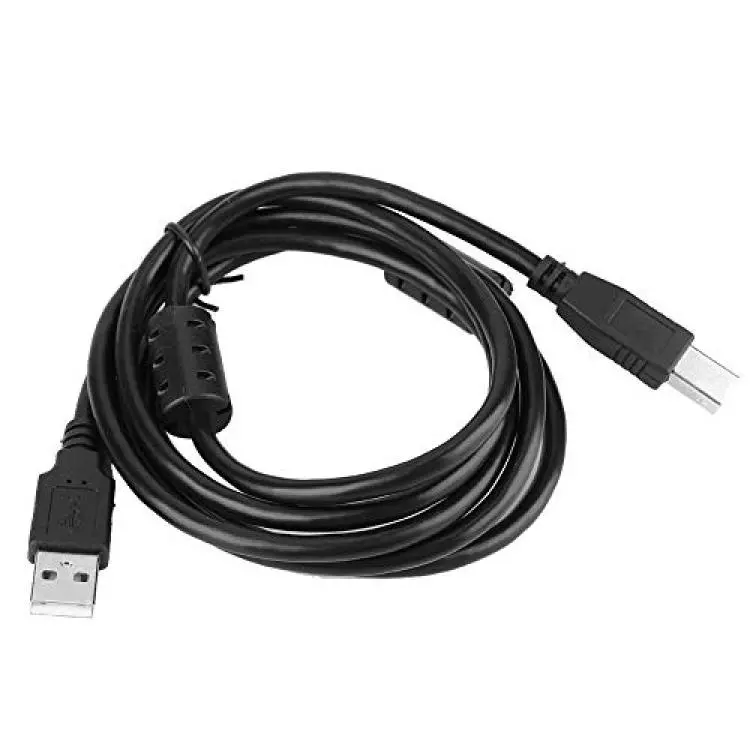

1 x USB Cable
1 x CD

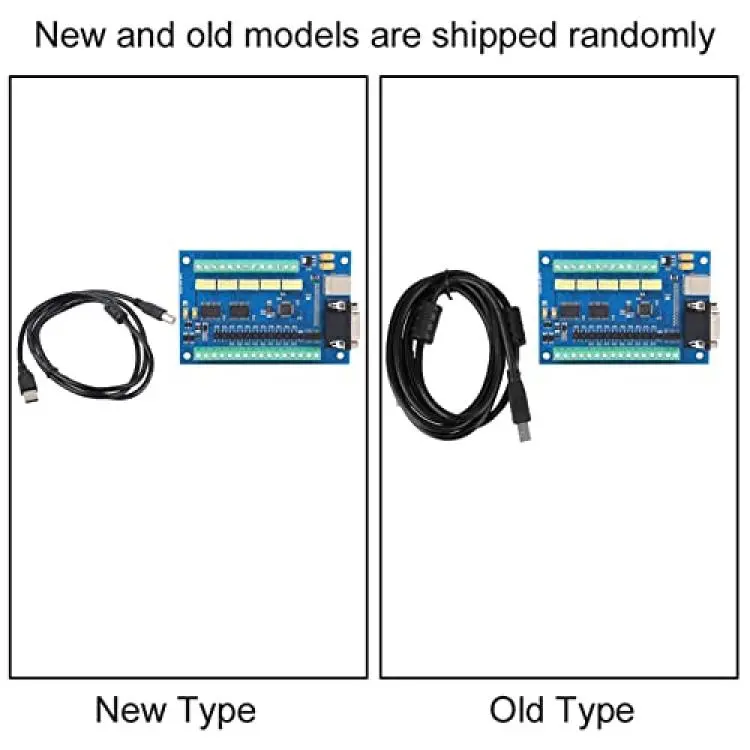

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
