Motion Controller MACH3 USB 5 Axis 100KHz Motion Controller Card Breakout Board for CNC Engraving 12-24V
About this product
*Support for Windows XP, Windows 7 32/64bit, Windows 8, Windows10 operating system.
*Applicable to all versions of mach3 software.
*Support for CNC 5-axis control, can connect five stepper motor driver or servo driver.
*The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to strict requirements of the closed-loop driver on pulse.
*Optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected.
Description
1. Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle's speed, start and stop.
2. Four universal output signal interfaces, the maximum output 500MA current, can drive relays, solenoid valves, used to control atomizer, pumps, cylinders and other equipment.
3. Support for external connect electronic hand wheel, use HDR15 interface to connect hand wheel, used for manual control of machine tools.
4. Add the enable signal interface, can be used to control the driver enable signal.
Â
Specification:
Supply voltage: 12-24VDC
Output current: Max 500mA
Output pulse frequency: Max 100kHz
Â

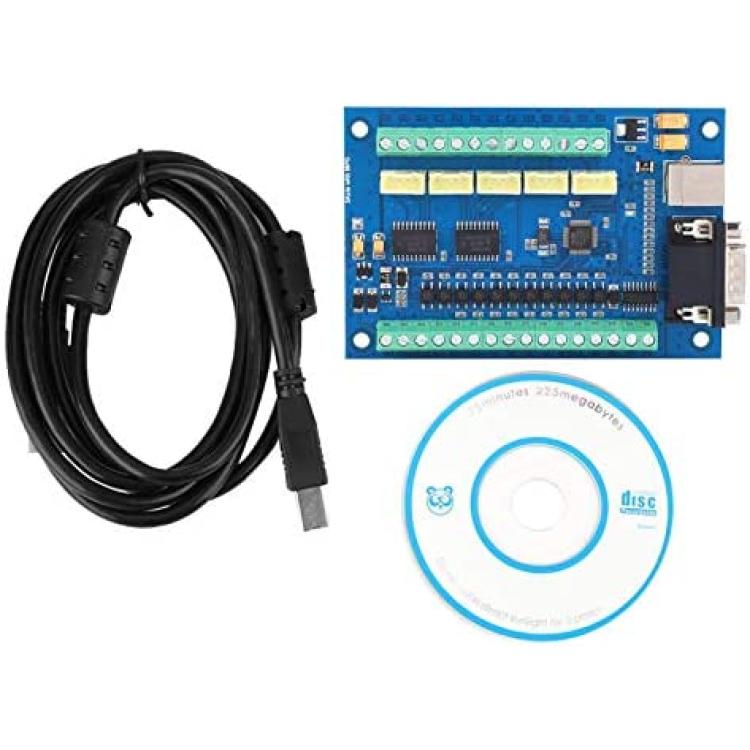

Package list:
1 x Controller Card

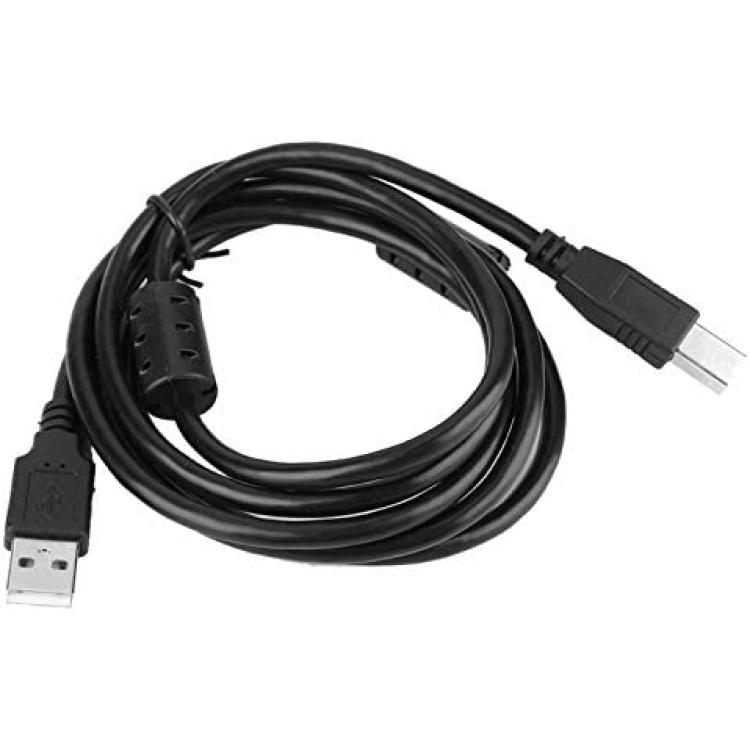

1 x USB Cable
1 x CD
