fushionsea Wireless Control Switch DC 12V 24V 36V Motor Forward and Reverse Switch, 2 Channel 30A Relay Remote Control Learning Switch Use for Garage Doors, Window, Motor & More
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 5.24 x 4.02 x 2.44 inches; 10.86 Ounces
*Date First Available : September 14, 2021
*Manufacturer : fushionsea
Description
Product Description
1.Working Voltage: DC12V-36V
2.Max Load:30A Relay, Resistive load?25A, Inductive load?20A
3.Channel: 2CH
4.Working Frequency : 433MHZ
5.Receiver sensitivity: : -110Db
6.Working temperature : -40'C - +85'C
7.Output way : Momentary. Toggle .Latched Adjusted

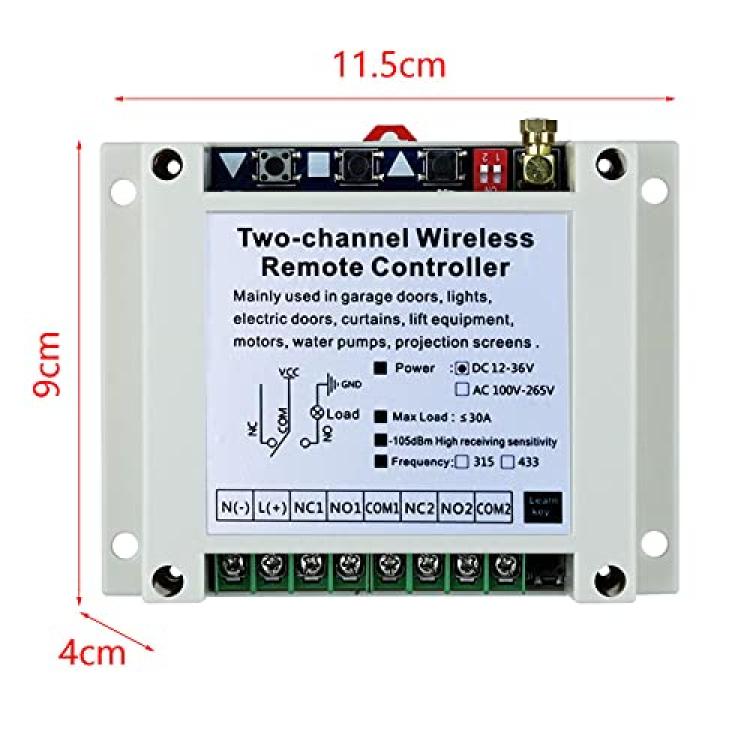

8.PCB Size : 92*65*32MM
Working mode switching (switching working mode by toggle switch)
1. Momentary——1 and 2 default Relay: Press and hold -> On; Release -> Off.
2, Toggle—— 2 to ON position Relay: Press -> On; Press same button again -> Off·
3, Latched ——1 position to ON Relay: Press -> On; Press other button -> Off.
Learning Code: Input AC12V-36V for the Receiver , Press the Learning Button until the Led indicator ON. Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.
Clearing Code: press the Learning Button and hold, the LED indicator flash 5times and OFF, it means clearing is successfully.

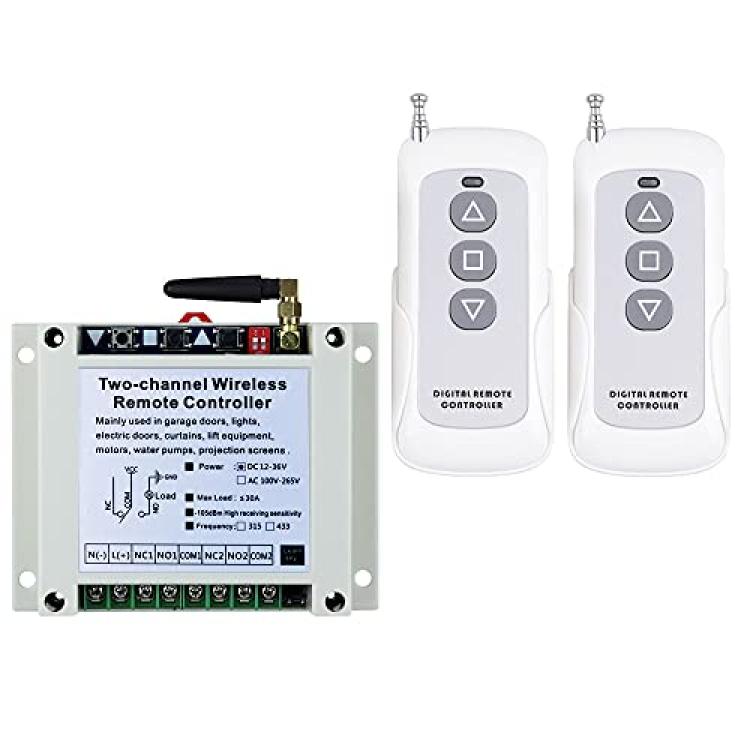

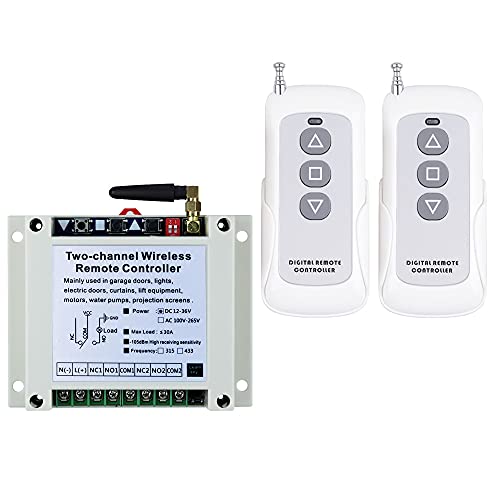

Package Includes
2 x Transmitters
1 x Receiver
