12V 24V 36V 2CH Universal Garage Door Remote Switch 433Mhz Wide Range Motor Forward and Reverse, 2 Channel Wireless Switch Garage Door keypad Universal Wireless (2X Control 433MHz)

Descriptions:

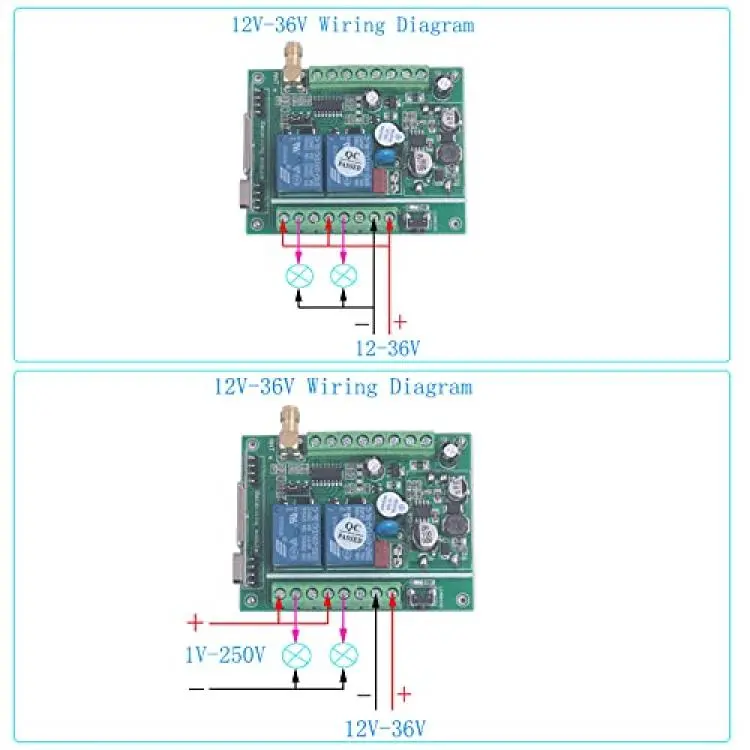

1. Working Voltage: DC 12V-36V
2. Working Frequency: 433Mhz

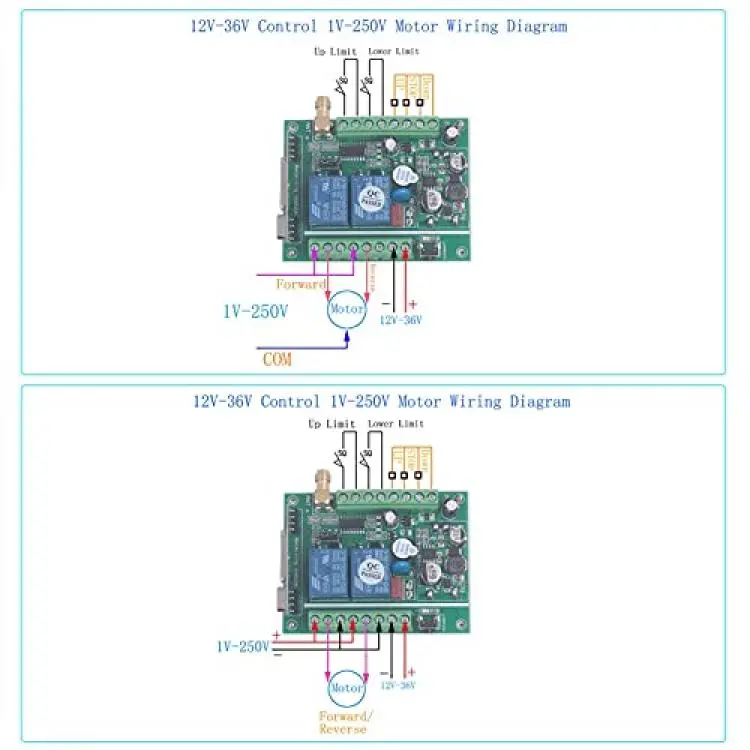

3. Max Load: 10A Relay ( have better load less than 5A)

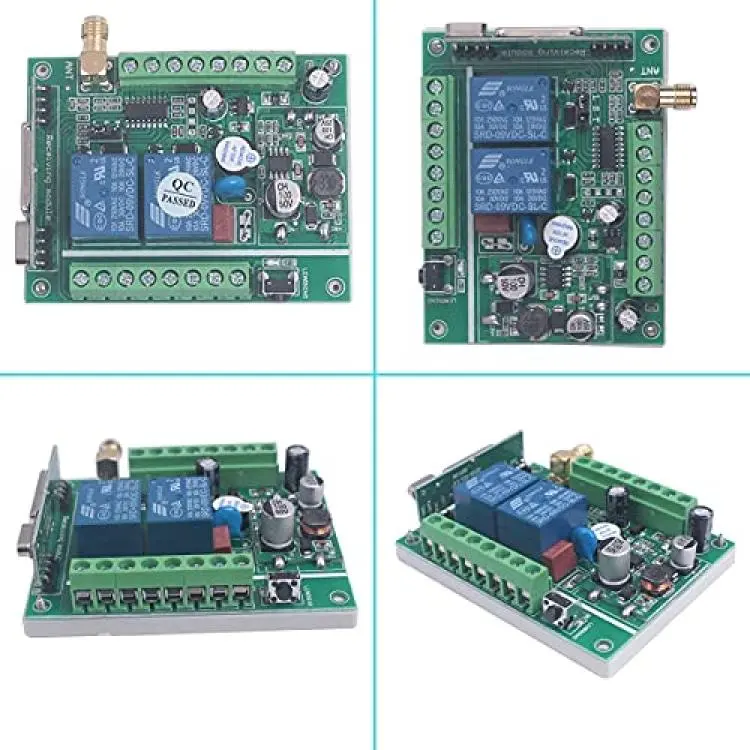

4. PCB Size:75*58*15mm Case Size :95*62*29mm
5. Function: Limit & Wire External Button
7. Out State: Momentary Latched Adjusted by the Jumper on the Receiver,
8. Working way changed by jumper on pins
Momentary: jumper doesn't connect any two pins.
Relay: Press and hold -> On; Release -> Off.
Toggle: jumper connects the pin T and pin S.
Relay: Press -> On; Press same button again -> Off·
Latched: jumper connects the pin L and pin S.
Relay: Press -> On; Press other button -> Off.
9. Learning Code :
Learn Method:
Press learn button 1 time to compatible remote control NO. 1, press learn button 2 times to compatible remote control NO. 2/3 (inter-lock)
10. Clear code :
Connecte to Power, press learn button for 8- 10S, till LED 0FF. the remote controller can' t control the switch

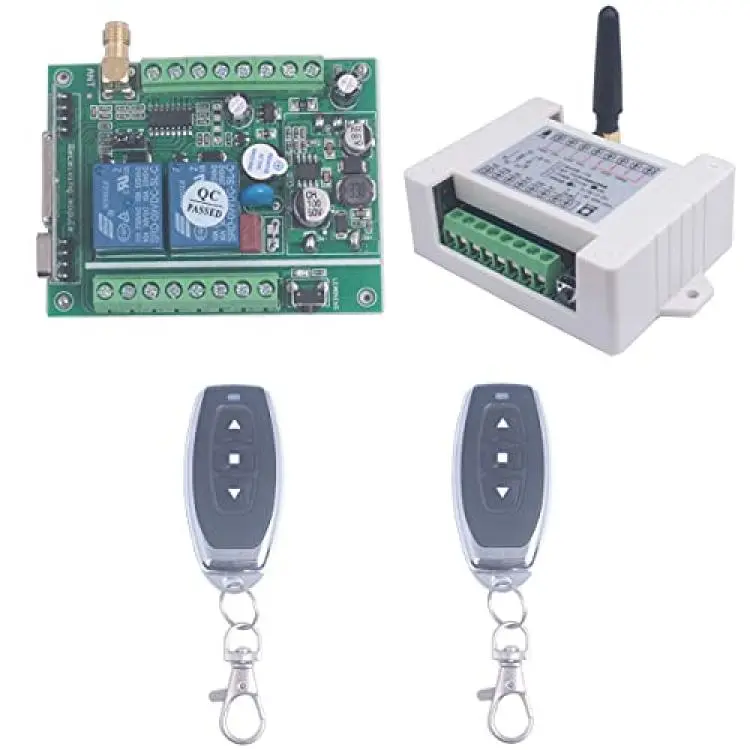

Package Include:
1 x 12V-36V 2CH Switch Receiver(with cover)
2 x Remote control Transmitter (Include battery)
