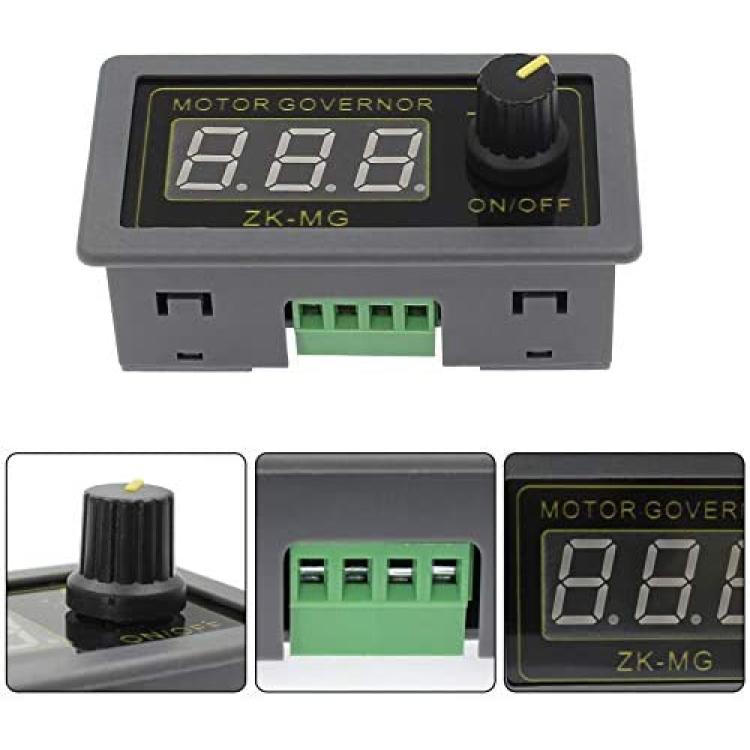

Cionyce PWM DC Motor Speed Controller Switch DC 5V 12V 24V 5-15A 150W, Adjustable Stepless Speed Regulator Switch PWM Signal Generator Driver Module with Digital Display
About this product
*Package Includes: 1 x PWM DC motor speed controller switch with digital display
*Motor Soft Start Function: When starting the motor, the current increases slowly, without inrush current, which effectively protects the motor and prolongs the service life of the motor
*Start-Stop Button Design: Infinitely variable speed controller with a start-stop button design, and can be controlled by an external switch to meet various needs

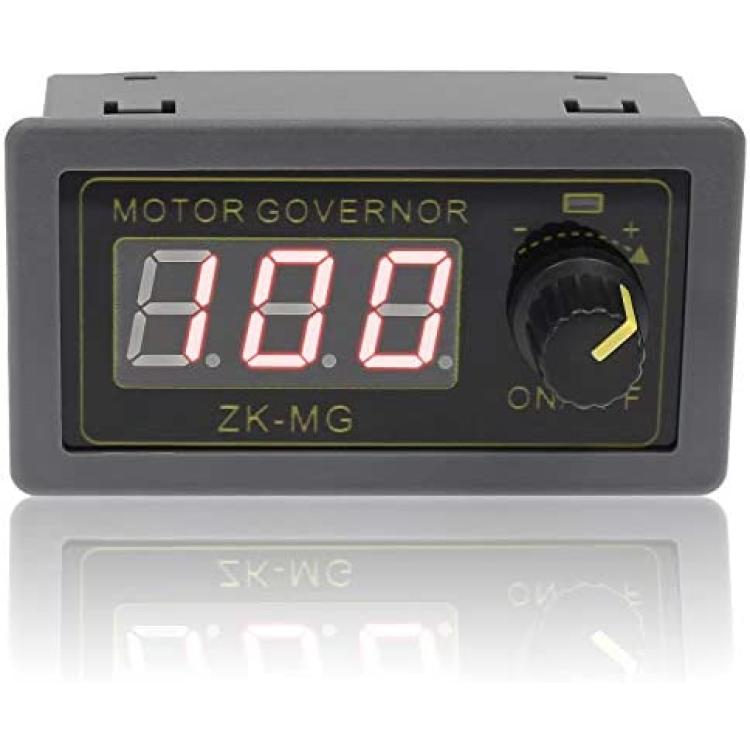

*Higher Precision: With digital display, higher precision than ordinary potentiometers. At the same time, you can set the duty cycle, the upper and lower limits of the duty cycle, and the working frequency, so that you can operate and use according to the working characteristics of the motor
*Excellent After-Sales Service: We focus on quality and after-sales service. If you are dissatisfied with our products, please let us know. We promise to give you 100% satisfactory after-sales service. No risk. Dont hesitate. Just buy it.
Description
Specification

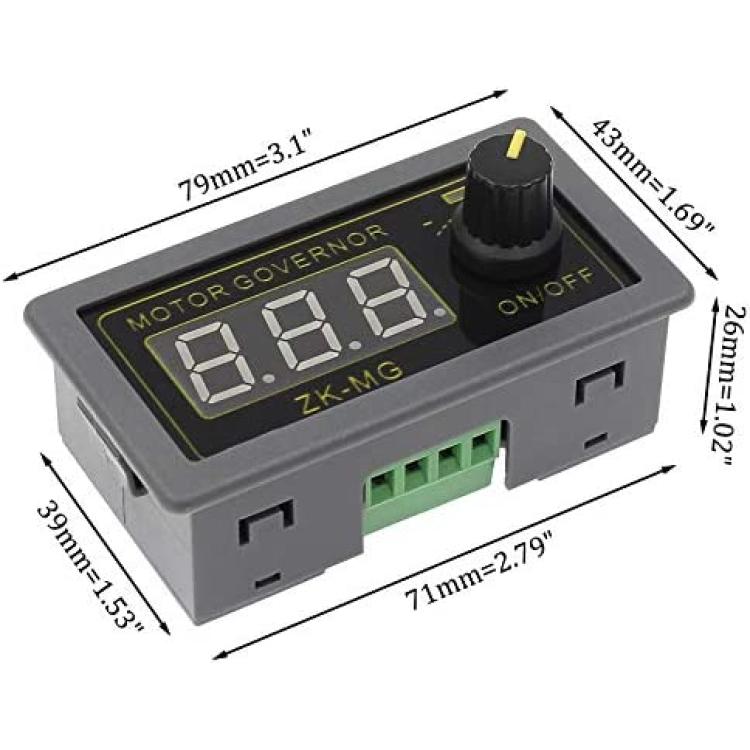

Size: 3.11" x 1.69" x 1"/79 x 43 x 26mm(L*W*H)

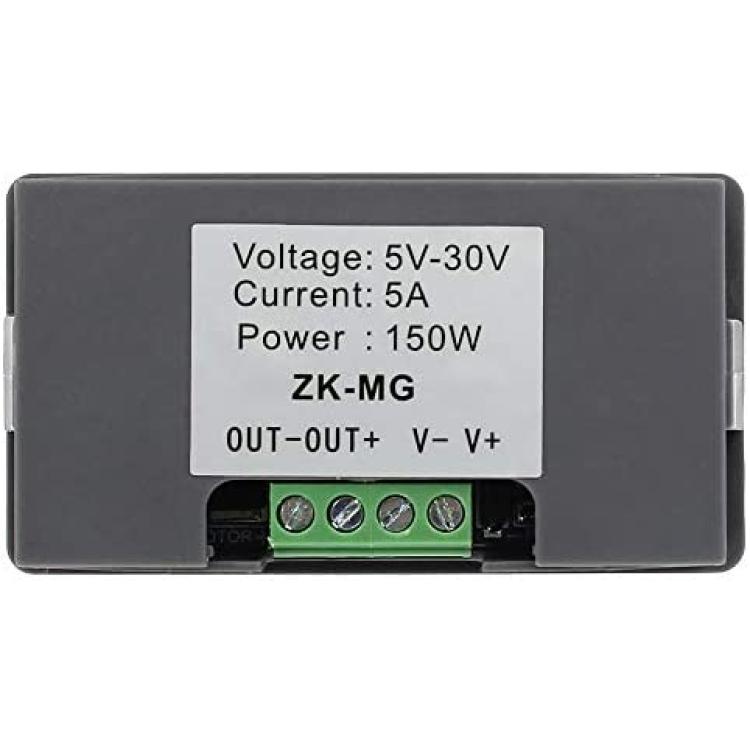

Working Voltage: DC 5V~30V
Rated Current: 5A
Maximum Current: 15A
Maximum Power: 150W
Working Frequency: 1KHz~99KHz
Frequency Accuracy: 1%
frequency Resolution: 1KHz
Working Cycle: 0-100%
Working Cycle Resolution: 1%
Working Temperature: -40-80?
Working Humidity: 0%-95%RH

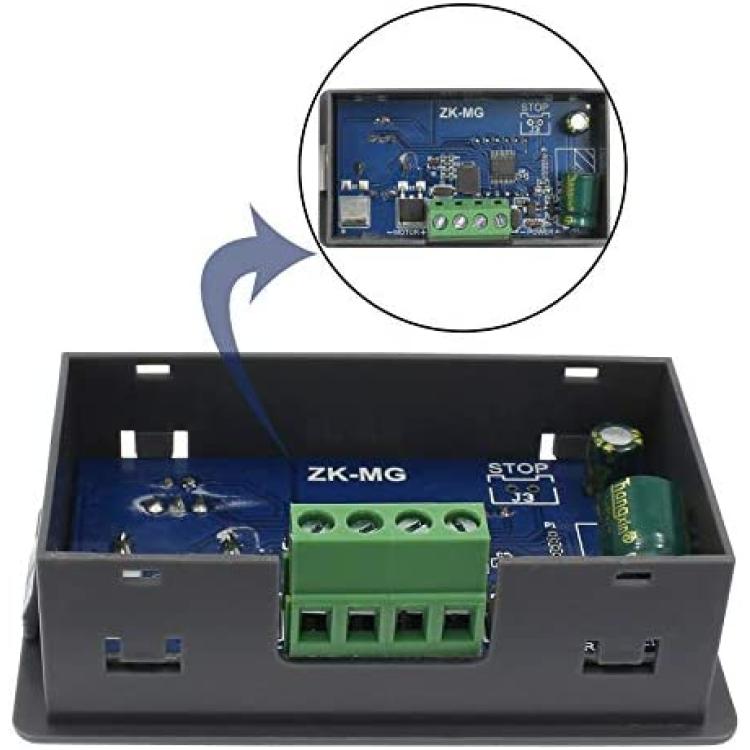

High-Quality Material: High-quality circuit board
Parameter Setting Introduction
Short Press The Potentiometer: Select the parameter to be set. Including the duty cycle lower limit, upper limit and output frequency, you can switch by yourself.
The lower limit of the duty cycle is displayed as "L" + two digits; the upper limit of the duty cycle is displayed as "H" + two digits or "100"; and the operating frequency is displayed as "F" + two digits.
Long Press The Potentiometer: Save the parameters and exit the setting mode to the normal display mode.
Rotate The Potentiometer Clockwise: Increase the setting value.
Rotate The Potentiometer Counterclockwise: Decrease the setting value.

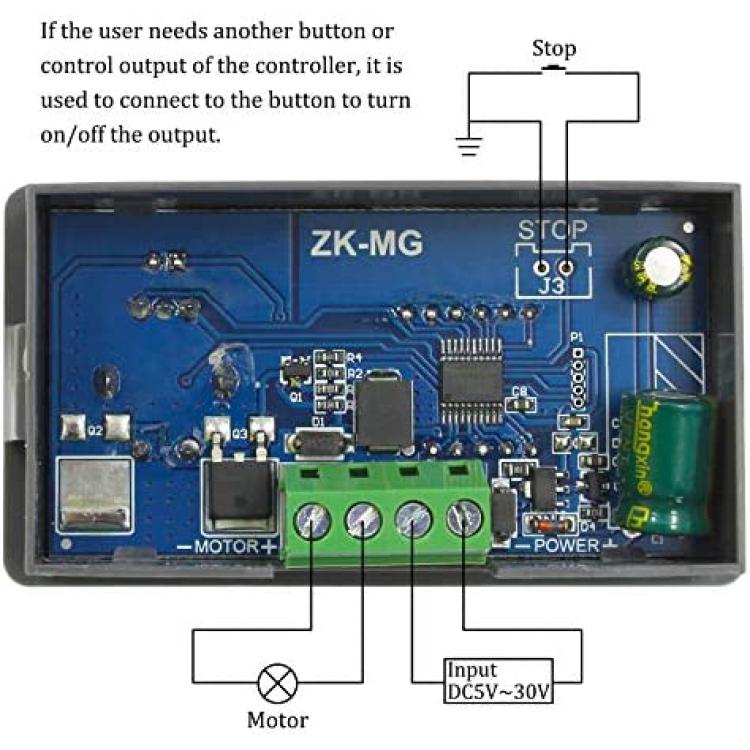

STOP Port On The Back: If the user needs other buttons or the control output of the controller, it is used to connect to an external switch button to turn on/off the output.
Kindly Reminder
This module is a PMW driver, which can control the controlled device by changing the frequency and duty cycle of the output signal. It is not a voltage converter, and it has no function to change the output voltage.
