PWM DC 6-60V 12V 24V 36V 48V 30A 1500W PWM DC Motor Speed Controller Speed Adjustable Stepless Governor Regulator, Motor Speed Controller with Start Stop Switch with Digital Display
Availability: Pre-Order, Inquiry Price
About this product
*☞ 【Premium quality】made with high quality circuit board which ensures a longer service life.and this simple and easy-to-use DC motor speed controller has an stable performance.

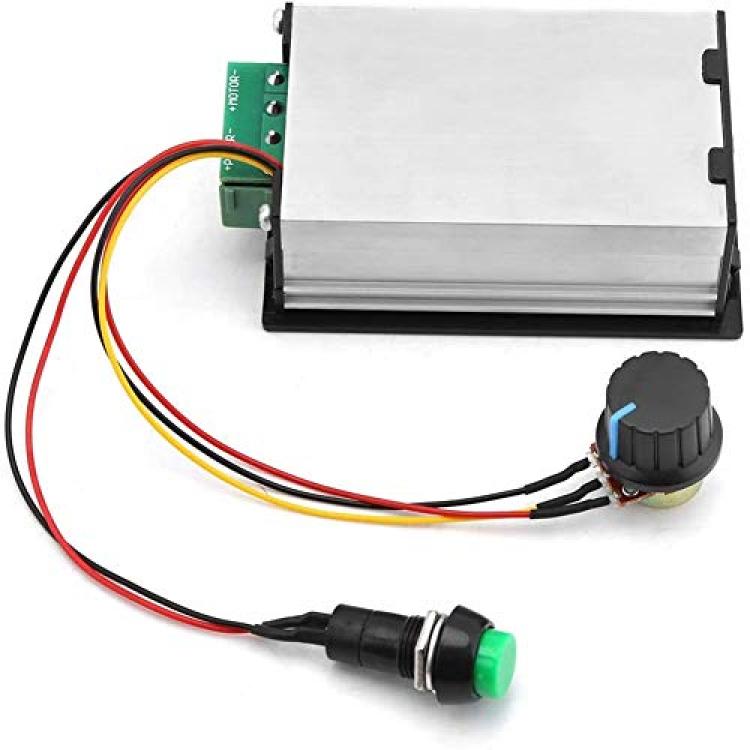

*☞ 【Product introduction:】The motor speed controller uses screw terminals for convenient and quick wiring. It is equipped with an instantaneous start/stop switch and a speed control potentiometer.
*☞ 【Sellers warm tips: 】1. The digital display is the percentage non-motor actual speed; 2. The input voltage must be divided into positive and negative, can not input 220V household electricity, the input voltage should be equal to the rated voltage of the motor (6-60V), such as the rated voltage of the motor 12 input 12V motor 36V input 36V motor.
*☞ 【Speed Controller Features】Comes with a momentary start/stop switch and a speed control potentiometer.
*☞【After-sales service guarantee】Thank you for your support. We care about customers and ensure that buyers get what they want. We hope to provide customers with value-for-money services. If there is any quality problem, please contact us in time. Thank you.
Description
? Product features:

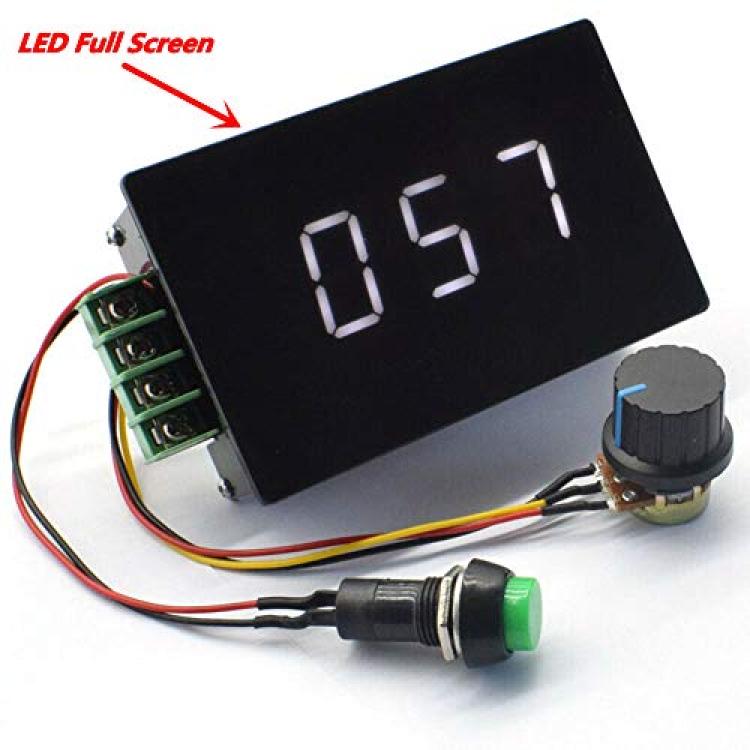

Digital display 0-100 speed percentage table is accurately set.
Jog the start-stop switch.
Panel type embedded installation.
6-60V wide voltage 30A
? Product parameters:
Input voltage: DC6-60V (the specific voltage is equal to the rated voltage of the motor) Output voltage: linear under load
Output current: 0-30A Continuous current: 20A
Type of speed regulation: current regulation Mode of speed regulation: potentiometer
Support motor: brush motor Forward rotation and reverse rotation: unidirectional
Speed ??adjustment range: 0-100% Control frequency: 15KHZ

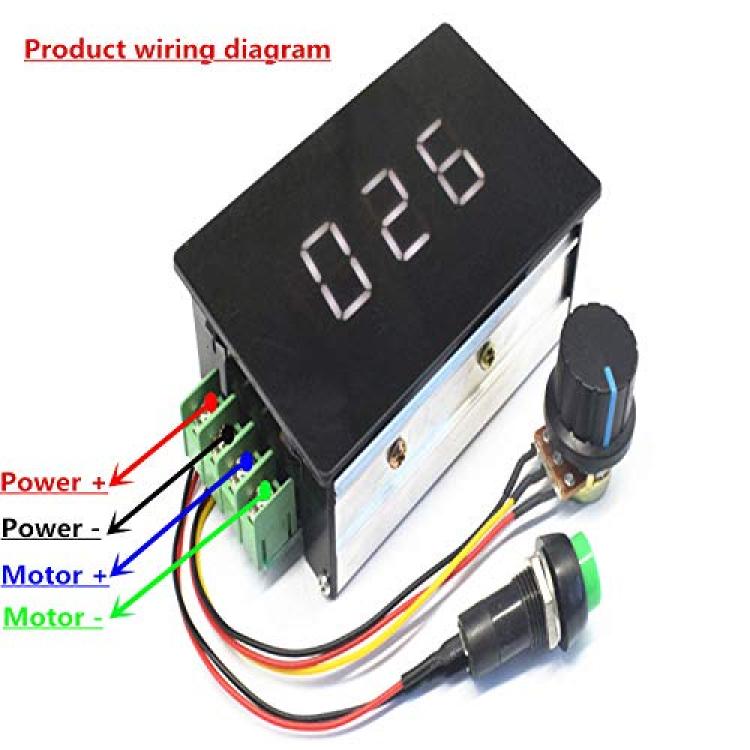

Wiring type: fence-type terminal, knob wire length: 18CM

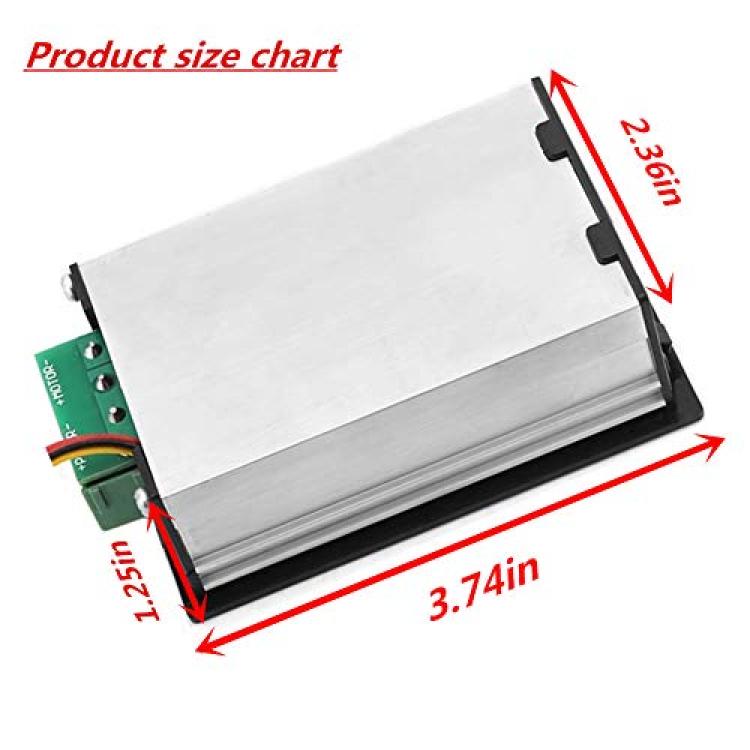

Module size: length*width*height 96mm*61mm*34mm net weight: 120g
Fixed installation: embedded length*width 92mm*56mm speed digital display: percentage 0-100
? Note: The digital display only shows 0-100 non-motor actual speed
For example: The maximum speed of the motor is 5000 rpm. When 5000 rpm, it displays 100
50 at 2500 rpm
? Note: The input voltage must be divided into positive and negative, can not input 220V household electricity
The input voltage should be equal to the rated voltage of the motor (within 6-60V)
Such as motor rated voltage 12 input 12V motor 36V input 36V

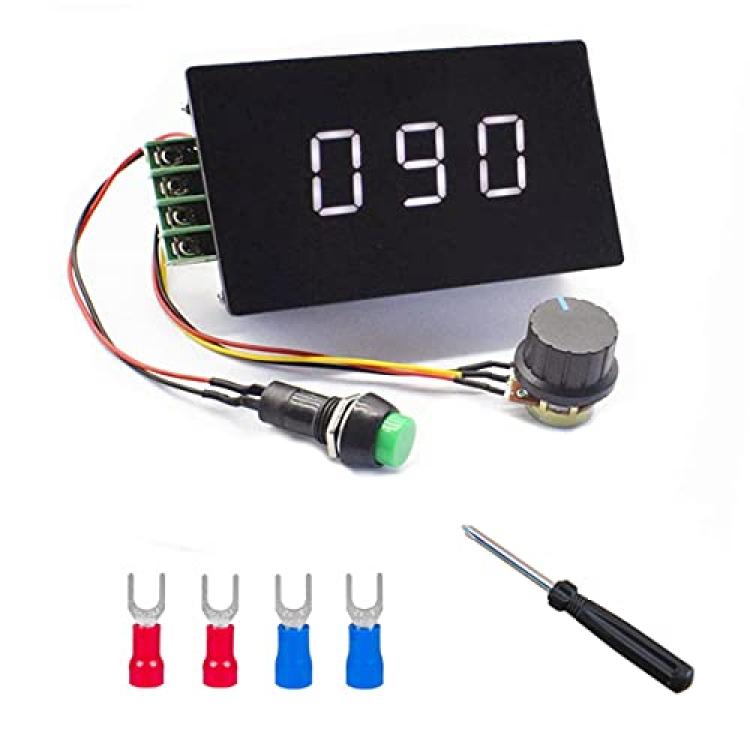

? Packing list:
1 *DC motor speed controller
? Notes:
1. Manual measurement, please allow error 1~3mm, thank you.
2. Due to differences between different monitors, the picture may not reflect the actual color of the project. We guarantee the same style as shown in the picture.
