SDTC Tech 6V-30V 8A DC Motor Speed Controller 6V 12V 24V PWM Stepless Speed Control Switch Adjustable Driver Regulator with Duty Cycle LED Digital Display & Knob
About this product
*DC PWM Motor Speed Controller, used for pump speed regulation, light dimming etc. by adjusting Pulse-Width-Modulated (PWM).
*Work Voltage: 6V - 30V, Rated Current: 6A, Max Current: 8A, Speed Range: 0% - 100%.
*LED display: displayed the duty cycle "000" - "100", it is helpful for positioning adjustment speed.
*With power switch, turn on or off the controller easily.
*Stepless Speed Control Switch adopts variable knob potentiometer, high efficiency, high torque, easily deliver 5A continuous current to your DC motor or other load.
Description
Name: DC 8A PWM Motor Speed Controller
Work Voltage: DC 6V - 30V
Rated Current: 6A
Max Current: 8A
Speed Range: 0% - 100%
PWM Frequency: 16kHz
Knob Potentiometer: Resistance B100K, Length 20cm, Trepanning 8mm

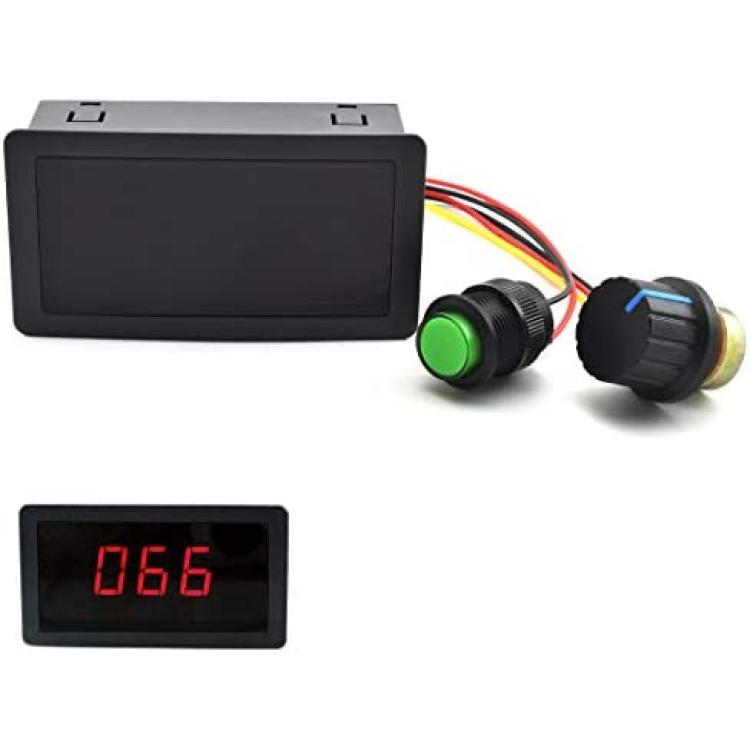

LED Display: 3-digit, "000" - "100", (For example displayed "033", it means the PWM output duty cycle is 33%)
Button Switch: Turn On or Off the controller board
Module Size: 79 *42 * 24mm
Note:
1. Do not reverse positive and negative to power controller, it will damage the module.
2. Before you attempting to wire the controller, make sure power is off.
Package Include:
1pcs DC Motor Speed Controller with LED Display
