6V-30V 8A DC Motor Speed Controller 6V 12V 24V PWM Stepless Speed Control Switch Adjustable HHO Driver Regulator Duty Cycle LED
Availability: Pre-Order, Inquiry Price
About this product
*6V-30V 8A DC Motor Speed Controller 6V 12V 24V PWM Stepless Speed Control Switch Adjustable HHO Driver Regulator Duty Cycle LED
*Developed country Estimated Delivery Time: 7-18 days by Special line. 10-30 days for other country..We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
*6V-30V 8A DC Motor Speed Controller 6V 12V 24V PWM Stepless Speed Control Switch Adjustable HHO Driver Regulator Duty Cycle LED
*Developed country Estimated Delivery Time: 7-18 days by Special line. 10-30 days for other country..We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
*Date First Available : October 21, 2019
Description

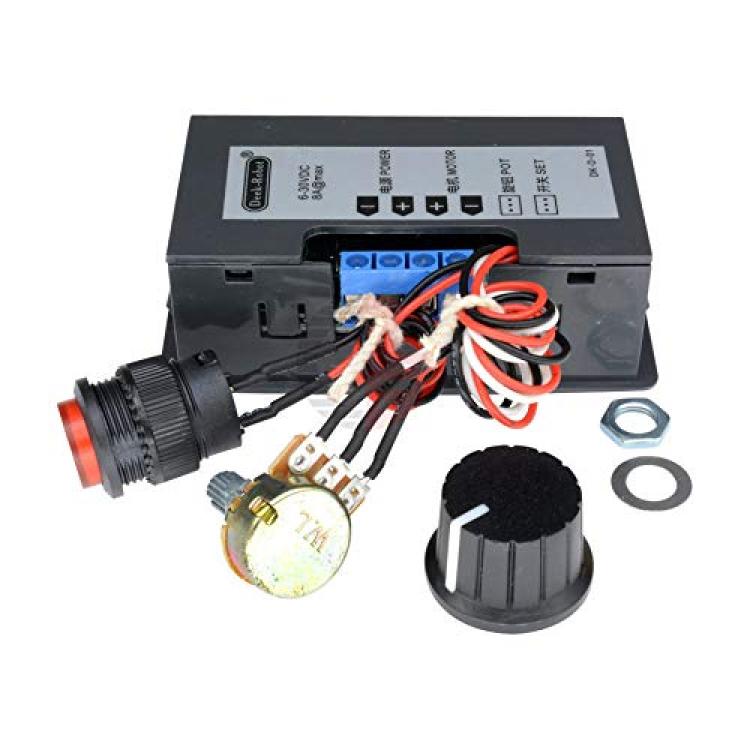

6V-30V 8A DC Motor Speed Controller 6V 12V 24V PWM Stepless Speed Control Switch Adjustable HHO Driver Regulator with Duty Cycle LED Digital Display & Knob
DC PWM Motor Speed Controller, used for pump speed regulation, light dimming etc. by adjusting Pulse-Width-Modulated (PWM).
Work Voltage: 6V - 30V, Rated Current: 6A, Max Current: 8A, Speed Range: 0% - 100%.
LED display: displayed the duty cycle "000" - "100", it is helpful for positioning adjustment speed.
With power switch, turn on or off the controller easily.
Stepless Speed Control Switch adopts variable knob potentiometer, high efficiency, high torque, easily deliver 5A continuous current to your DC motor or other load.
Specifications:
Model: DC 8A PWM Motor Speed Controller
Work Voltage: DC 6V - 30V
Rated Current: 6A
Max Current: 8A
Speed Range: 0% - 100%
PWM Frequency: 16kHz
Knob Potentiometer: Resistance B100K, Length 20cm, Trepanning 8mm

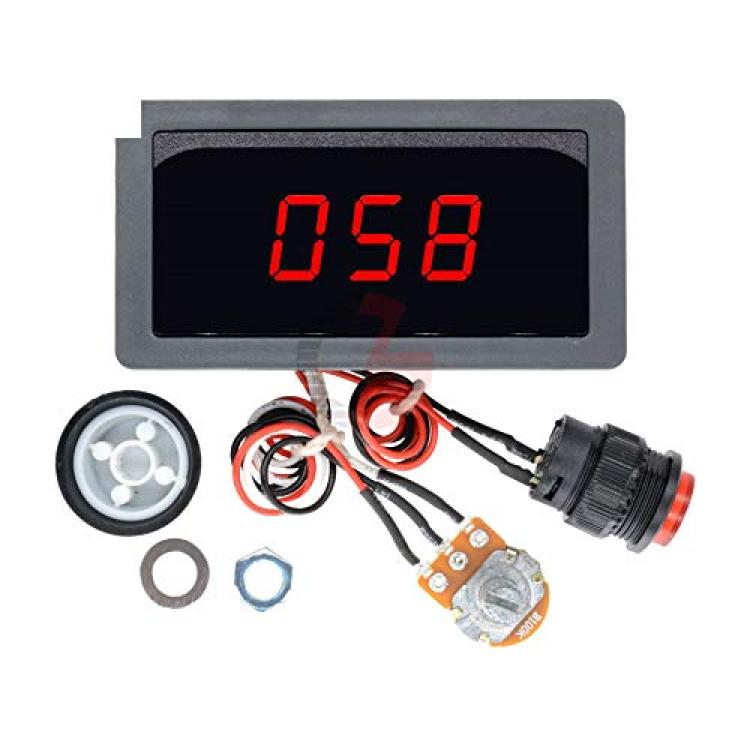

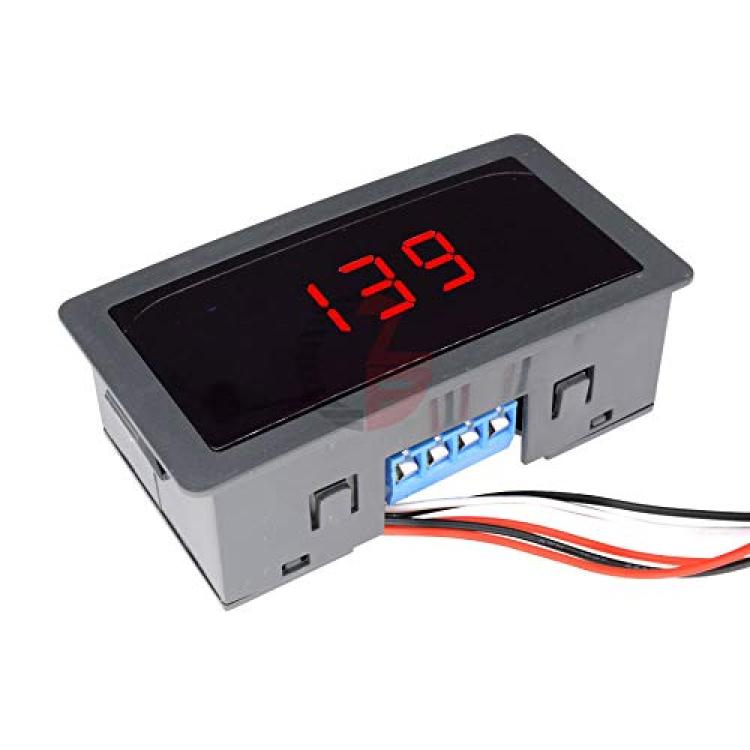

LED Display: 3-digit, "000" - "100", (For example displayed "033", it means the PWM output duty cycle is 33%)

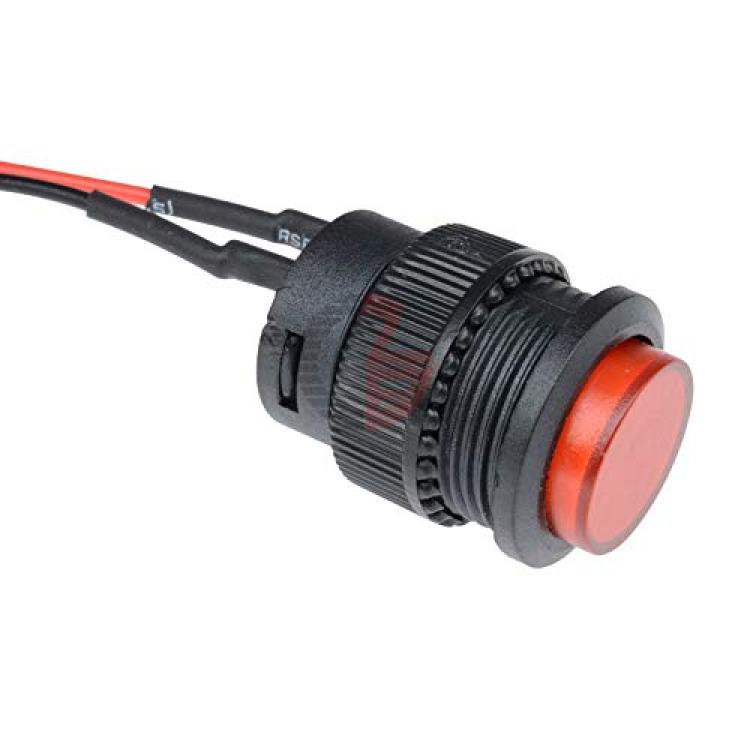

Button Switch: Turn On or Off the controller board
Module Size: 79 *42 * 24mm
Notes:
1. Do not reverse positive and negative to power controller, it will damage the module.
2. Before you attempting to wire the controller, make sure power is off.
Package Included:
1 x Speed Controller
