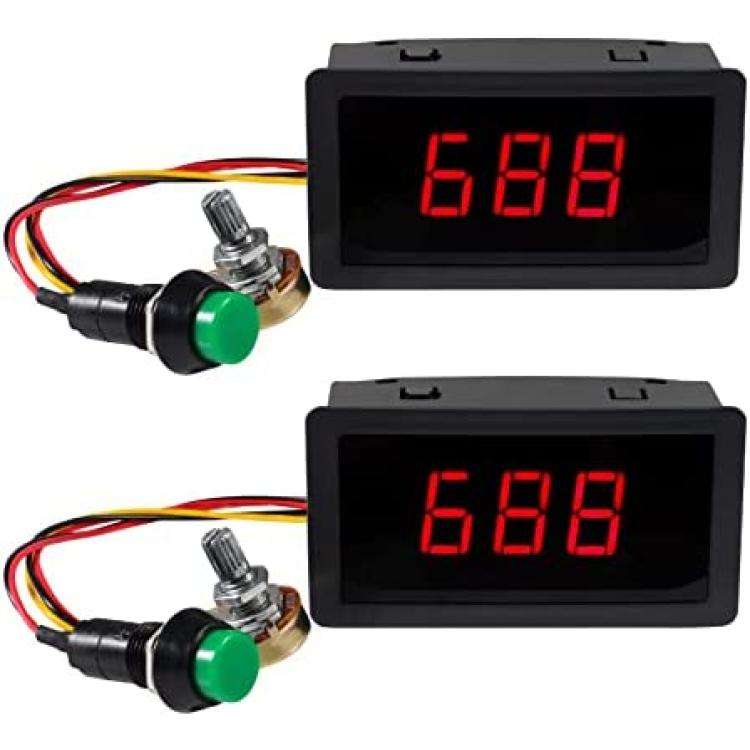

2pcs 6V 12V 24V Digital Display LED DC Motor Speed Controller,8A DC Motor Speed Controller PWM Stepless Speed Control Switch Driver with Duty Cycle LED Digital Display & Knob CCM5D
About this product

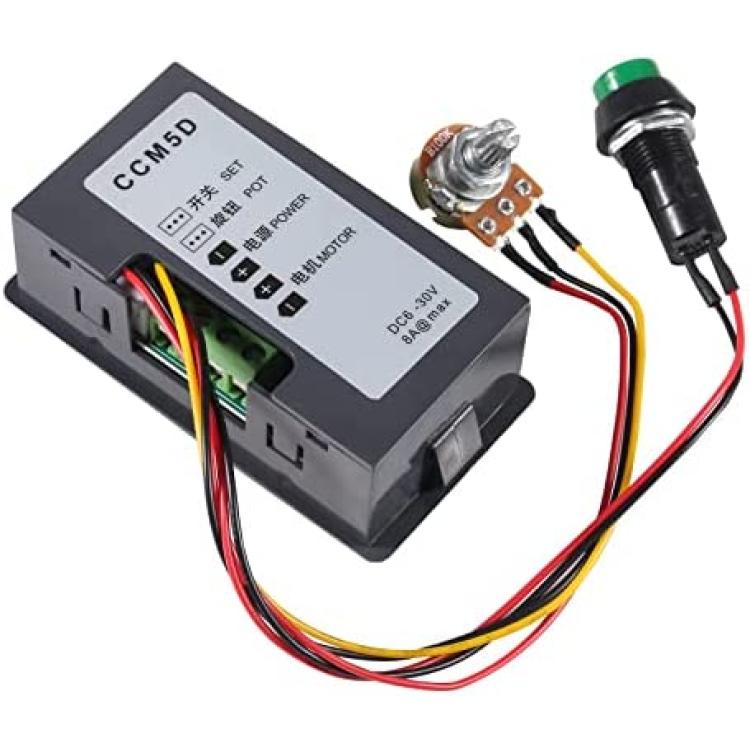

*【CCM5D Governor】working voltage 6-30V, rated current 6A, maximum current 8A, speed range 0-100%

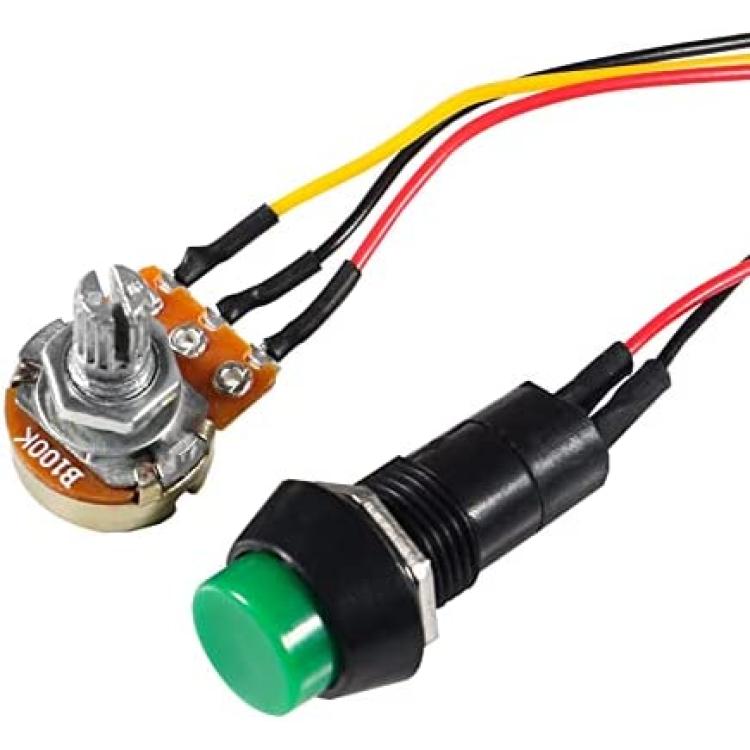

*【Potentiometer】Resistance B100K, wire length 20cm, opening 8mm, PWM frequency: 16kHz,actual input voltage × n% (n is the value displayed by the governor)
*【With Knob】Standard industrial-grade light touch knob, one touch will enter the sleep state, and then lightly press to restart the work
*【LED Display】Displays the duty cycle "000"-"100", the knob realizes 0-adjustment, and at the same time displays the value of 0-100 on the digital display screen, which is convenient for customers to locate the speed and improve the quality of the equipment
*【NOTE】The input of the DC motor governor is direct current and cannot be directly connected to alternating current, otherwise it will burn out! ! ! Do not reversely connect the positive and negative terminals of the DC power supply, otherwise the governor may be damaged
Description
Specification:
CCM5D DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
Large 0.56 inch 3-digit LED display numbers to allow viewing under the most adverse conditions.
The display range of 3-digit LED display is 000 - 100. (For example, displayed 066 as the picture 1, it means that the PWM output duty cycle is 66%.)
Adjustable speed range is 0%-100%.
Suitable for the DC motor (or DC load) within 6A, Peak current 8A.
Incorporate a push key. Push closed, and the next push it to open.
Package Including:
1 x DC Motor Speed Controller
Kind tips?

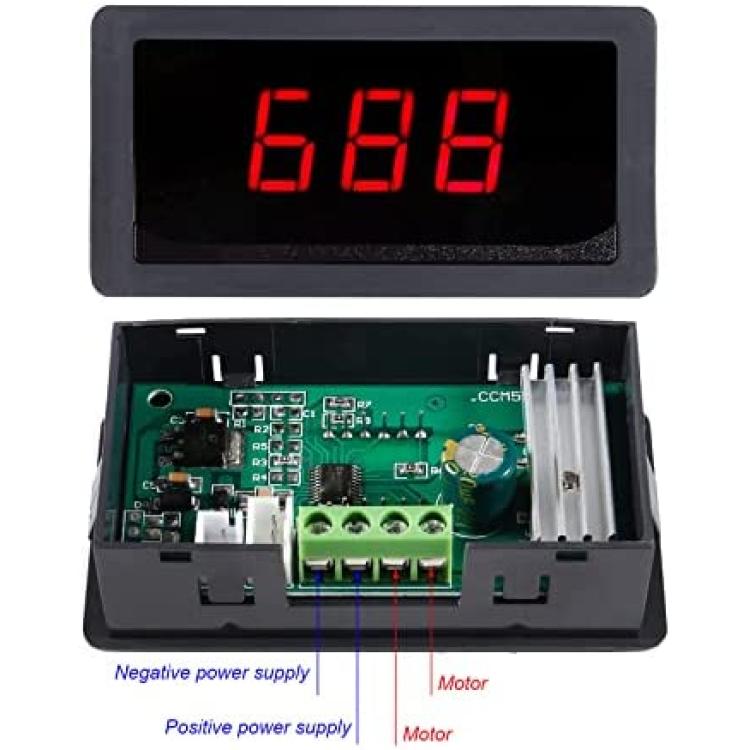

1. The input of the DC motor governor is DC, not AC (such as household 220V AC), otherwise it will burn out
2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged
3. The motor can be positive or negative. When the running direction is inconsistent with the expected value, the direction can be changed by adjusting the wire sequence.
4. The potentiometer knob can change the output duty ratio of the governor, thereby changing the motor speed
