PEMENOL Motor Speed Controller PWM DC 5V 12V 24V 150W Adjustable Speed Regulator with Stepless Variable Rotary Switch PWM Signal Generator Driver Module

PEMENOL Motor Speed Controller PWM DC 5V 12V 24V 150W Adjustable Speed Regulator with Stepless Variable Rotary Switch PWM Signal Generator Driver Module

Name: PEMENOL Motor Speed Controller PWM DC 5V 12V 24V 150W Adjustable Speed Regulator with Stepless Variable Rotary Switch PWM Signal Generator Driver
Brand: ‎PEMENOL
SKU: MM537
Availability: InStock

Brand: ‎PEMENOL
Product Code: MM537
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*★Digital Rotary Encoder Button: The rotary encoder adopts the principle of digital pulse, the output will be as much as you rotate it, and the same value will be input when you rotate it next time. Good repeatability, high precision, can be quickly adjusted to the value you want

*★Soft-start Protection: The motor controller has a soft-start protection function that can effectively reduce the inrush current, protect the motor and prolong the life of the motor

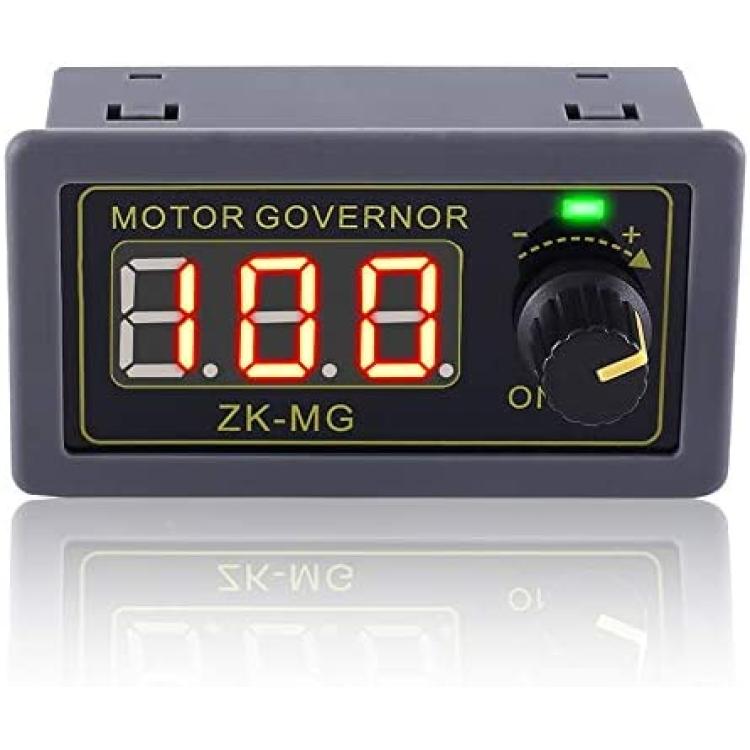

*★Duty Cycle, Duty Cycle Upper and Lower Limits and Working Frequency Can Be Set: The 3 digits LED motor speed regulator can adjust the duty cycle, the upper and lower duty cycle limits and the operating frequency. Convenient for customers to use according to the working characteristics of their own motors. The adjustable electronic speed controller can automatically save the set parameters to prevent data loss after a power failure

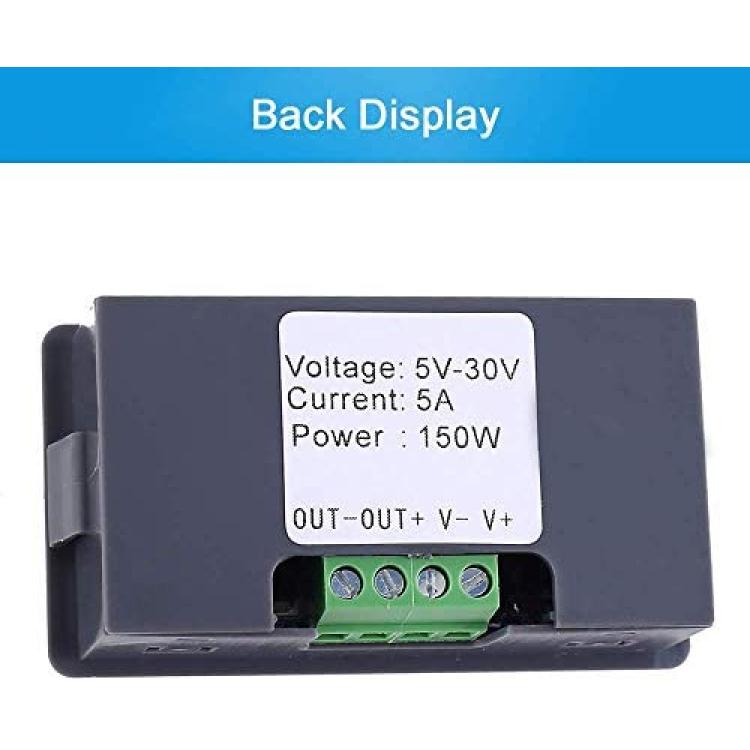

*★With the Start and Stop Button: The PWM DC motor governor with start and stop button, and can be controlled by an external switch, meet your multiple control needs. Maximum power: 150W. Working voltage: DC5V~30V, input with anti-reverse connection protection

Description

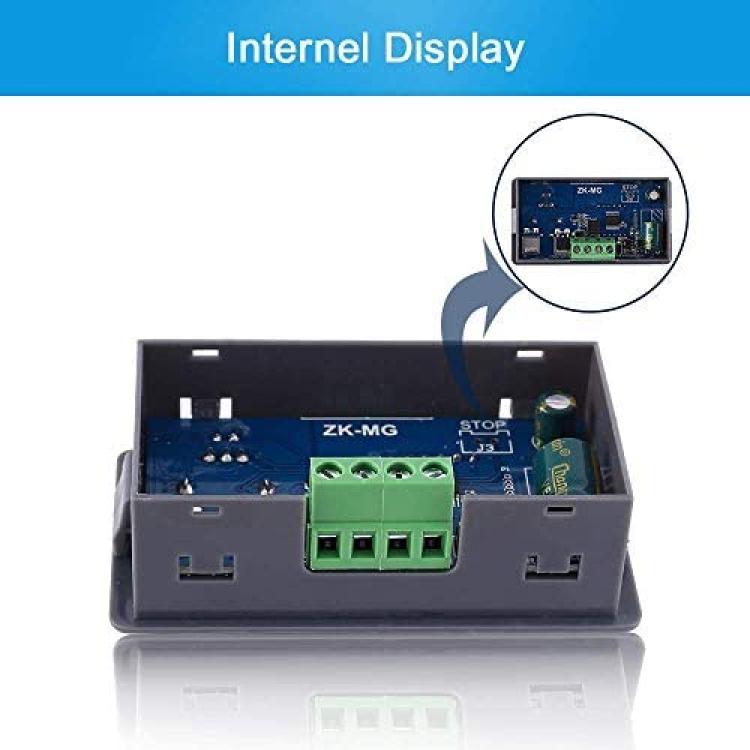

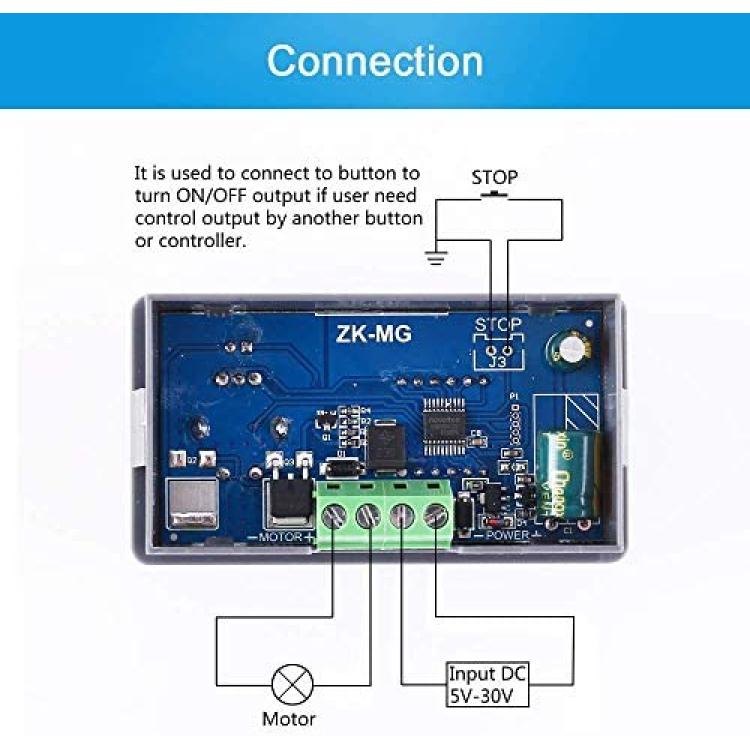

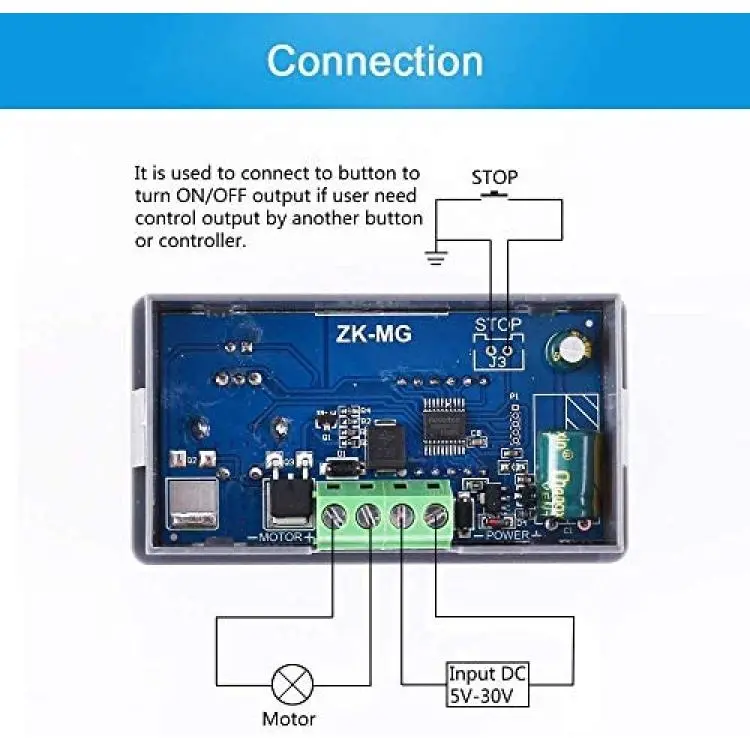

Short press potentiometer: Select the parameter you want to set including Lower Limit Value of duty cycle, Upper Limit Value and Output Frequency, which could be switched by yourself.Long press potentiometer: Save parameter and quit setting mode to normal display mode.Rotate potentiometer clockwise: Increase the setting value.Rotate potentiometer counterclockwise:Decrease the setting value.STOP pads inside:It is used to connect to an external switch button to turn ON/OFF output if user need control output by another button or controller.

Tags: DC Motor Speed Controller, PWM Motor Speed Controller, Adjustable Speed Regulator, Motor Speed Controller 150W, Rotary Encoder Motor Speed Controller, PWM Signal Generator, DC Motor Governor, Variable Frequency Motor Controller, Stepless Speed Controller, Digital Motor Speed Controller
