Mini 24V 5A 90W PWM 12V DC Motor Speed Controller Module DC-DC 4.5V-35V Adjustable Speed Regulator Control Governor Switch

Mini 24V 5A 90W PWM 12V DC Motor Speed Controller Module DC-DC 4.5V-35V Adjustable Speed Regulator Control Governor Switch

Product Code: MM29552
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.

*Test before shipping.

*USA and Canada Estimated Delivery Time: 6-24 days(trackable),----- We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $150, we will use Expedited Shipping service for free.

*We make every effort to provide customers with satisfactory service.any question,please feel free to contact me.

*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.

Description

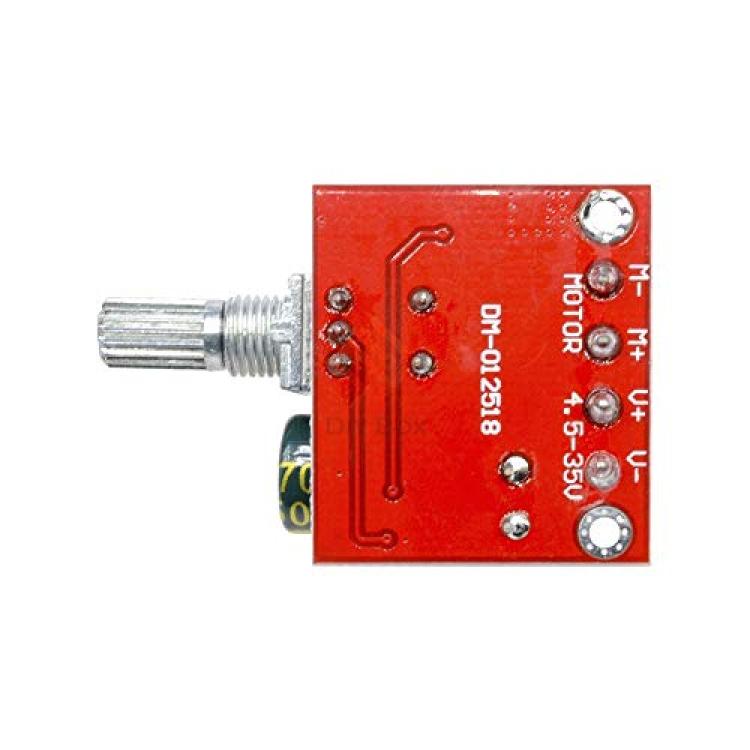

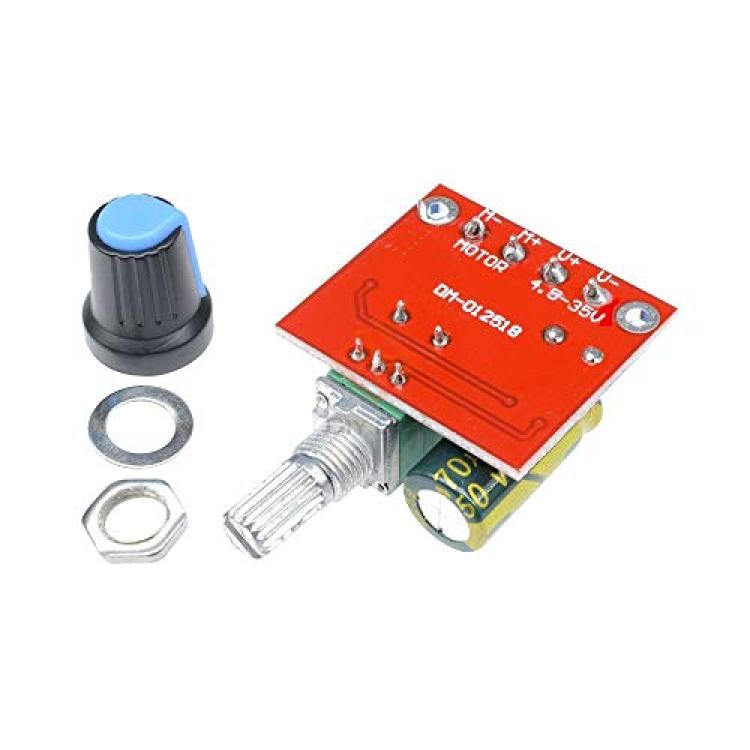

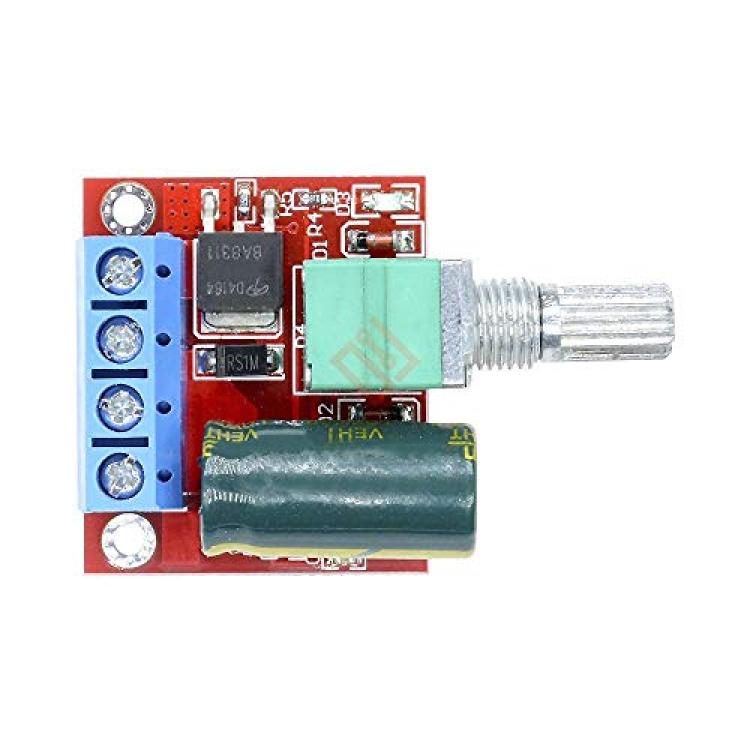

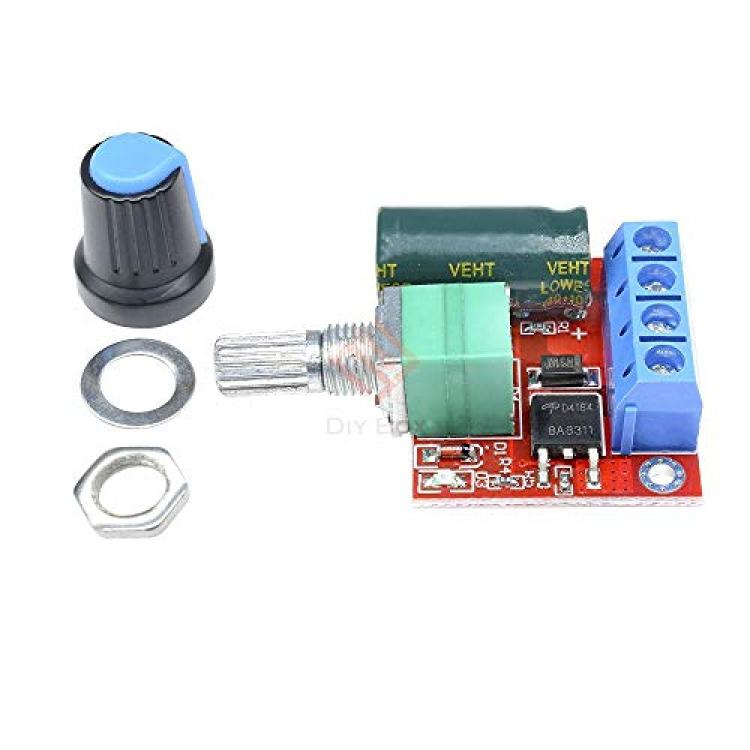

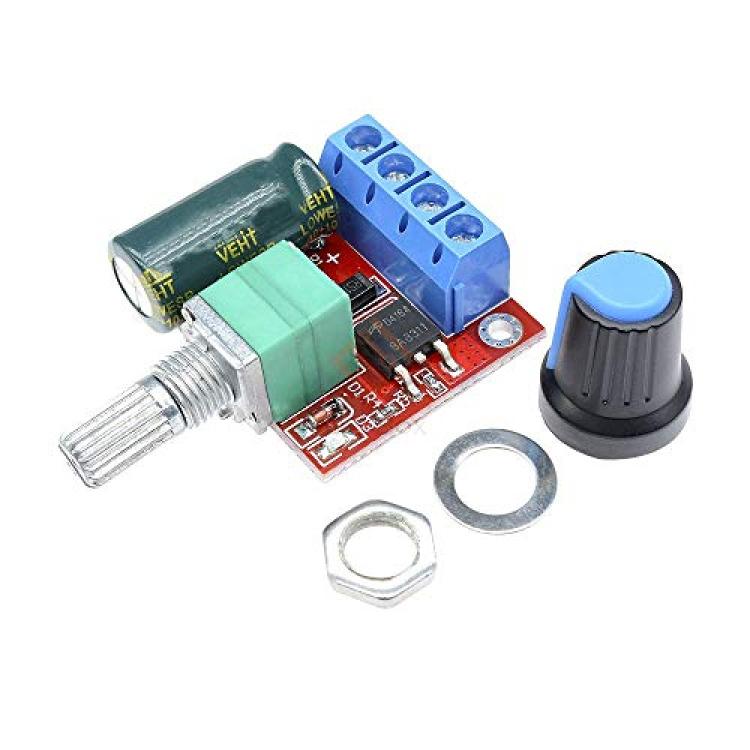

Mini DC-DC 4.5V-35V 5A 90W PWM DC Motor Speed Controller Module Speed Regulator Control Adjust Adjustable Board Switch 12V 24V

Buyers Show

Specifications:

Operating voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz
Size: 30mm x 26mm x 14mm (Without Handle)

Precautions:

DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!
DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.

Package Included:

1 x PWM DC Motor Speed Controller
