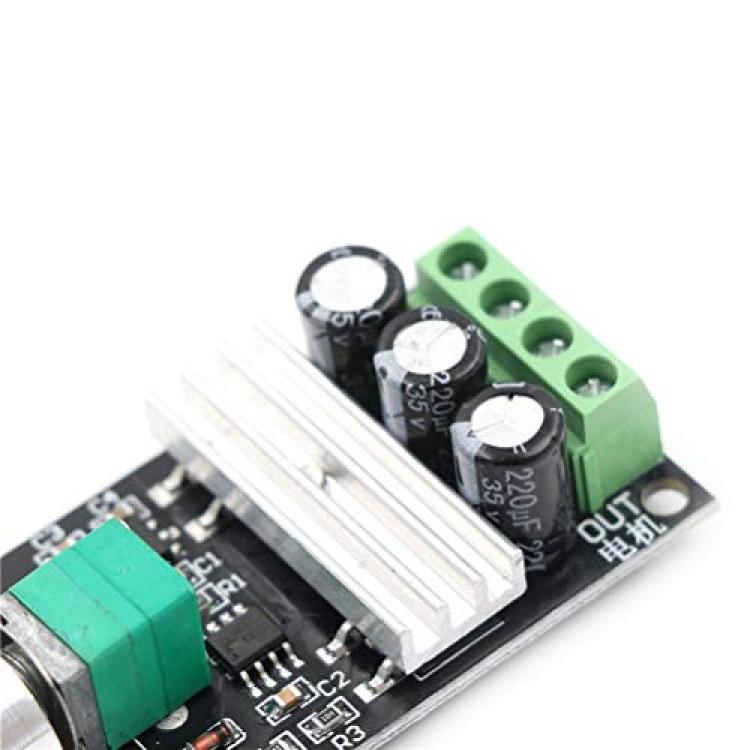

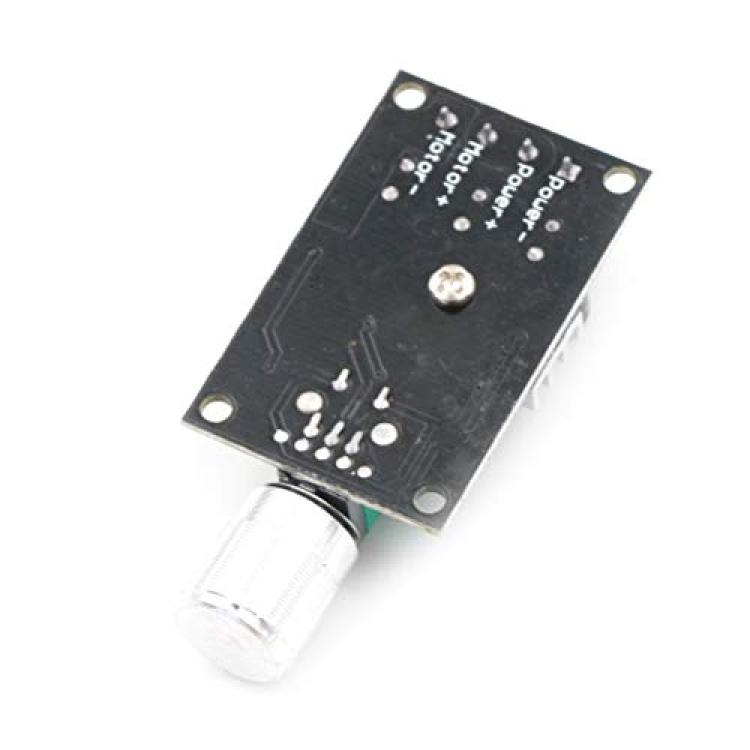

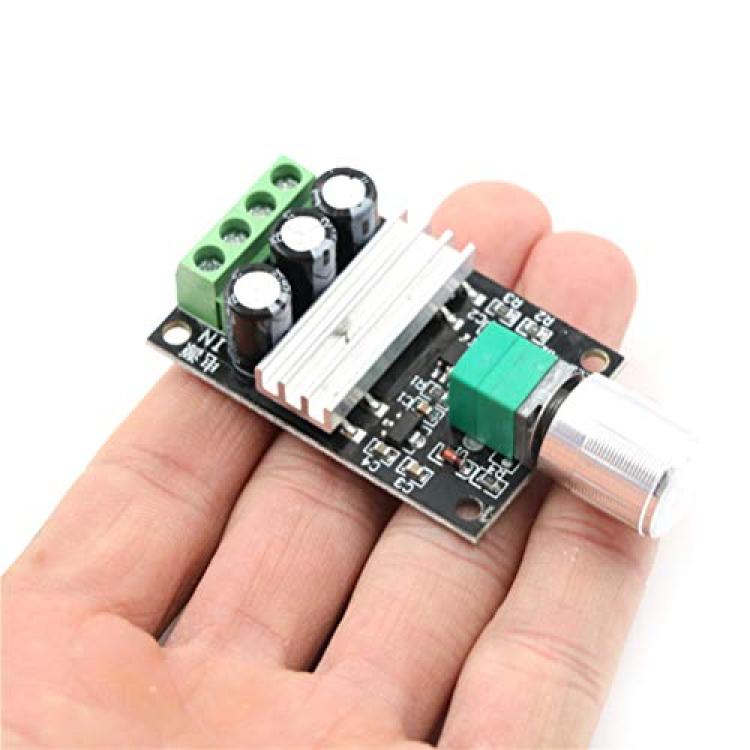

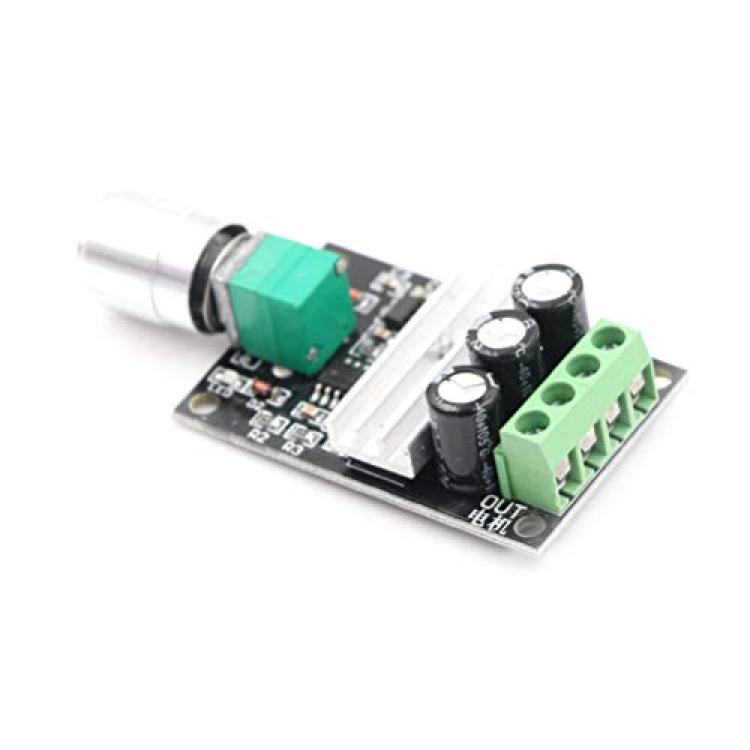

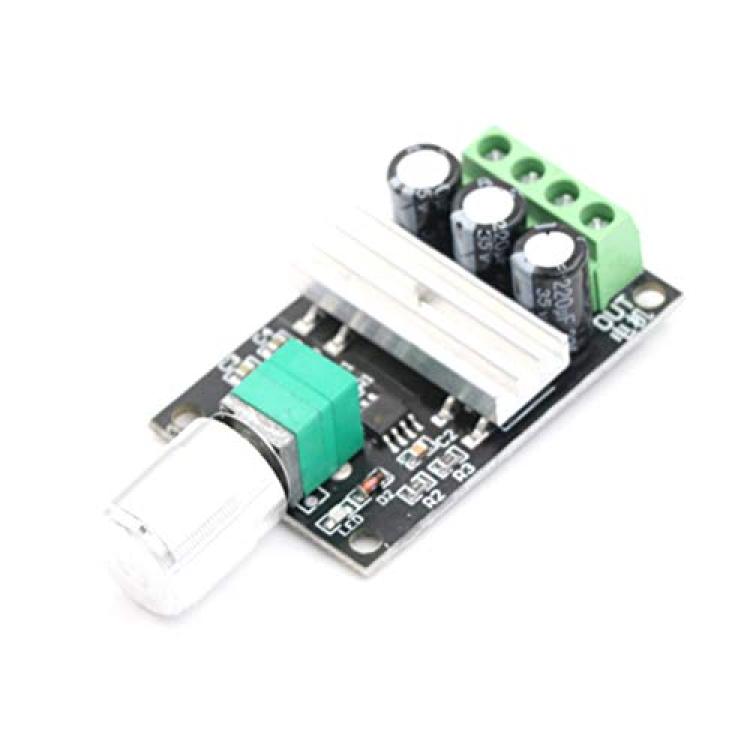

1 x DC 6V 12V 24V 28VDC 3A 80W PWM Motor Speed Controller Regulator Adjustable Variable Speed Control with Potentiometer Switch
Availability: Pre-Order, Inquiry Price
About this product
*The product quality is good.
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
*USA and Canada Estimated Delivery Time: 6-24 days(trackable),----- We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $150, we will use Expedited Shipping service for free.
*any question,please feel free to contact me.
*We make every effort to provide customers with satisfactory service.
Description
- Input supply voltage:6V-28VDC
- The maximum output power: 80W
- The maximum continuous output current :3A
- Duty Cycle adjustable:5%-100%
-Size: (L*W) 5cm*3.2cm
Quantity:1PC
Operating instruction:
1. Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
2. Connect a voltage of 10V-36V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits.
3. You can now control the speed of the motor through potentiometer.
Package included:
1 x DC 6V - 28V 3A PWM Motor Speed Variable Regulator Controller Switch
