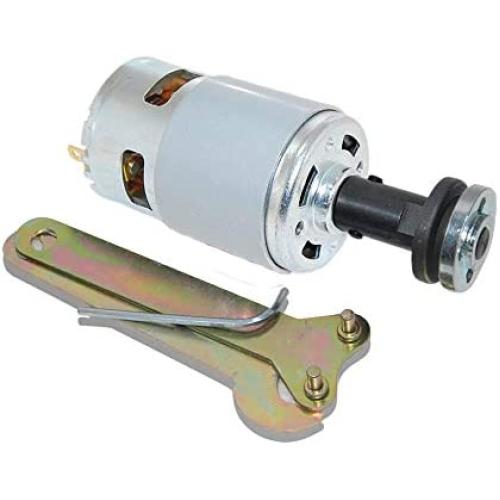

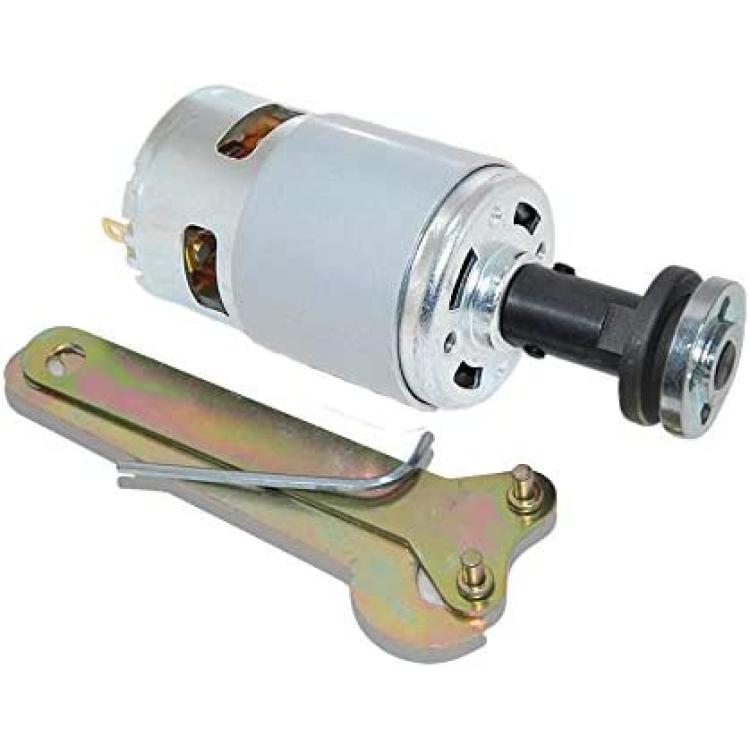

775 DC Motor 12V/24V Gear Motor Double Ball Bearing Large Torque With M10 Saw Balde Connecting Rod for DIY Parts
About this product
*1.This is a DIY combination of motor and saw balde connecting rod， can be used with a saw blade to become a mini saw.
*2.Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm.
*3.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.
*4.Application:Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw.
*5. The device is suitable for saw blades with 16 mm mounting holes (inside diameter).
Description

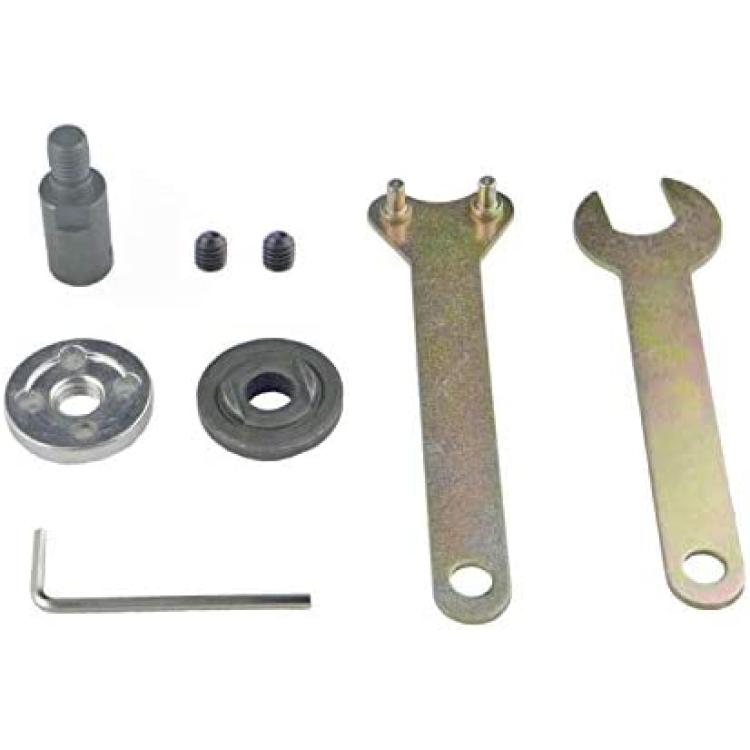

Voltage: 12-24V DCSpeed: 10000-20000RPMStarting current: 4-5APower: 100W-200WMotor Body Diameter: 42mmMotor Body Length: 66.5mmShaft Length: 16mmShaft Diameter: 5mmModel : M10?Name: M10 Saw Blade Connecting Rod Set;Bottom Hole Diameter: 5mm;Length:42mm;
