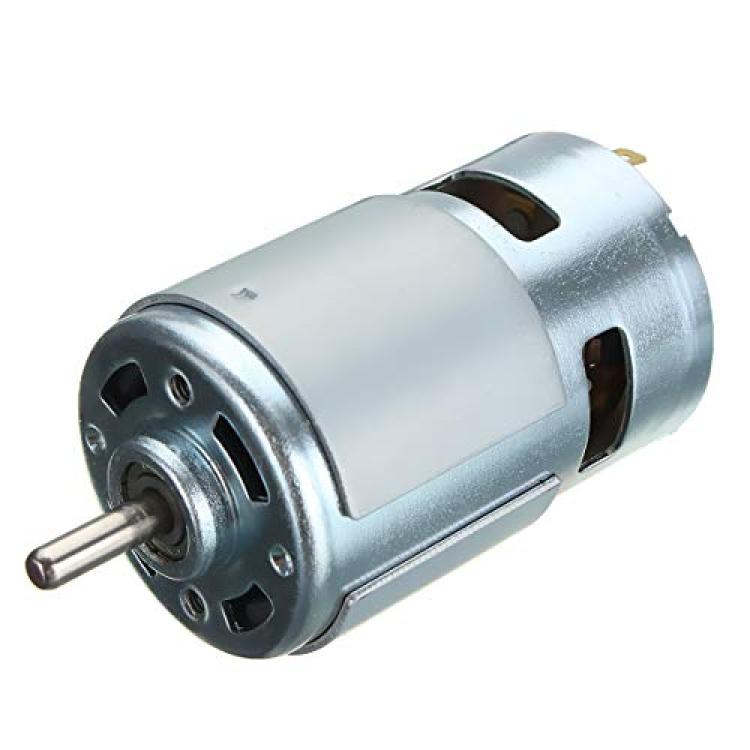

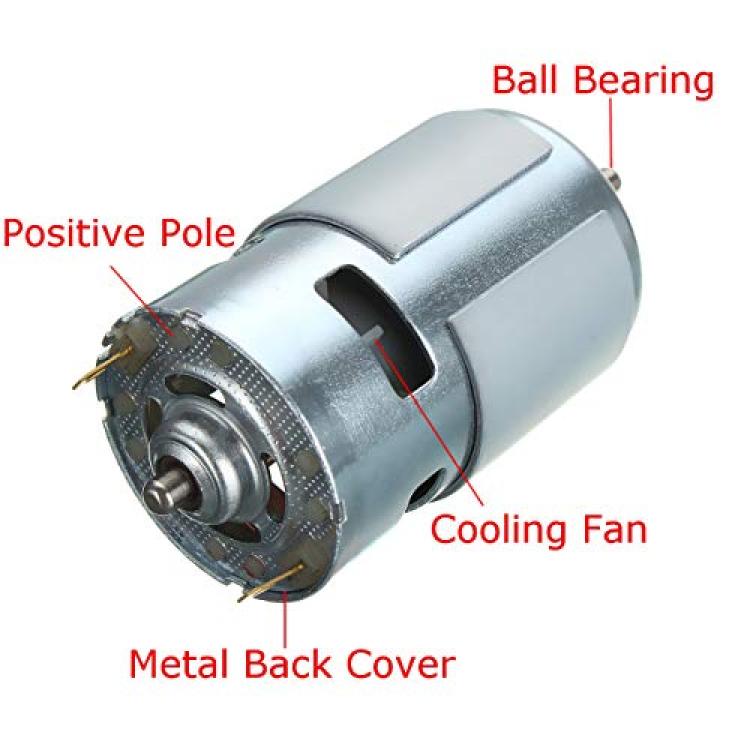

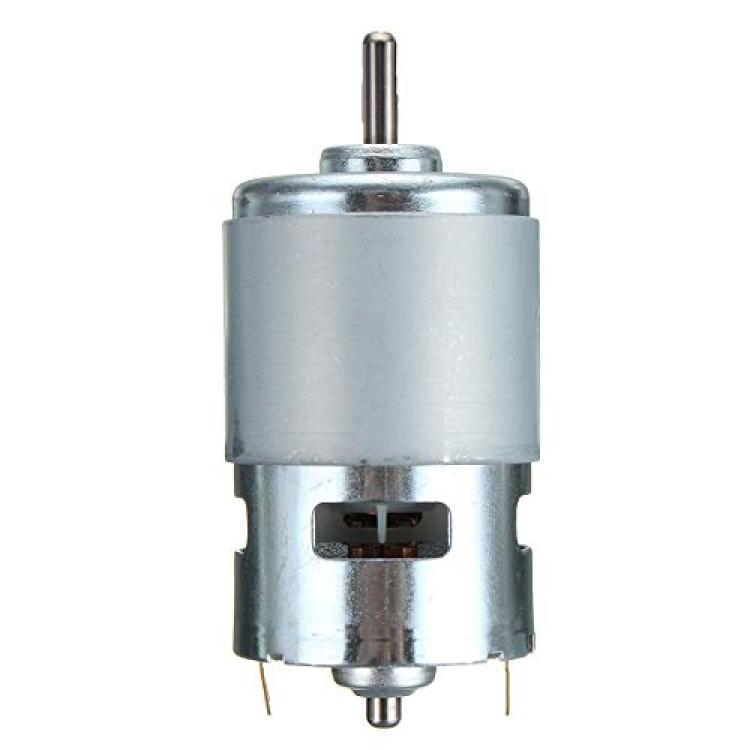

775 High Power DC Motor, DC 12V-24V 12000 RPM Large Torque Motor Ball Bearing Tools for DIY Driver Parts
Availability: Pre-Order, Inquiry Price
About this product
*☞ The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life
*☞ This DC motor has the characteristic of high speed, and small size
*☞ Select high-quality raw materials, good gloss, simple and generous

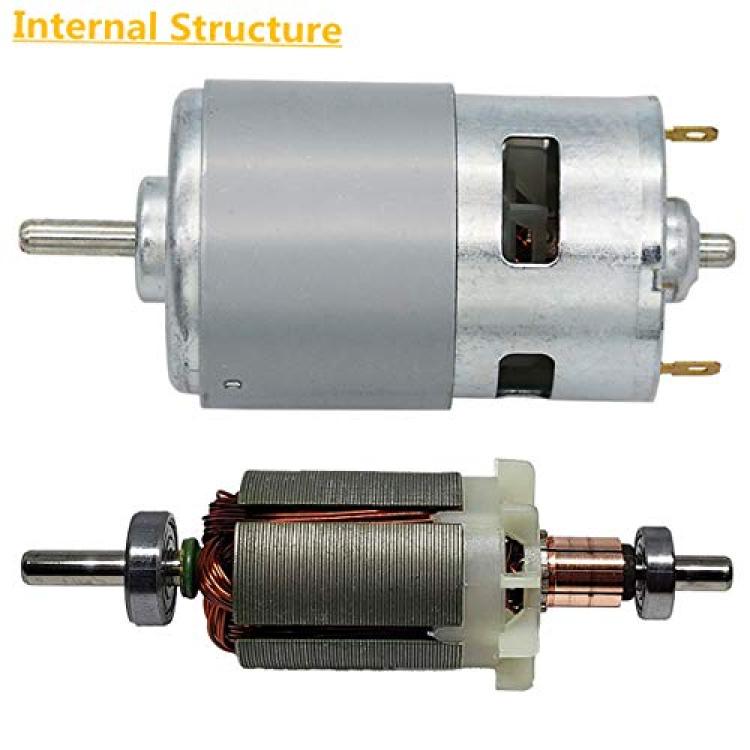

*☞ This motor is adopted of pure copper wire coil, with low heat and low loss
*☞ Suitable for electric tools, electric screwdriver, electric fan toys, juice machine, paper shredder, vacuum cleaner
Description
The following are the measured parameters of the motor for reference:
  Rated voltage: 12V
  No-load current: 1.2A
  Stall current: 3.25A
  No-load speed: 12000 rpm
  Motor step height: 4.5mm
  Motor step diameter: 17.5mm
Â
  Shaft length: 16mm (shaft length above step level)
  Shaft diameter: 5mm shaft
Â

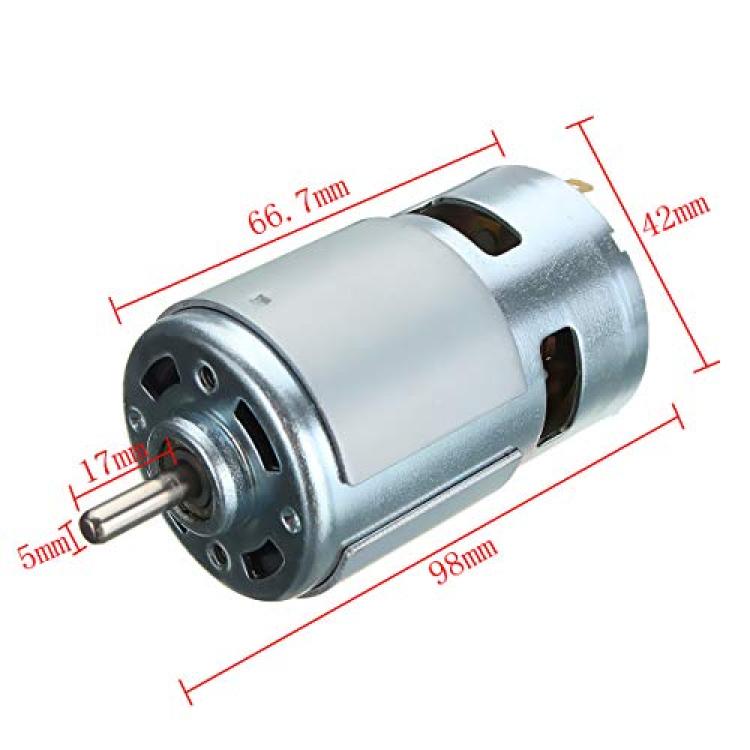

  Motor diameter: 42mm
  Motor length: 66.5mm
  Step height of motor tail: about 7mm
  Length of shaft out of motor tail: about 4.5mm
   Mounting hole pitch: about 29mm
   Mounting hole diameter: M4 screw
   Motor weight: 350g
