DC 12V-24V 10000RPM 775 Motor Ball Bearing Large Torque High Power Low Noise Brushed DC Motor Driver for Electrical Tools DIY
Availability: Pre-Order, Inquiry Price
About this product

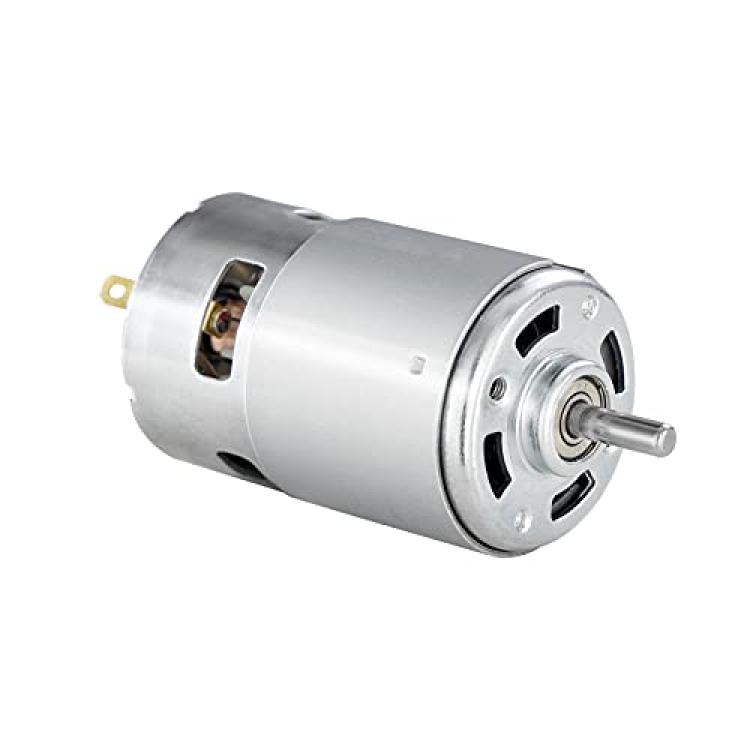

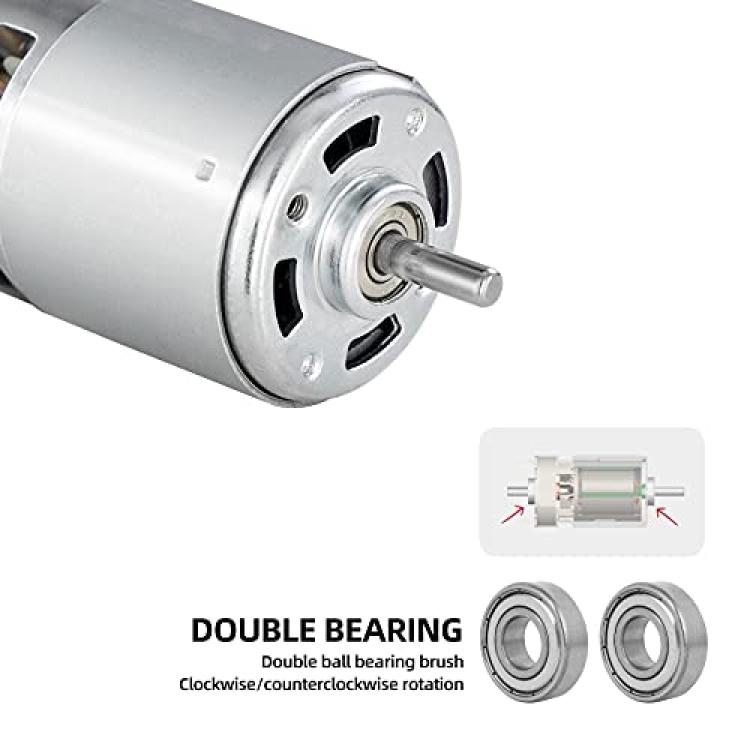

*DC 12V 24V round shaft 775 electric motor, with accuracy ball bearing
*Type: Micro DC Motor; Rated voltage: 12V; No-Load Speed: 11000 RPM; Rated voltage: 24V; No-Load Speed: 21000 RPM
*Shaft Diameter: 5 mm; Shaft length: 17 mm
*Note: The motor starting current needs to be 10A

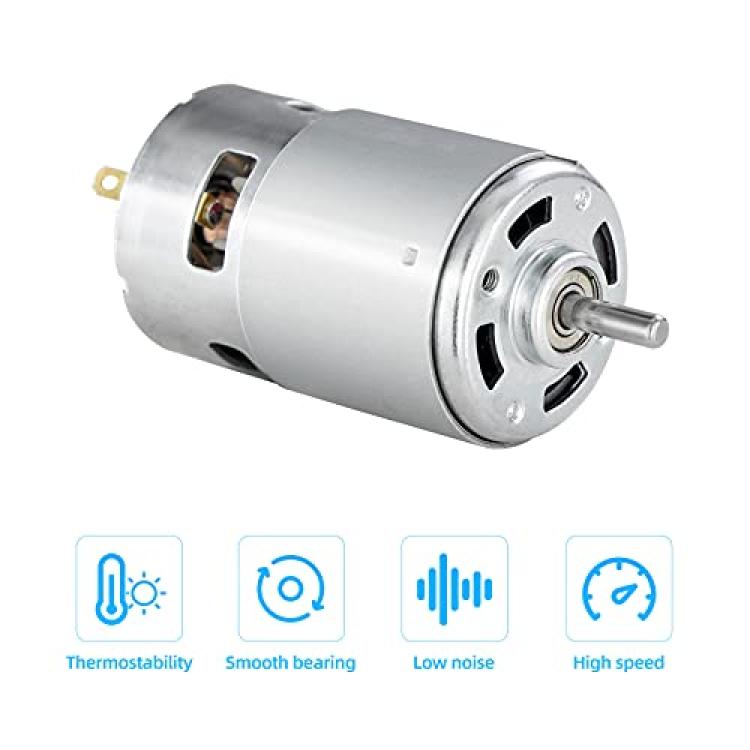

*With copper wire production, durable for using. Easy to wire and install. Durable construction for long-lasting performance. Wide applied to electric tools, electric fans, electric cleaners, etc. Small size but large torque
Description

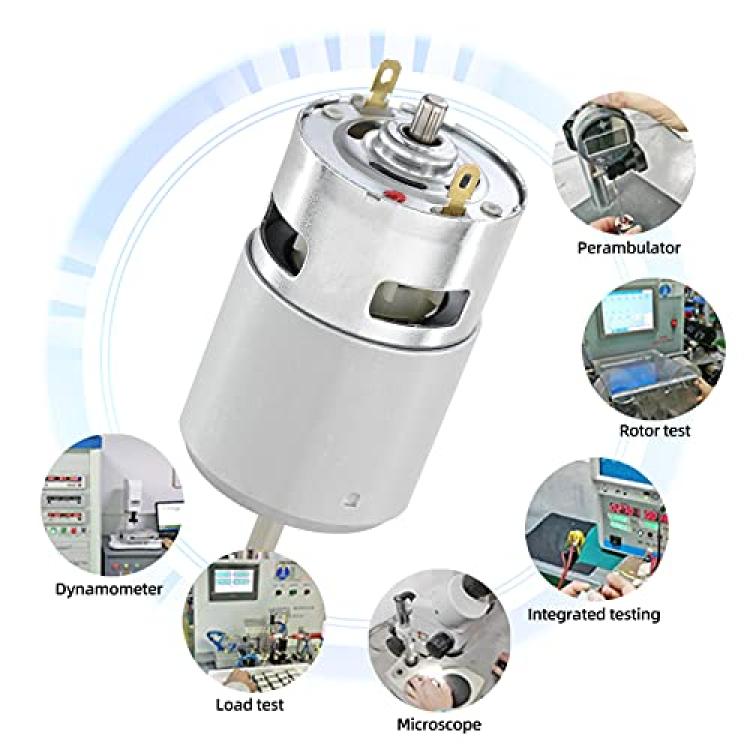

? The following are the measured parameters of the motor for reference:
 Rated voltage: 12V ~ 24V
 Rated current: 4A, 10A, 12A (recommended starting current 10A)
 Rated speed: about 12V/24V----11000RPM/21000RPM
 Motor step height: 4.5mm
 Motor step diameter: 17.5mm
 Shaft length: 16mm (shaft length above step level)
 Shaft diameter: 5mm shaft

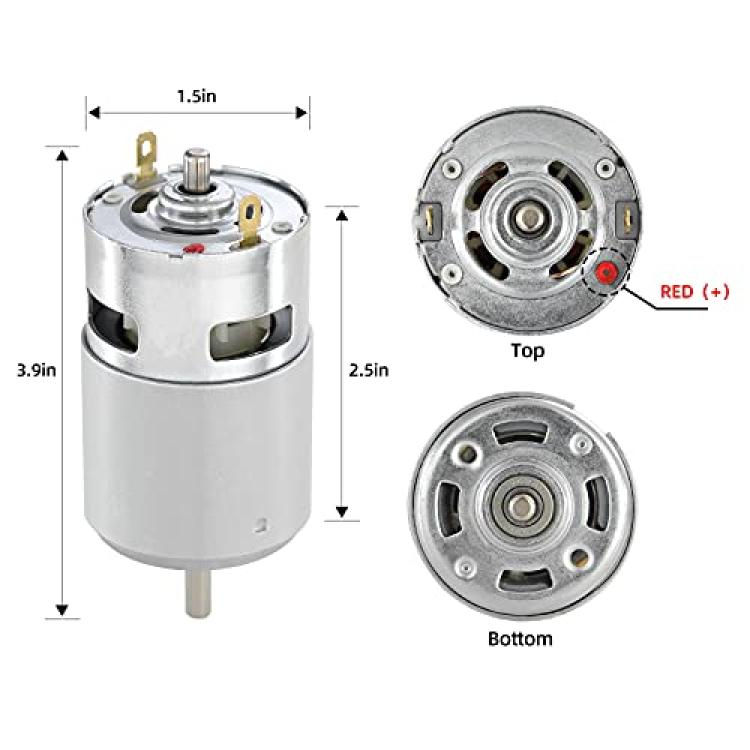

 Motor diameter: 42mm
 Motor length: 66.5mm
 Step height of motor tail: about 7mm
 Length of shaft out of motor tail: about 4.5mm
 Mounting hole pitch: about 29mm
 Mounting hole diameter: M4 screw
 Motor weight: about 700g(2 x 775 Motor --2x Motor bracket)
 ? Package included?
1 x Phillips screwdriver
 2 x 775 Motor
2x Motor bracket
4x Fixing screw
